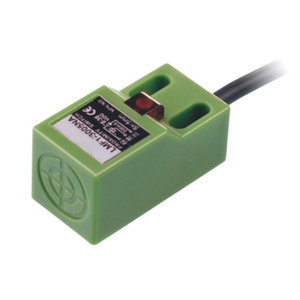

LMF1

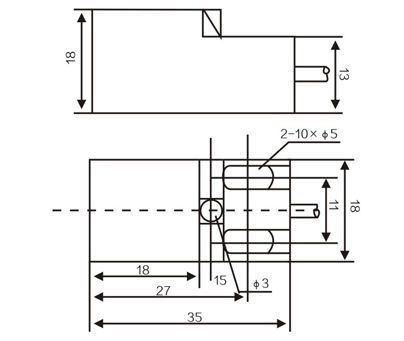

OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE 5mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF1-3025NA |
| NC | LMF1-3025NB | |||
| NO+NC | ||||
| PNP | NO | LMF1-3025PA | ||
| NC | LMF1-3025PB | |||
| NO+NC | ||||
two wire system | NO | LMF1-3025LA | ||
| NC | LMF1-3025LB | |||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | LMF1-2025A | ||
| NC | LMF1-2025B | |||
| NO+NC | ||||
| Relay output | ||||
| Control output | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltage dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 20X20X1(A3 iron) | |||
| Repeated precision | 0.02 | |||
| DC/AC | 400Hz/25Hz | |||
| Working environment temperature | -25℃～+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | SN04-N | |||
