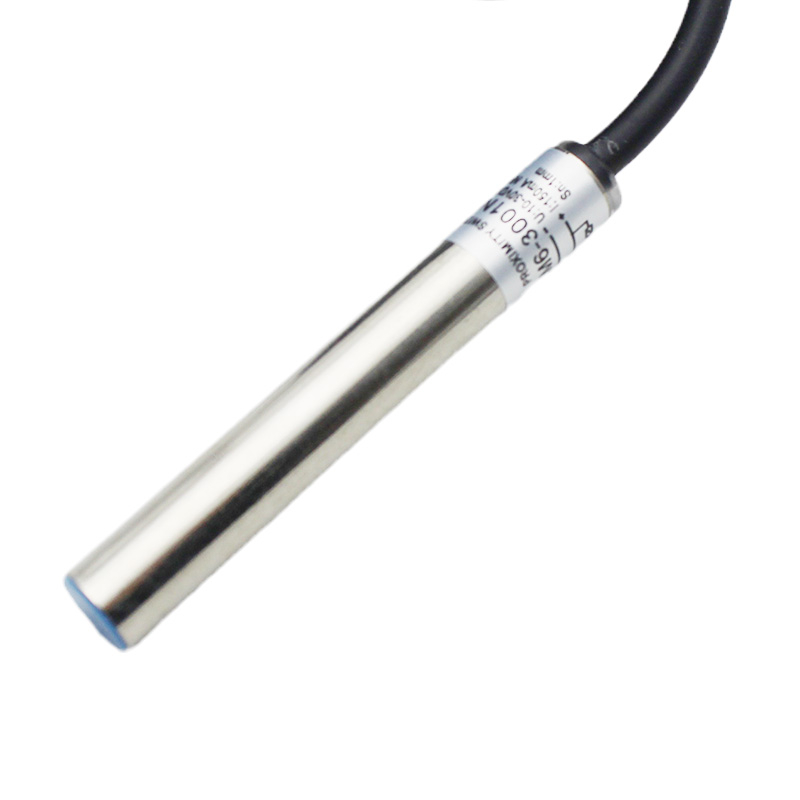

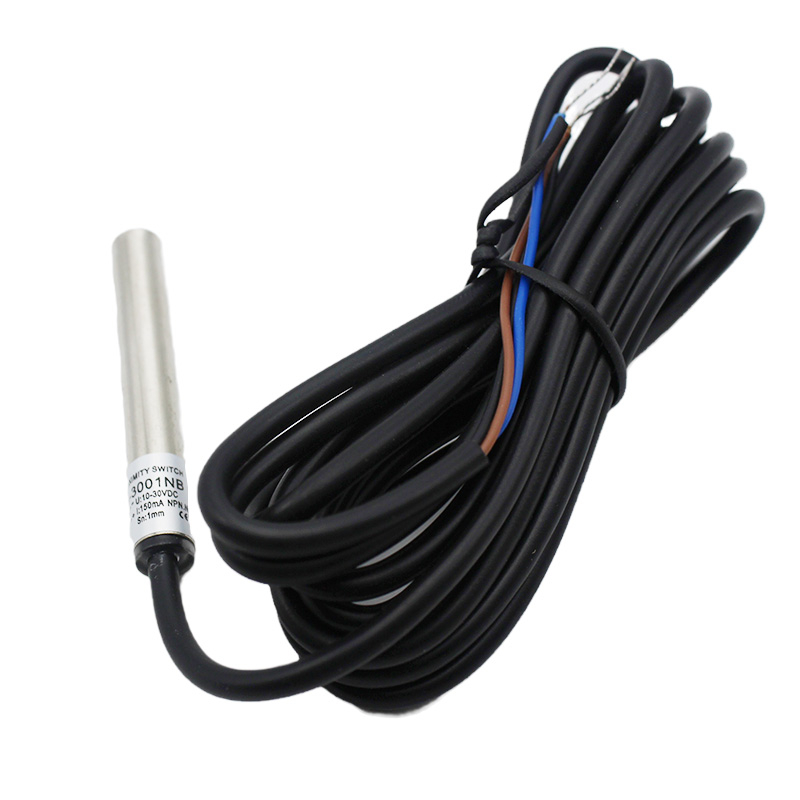

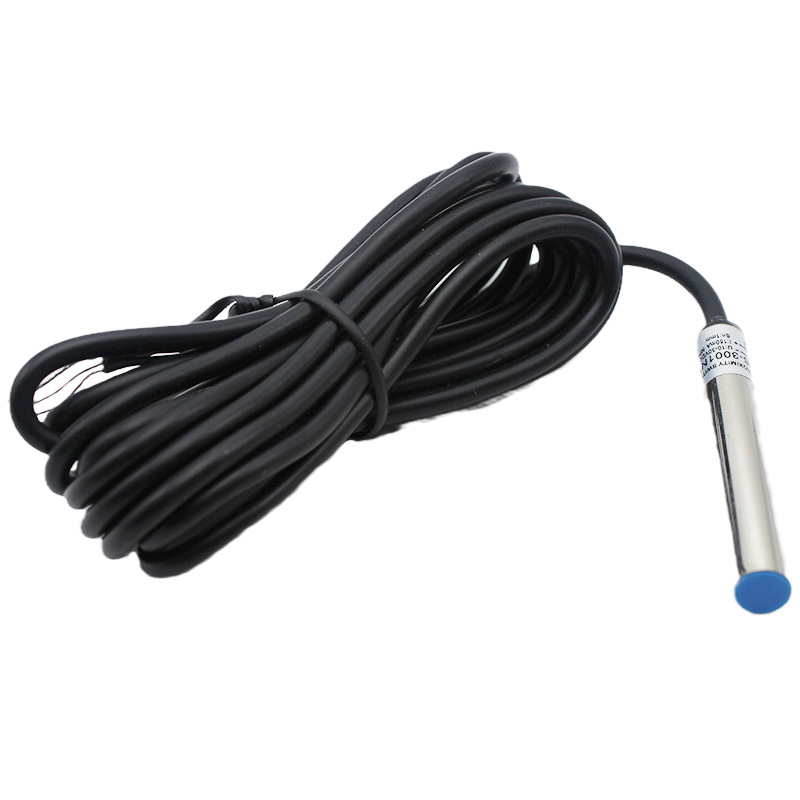

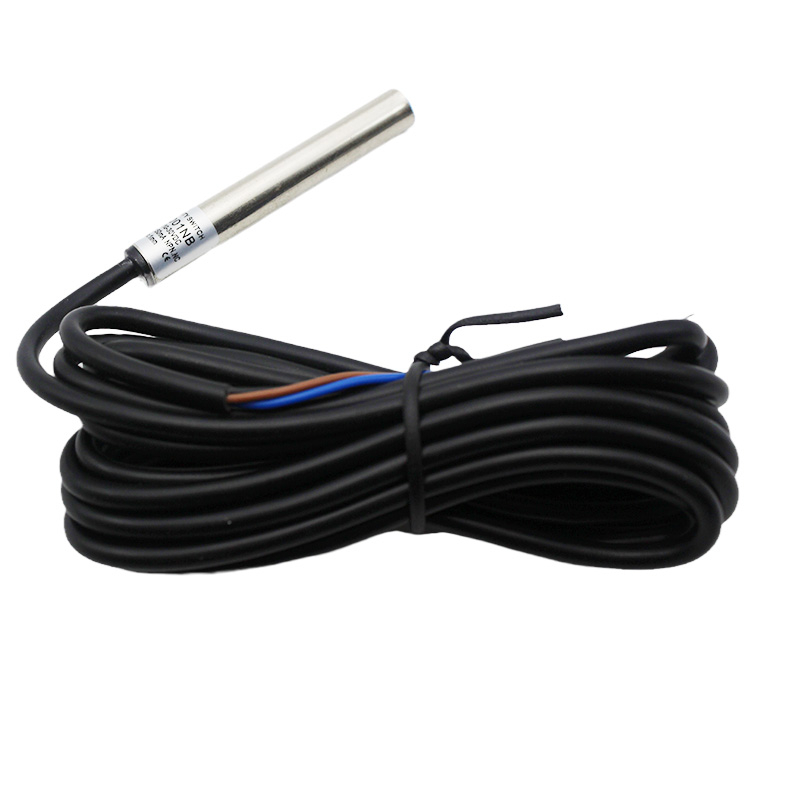

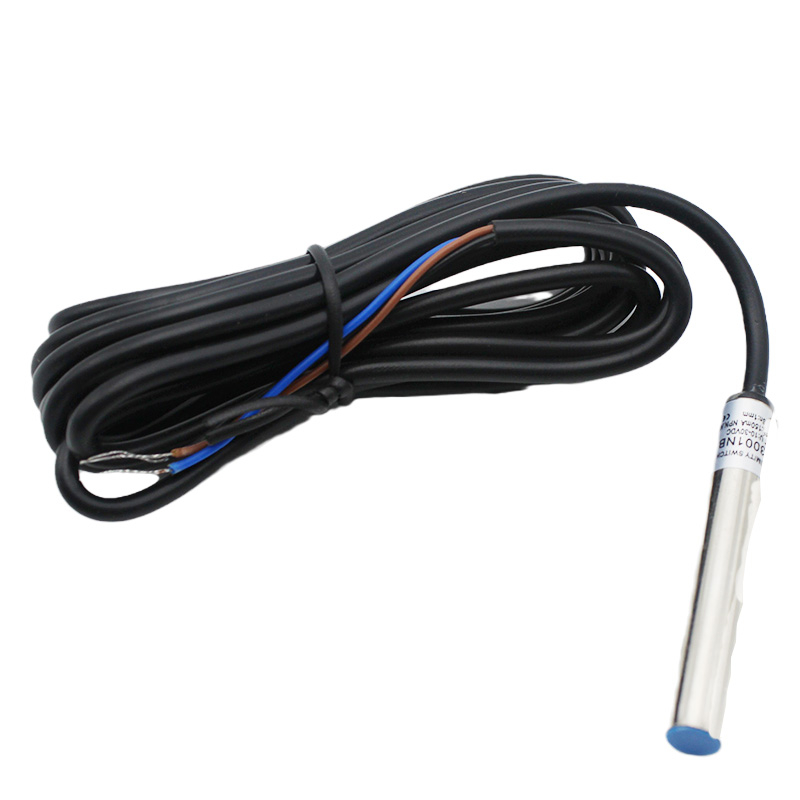

LM6-3001NB NPN NC Flash NPN Inductive Proximity Switch Small Distance Sensor Distance detector

Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life
Availability:
Inquire Add to Basket

  • LM6-3001NB

                LM6-3001NB NPN NC Flash NPN Inductive Proximity Switch Small Distance Sensor Distance       detector

Main Features

  • compact volume

  • high precision repeated location

  • diversified exterior structures

  • good performance of anti-interference

  • many output forms

  • high on-off frequency

  • wide voltage range

  • dust proof, vibtation proof, water proof and oil proof

  • with short-circuit protection and inverted connecting protection

  • long service life

 Technical Specifications

Structural category Connector type

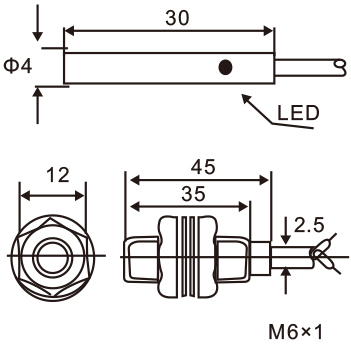

Overall dimensions LM5
Outward Appearance code LM6
DETECTION DISTANCE 1mm
Flush

10-30 VDC

 NPN NC LM6-3001NB
Output current 200mA
Output voltage drop DC/AC DC≤3V  AC≤10V
Consumption current DC≤15mA AC≤10mA
Standard detected object 6*6*1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz
Working environment temperature –25℃~70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Insulation resistance 50MΩ
Shell material Metal
Protection grade IEC standard IP67
Altemative model at home and abroad
