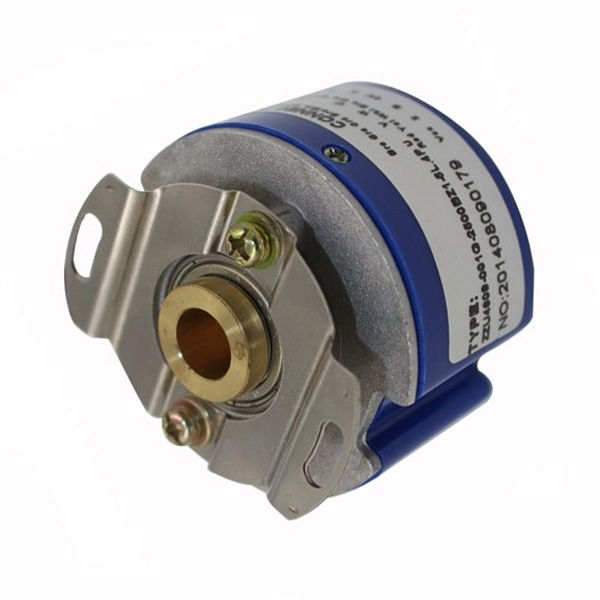

IHU4808

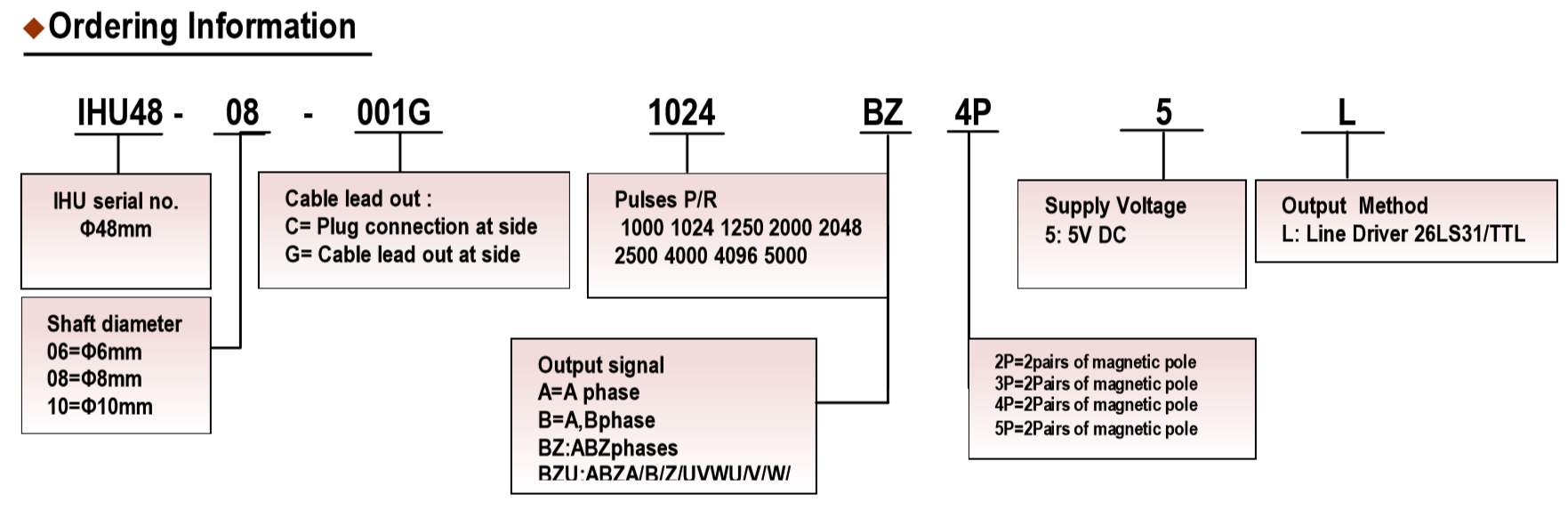

Note
1, Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V (±10%) | Max. response frequency is gated by max. rotationspeed |
| Max. Response Frequency | 200 kHz | |
| Max. Rotation Speed (*1) | 4800 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns (Line Driver) | |
| Vibration | 5G | |
| Shock | 100G | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| IP Rating | IP40 |
Connection Table
Signal | A | B | Z | A/ | B/ | Z/ | Vcc |
Color | Green | White | Yellow | Green/Black | White/Black | Yellow/Black | Red |
| Signal | U | V | W | U/ | V/ | W/ | GN D |
| Color | Brown | Gray | Orange | Brown/Black | Gray/Black | Orange/Black | Black |

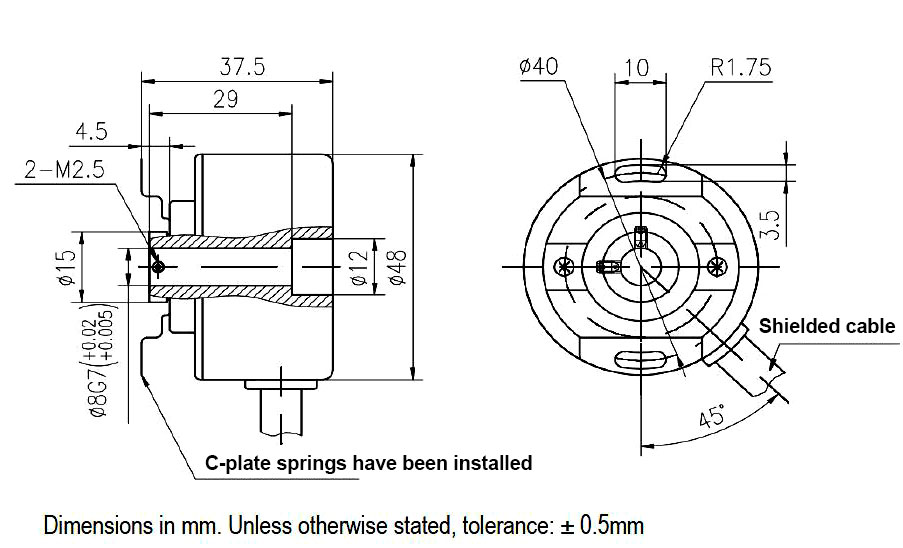

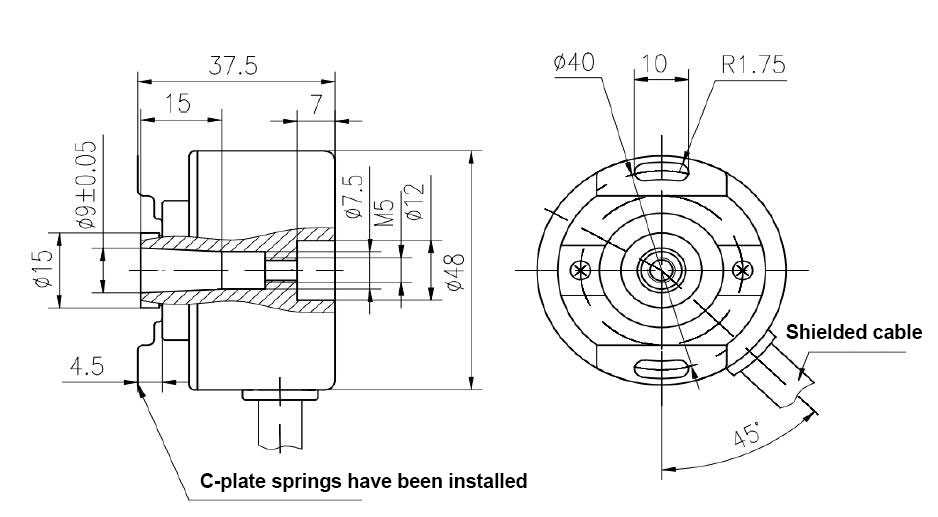

Dimension

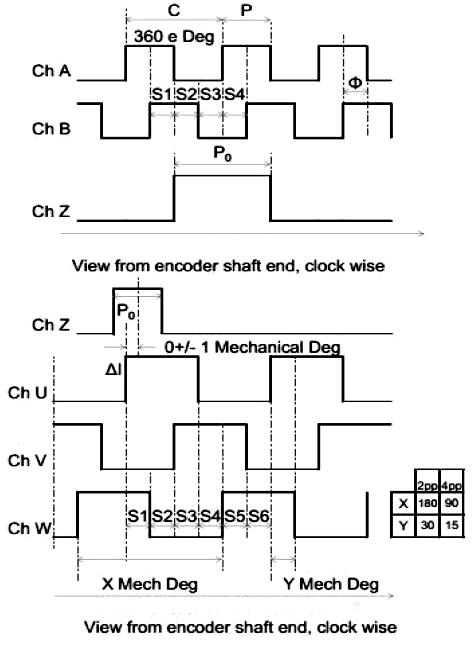

◆Output Waveform
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V (±10%) | Max. response frequency is gated by max. rotationspeed |
| Max. Response Frequency | 200 kHz | |
| Max. Rotation Speed (*1) | 4800 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns (Line Driver) | |
| Vibration | 5G | |
| Shock | 100G | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| IP Rating | IP40 |
Connection Table
Signal | A | B | Z | A/ | B/ | Z/ | Vcc |
Color | Green | White | Yellow | Green/Black | White/Black | Yellow/Black | Red |
| Signal | U | V | W | U/ | V/ | W/ | GN D |
| Color | Brown | Gray | Orange | Brown/Black | Gray/Black | Orange/Black | Black |

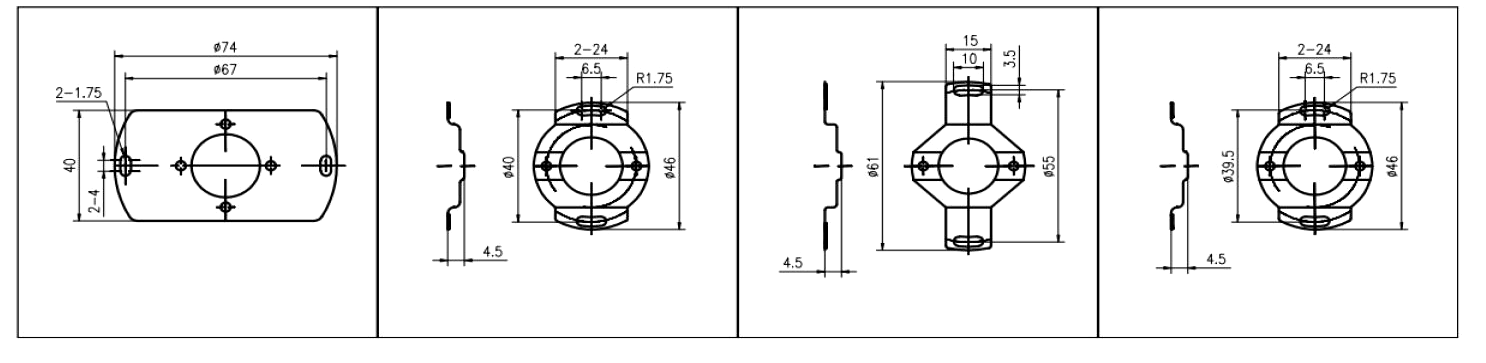

Dimension
◆Output Waveform
