JS22F-11E/W/12V/S

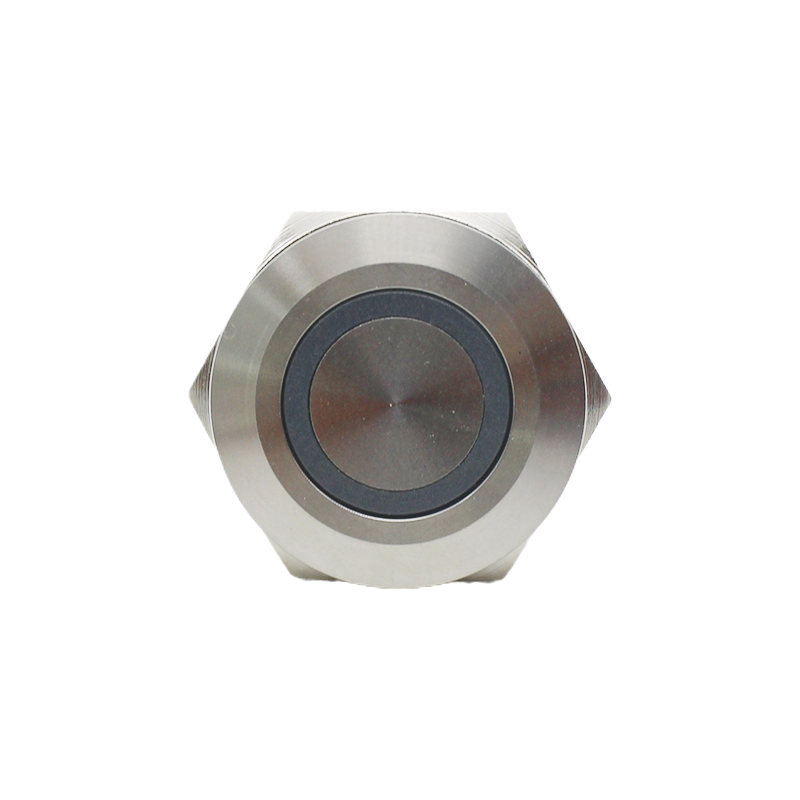

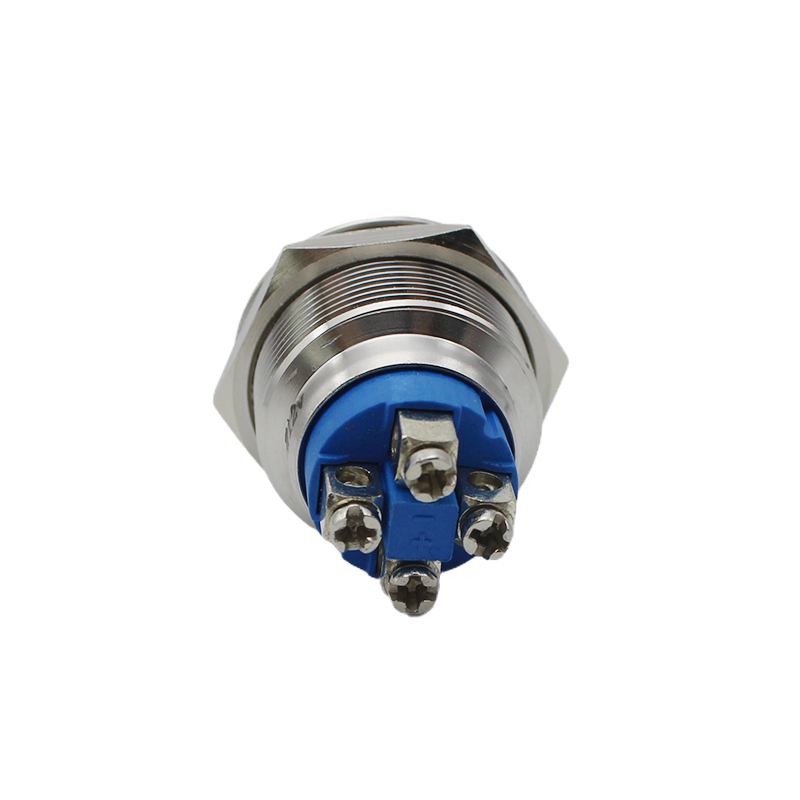

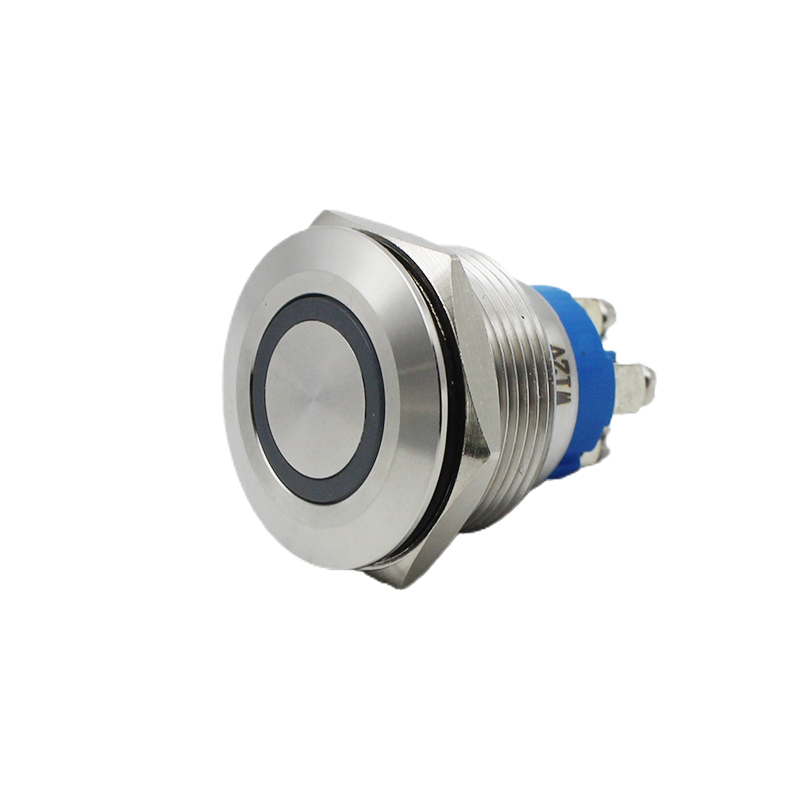

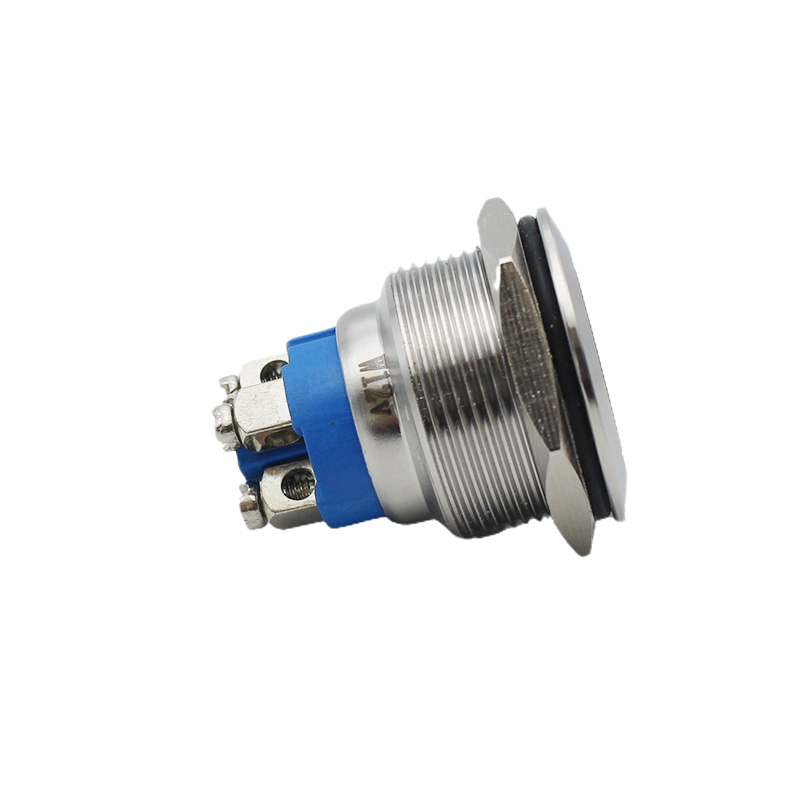

JS22F-11EW12VS screw 22mm flat head momentary push button switch DC12V metal push button with white ring lamp push switch
Features:
22mm diameter
Switch Rating:5A/250VAC
Contact Configuration:1NO1NC
Operation Type:Momentary/Alternate
The Crust Material:stainless Steel
Ring lluminated
IP Degree:IP40/1P67
| Specification | JS22F-E | |
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(2.8x0.5mm) | |
| Switching | NO.2 | |
| Max.Switch Rating | Ith:5A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃-+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 50, 000cycles | |
| Panel Thickness | 1~8mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | About 5.5N | |
| Operation Distance | About 2.5mm | |
| IP Degree | IP65 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Steel | |
| Base | PA | |
| LED Specl | Type | Ring Illuminated(LED) |
| Rated voltage | 6V/12V/24V/36V/110V/220V | |
| Color | R G Y O B W | |
| Life | 40000 hours | |

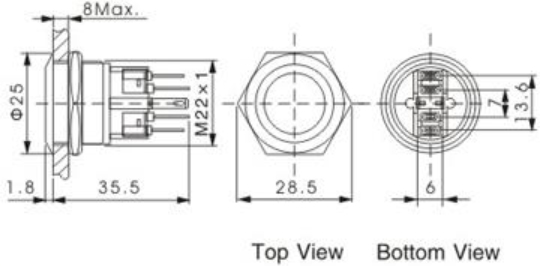

Dimemsions:
