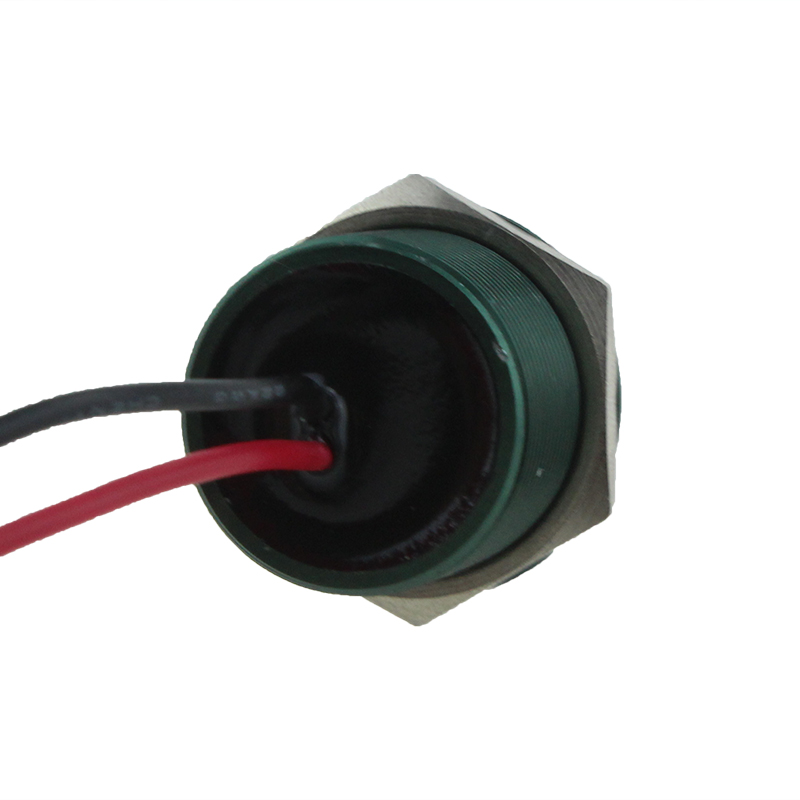

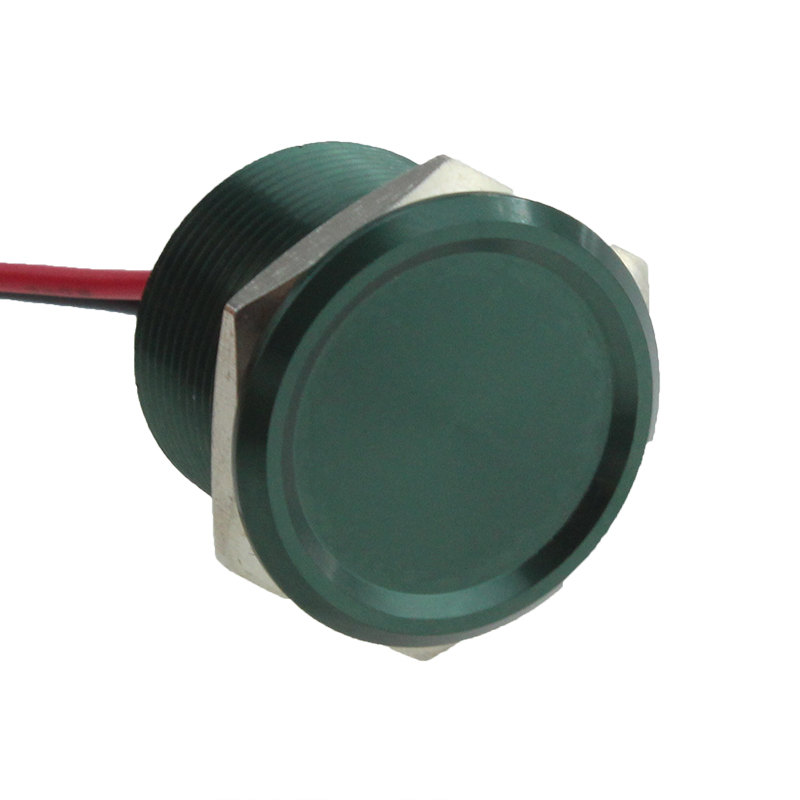

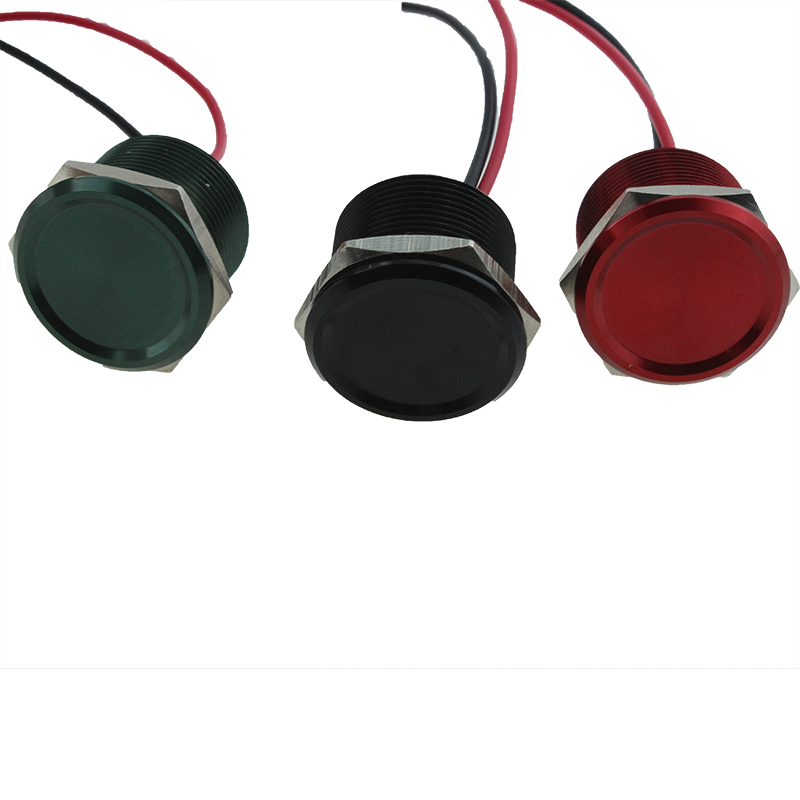

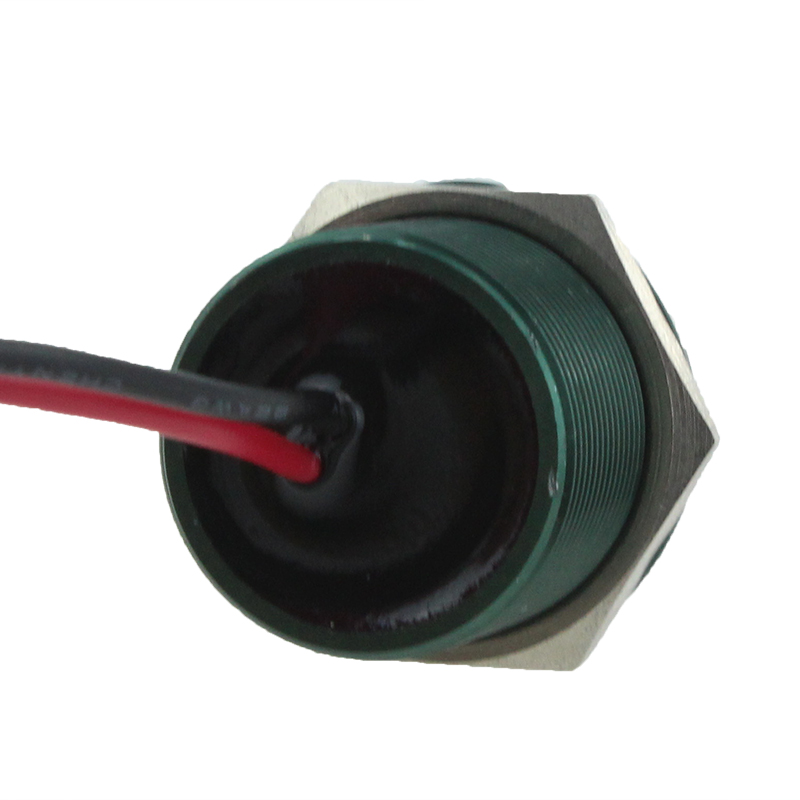

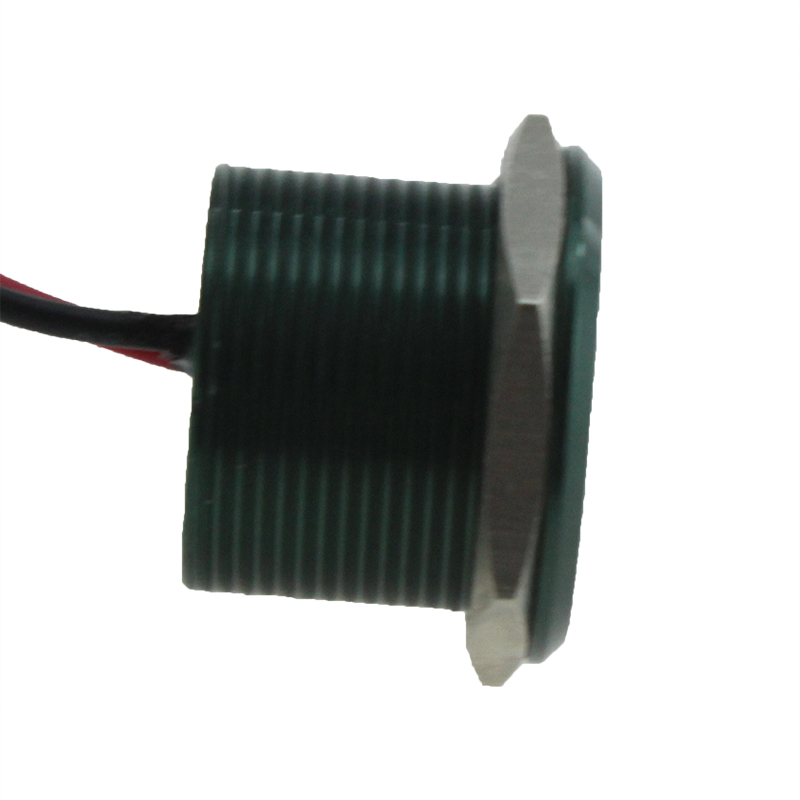

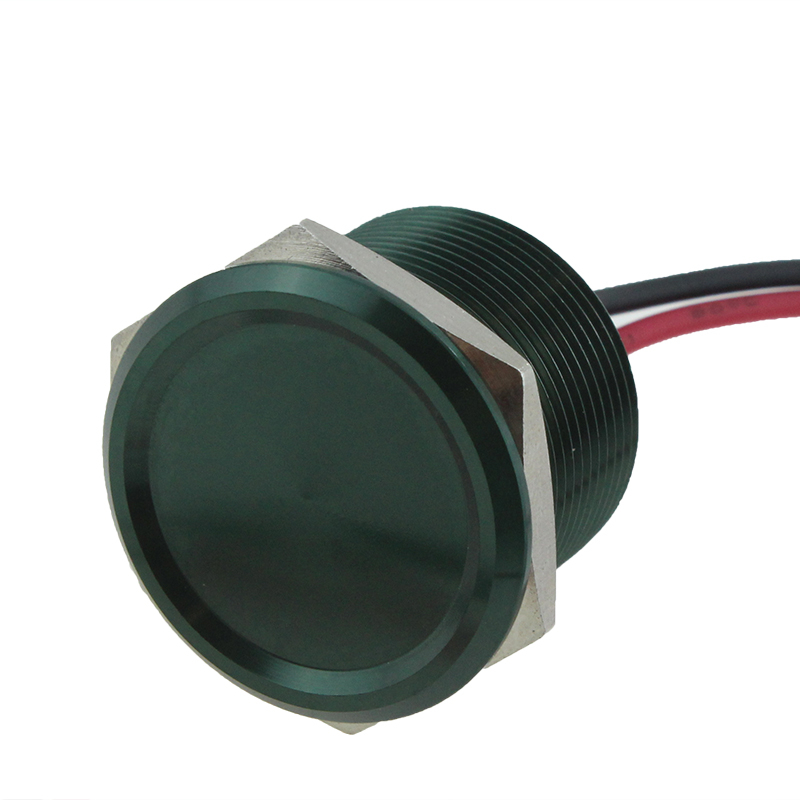

YD22-10G
Good price of 22mm push button piezo switch with high quality
Application scope：
Winning equipment Cleanroom interface
Access control system Household appliance
Medical equipment Electromechanical instrument
Industrial cabinet Elevator control system
Emergency call systems
| Working temperature | T:-40C-70°C |
| Storage temperature | T:-40C-70°C |
| Working humidity | 10%- 99% |
| Input voltage | 3-24V/DC |
| The input current | ≤100mA |
| Contact resistance | < 50mΩ |
| Pulse time | < 50MS |
| Working pressure | 3-8N |
| Protection Grade | IP68IEC529 |
| Operating life | >200000cycles |
| Material | Aluminum |
| The type of connection | 0.22Square wire(Line length can be customized) |
