XYK-117 Electronic Water Pressure Control Switch

Automatic Reset Single-Pole;single throw switch normally open or normally close Factory calibrated set point from 5 PSI to 650PSI High cycle life-Proven relability Custom engineered solutions Applications: Comperssors & Pumps,Hydraulics Pneumatics, Engine Controls Construction Equipment Agricultural Equipment
Availability:
Inquire Add to Basket

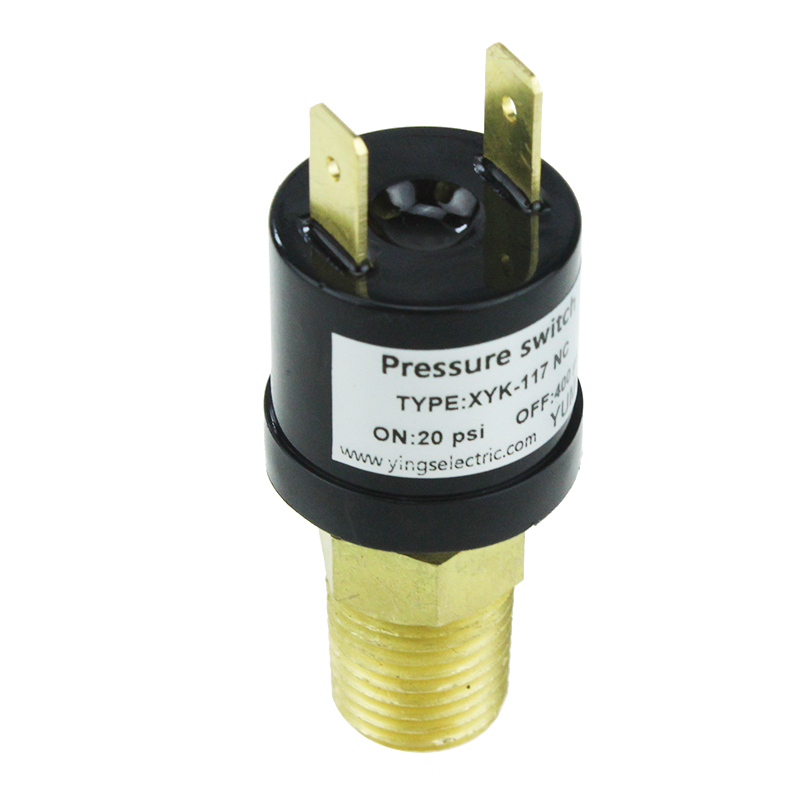

  • XYK-117 20-400psi

 XYK-117 electronic water pressure control switch

Product Description

Feature & Benfits
Automatic Reset
Single-Pole;single throw switch
normally open or normally close
Factory calibrated set point from 5 PSI to 650PSI High cycle life-Proven relability
Custom engineered solutions
Applications: Comperssors & Pumps,Hydraulics
                      Pneumatics, Engine Controls
                      Construction Equipment
                      Agricultural Equipment
Specifications
Model XYK-117
Set Point 5-650psi(Factory Calibrated)
Electric Rating  AC120/240V,375VA
120 VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA
Proof Pressure 700psi,others are optional
Temperature -20℃-90℃
Contact Material Ag alloy
Connection See the Order Ref
Contact Type SPST NO or NC
Terminal 6.3 mm Blade

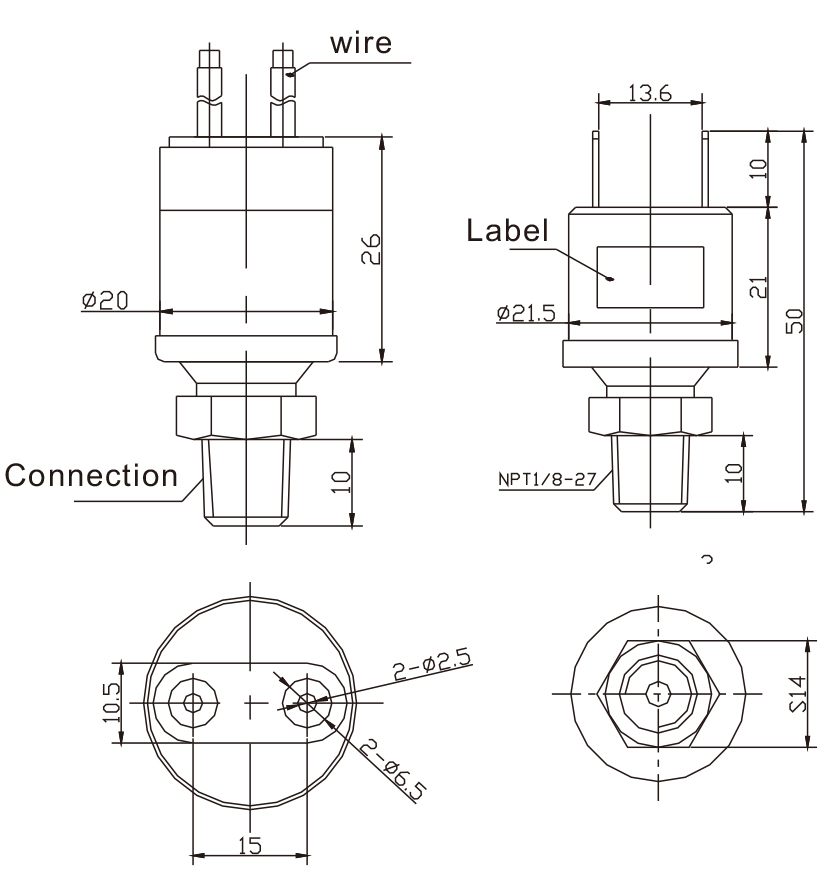

Outline Drawings (Dimension in mm)

XYK-117 pressure switch
