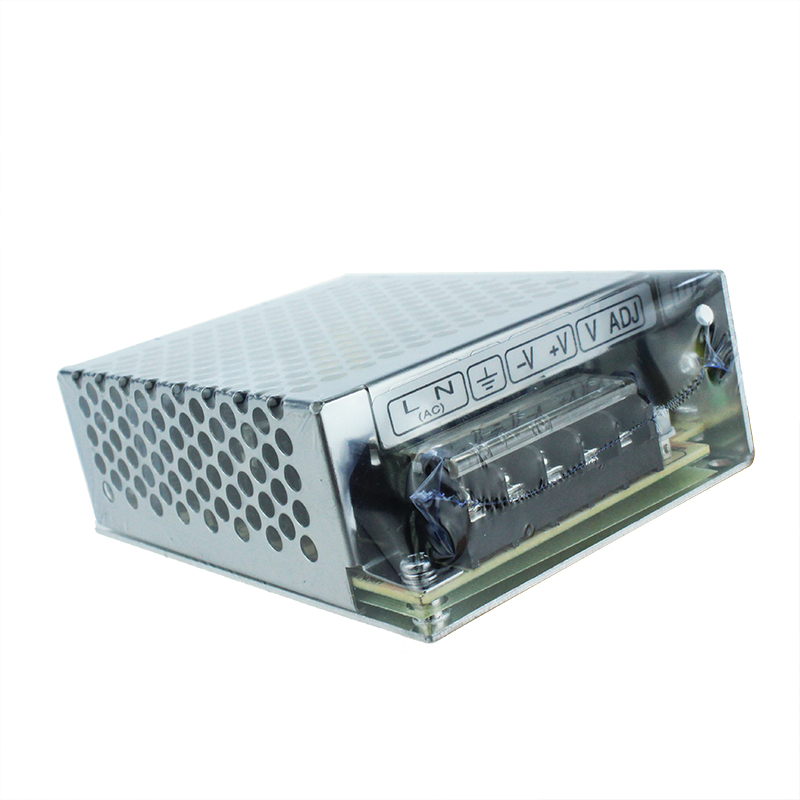

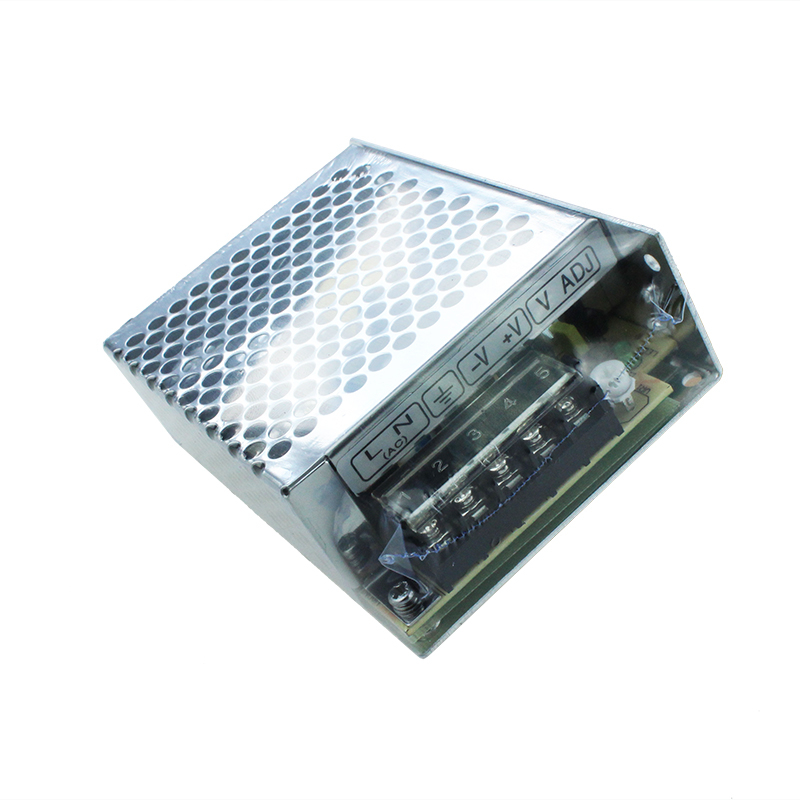

MS-50-24
Single output: power 50W
Input voltage: 85 ~ 264VAC 120 ~ 370VDC
General Specification
| Model | MS-50-5 | MS-50-12 | MS-50-15 | MS-15-24 |
| DC output voltage, current | 5V 0~ 10A | 12V 0~4.2A | 15V 0~3.4A | 24V 0~2.1A |
| Wave and noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 82% | 82% | 84% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 85~ 264VAC 120 ~ 370VDC 47 ~ 63Hz | |||
| Impact current | Cold start current 18A/115VAC 36A/230VAC | |||
| Overload protection | 105% ~ 150% cut off the output, automatic recovery | |||
| Over voltage protection | 115% ~ 135% shut down O/P voltage, re- power on to recover | |||
| Setup, rise, hold up time | 300ms, 50ms, 60ms/230VAC | |||
| Withstand voltage | I/P- -O/P: 1 .5kV I/P-FG:1 .5kV O/P- FG: 0.5kV 1minute | |||
| Isolation resistance | 1/P-O/P I/P-FG O/P- FG: 500VDC/100MQ | |||
| Working temperature | - 10%C~+50C | |||

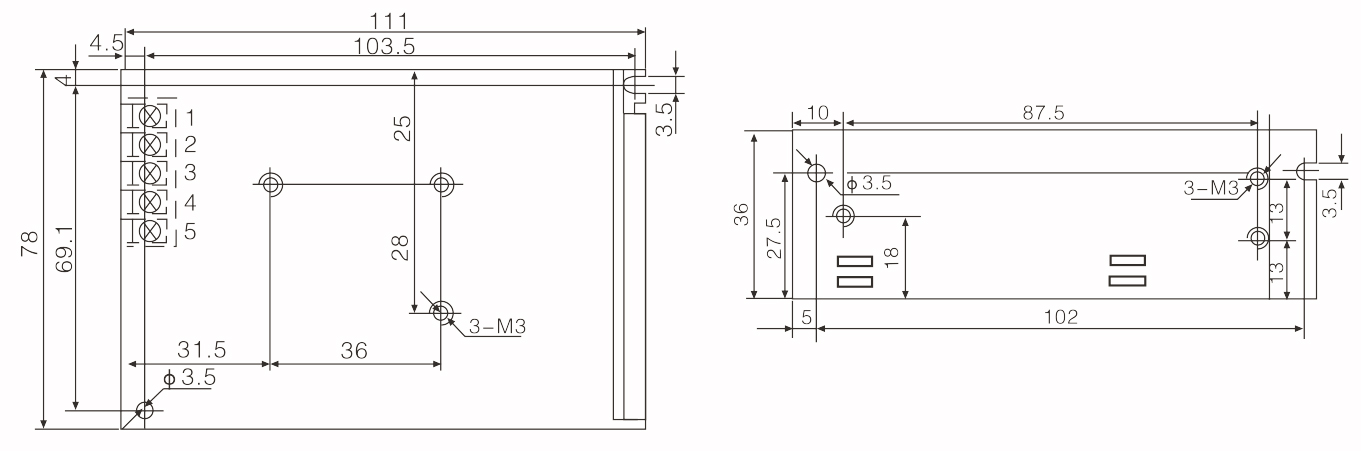

Overall dimension(mm)

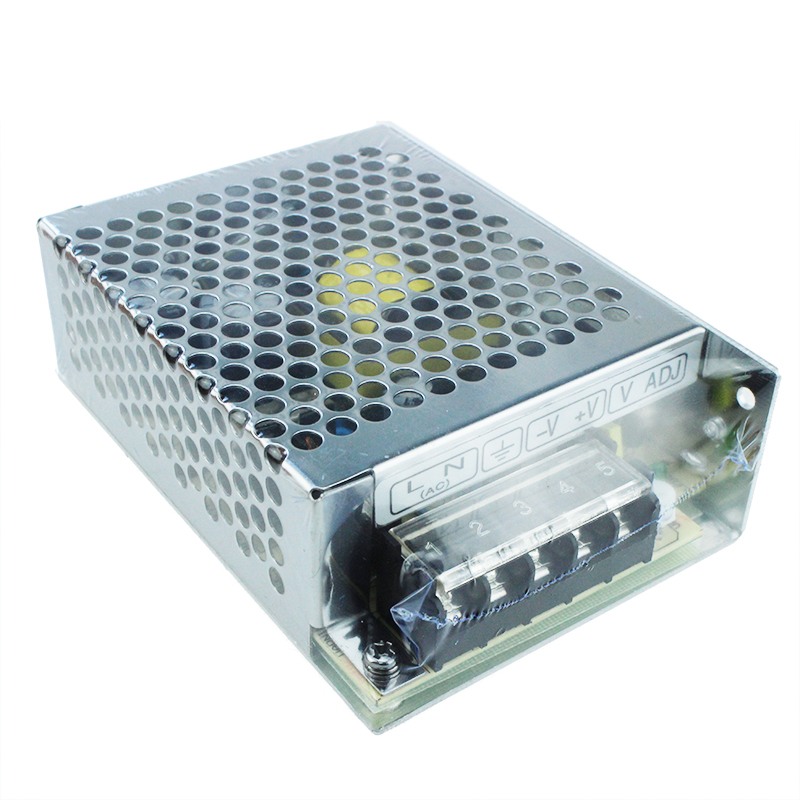

Terminal Pin No.Assignment
Pin1,2: AC input
Pin 3: GND
Pin 4: DC output-V
Pin 5: DC output+V
