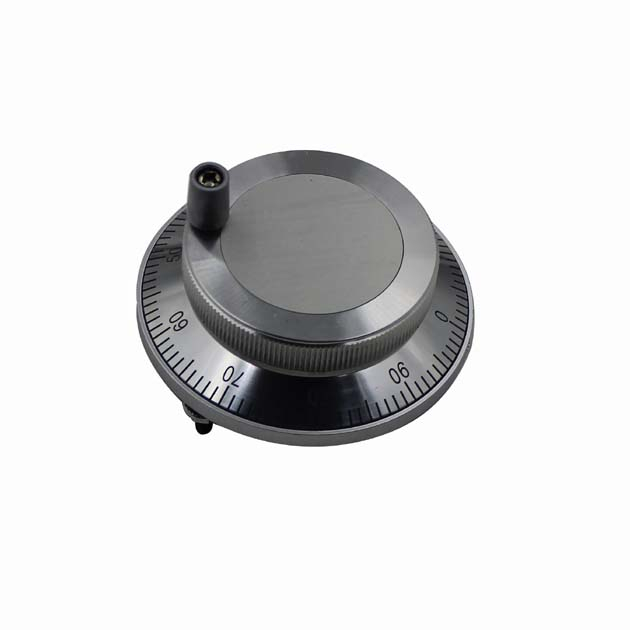

YMT800
◆Note
1, Please contact sales representative to confrim
The correctness and availability of the part number
2, Line driver only available with 5V DC
◆Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V / 7~24V (±10%) | Max. response frequency is gated by max. rotationspeed |
| Max. Response Frequency | 20 kHz | |
| Max. Rotation Speed (*1) | 200 rpm | |
| Max. Current Consumption | 120mA (Unloaded / Line Driver) | |
| Max. Current Consumption | 100mA (Unloaded / Other Output) | |
| Max. Rise-Fall Time | 20ns | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| Humidity | 30%~85% / no condensation | |
| Vibration | 5G | |
| IP Rating | IP50 |
◆Connection Table
| Output Signal | A+ | B+ | 0V | Vcc | A- | B- |
| Terminal-Line Driver | 1 | 2 | 3 | 4 | 5 | 6 |
| Terminal -Other Output | 1 | 2 | 3 | 4 | n/a | n/a |

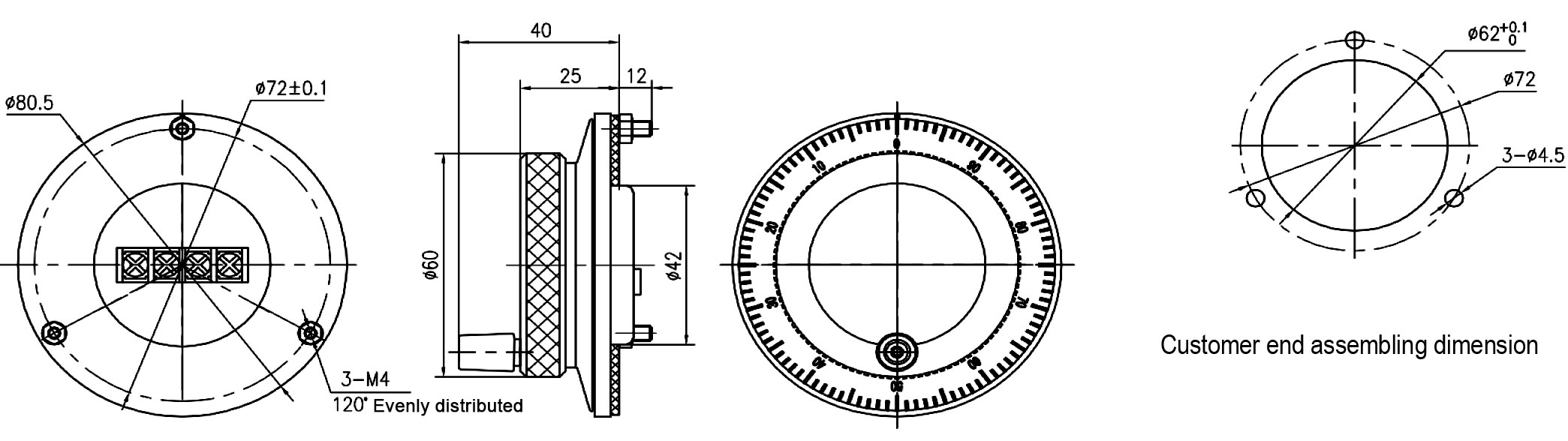

◆Dimension
◆Output Waveform
