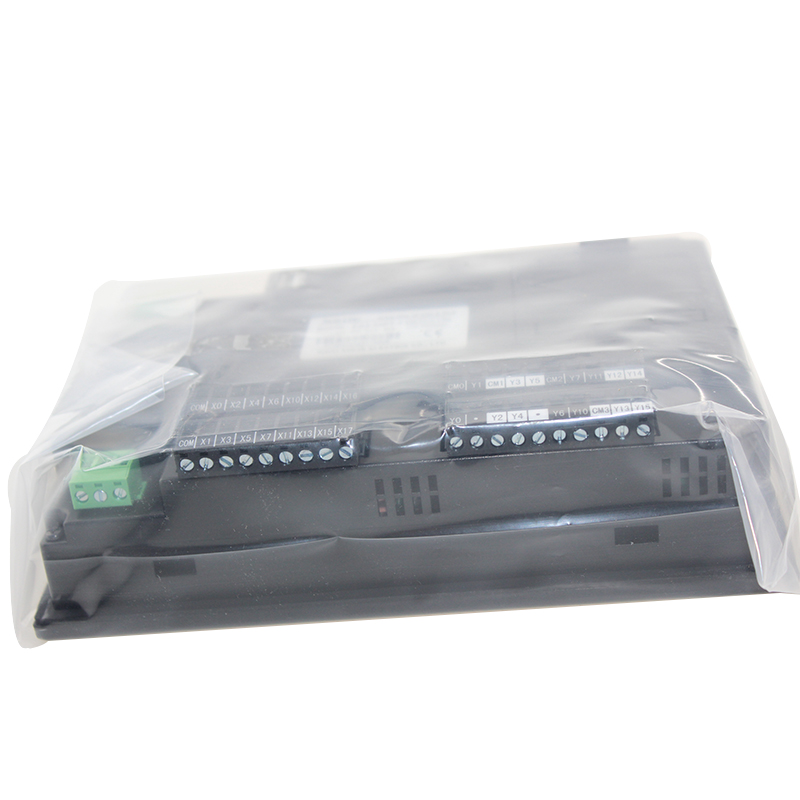

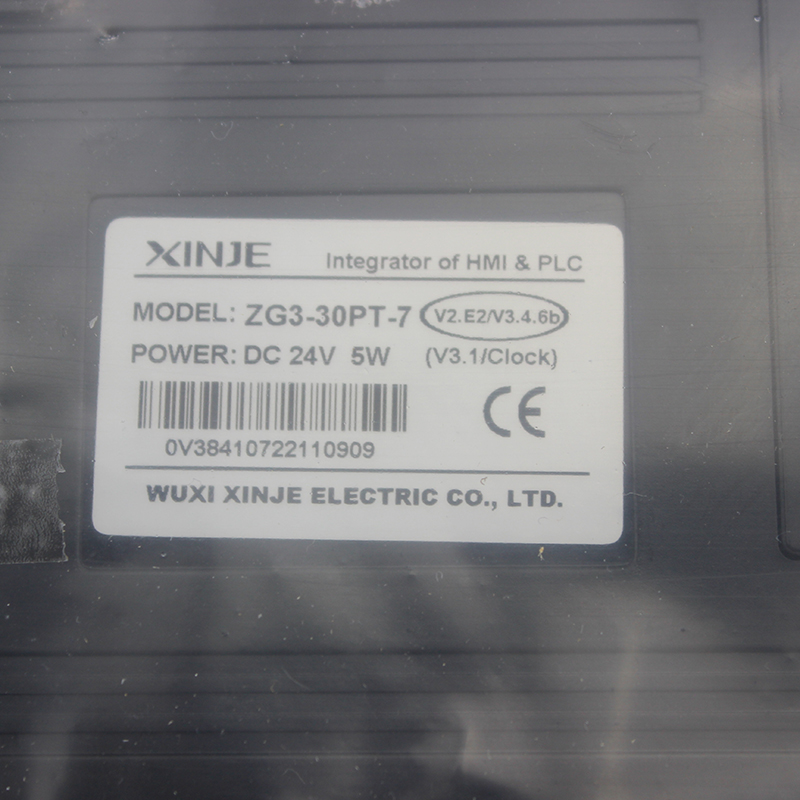

ZG3-30PT-7
Xinje
ZG series integral controller
It integrates PLC and HMI functions (TG touch screen & XD series PLC); switch input: 16 points or 10 points, optocoupler isolation; switch output: 14 points or 10 points, transistor output / relay output / transistor relay mixed output.
Product description
Integration of PLC and HMI functions (TG touch screen & XD series PLC)

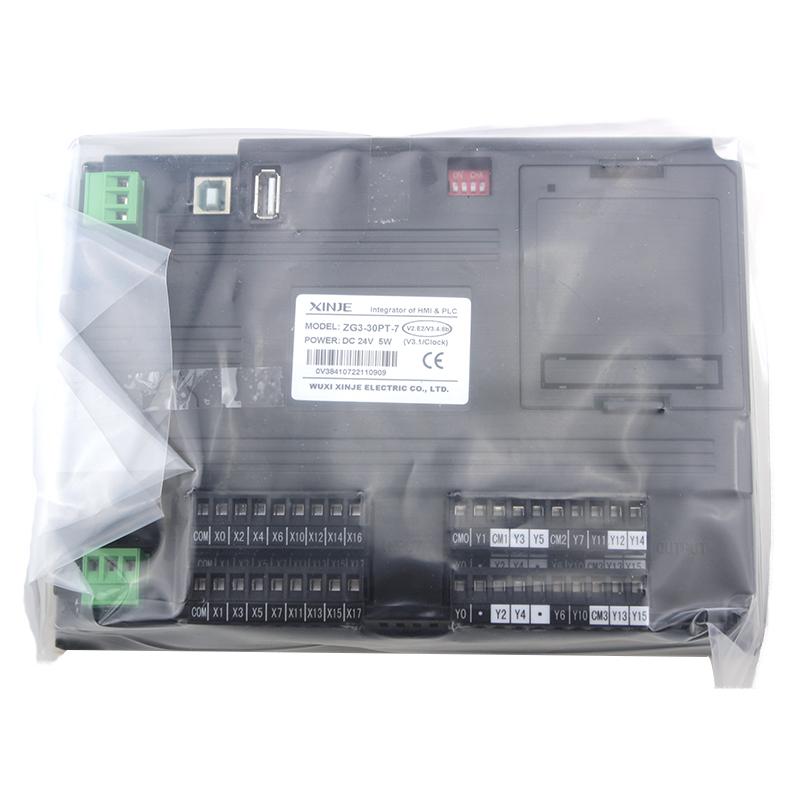

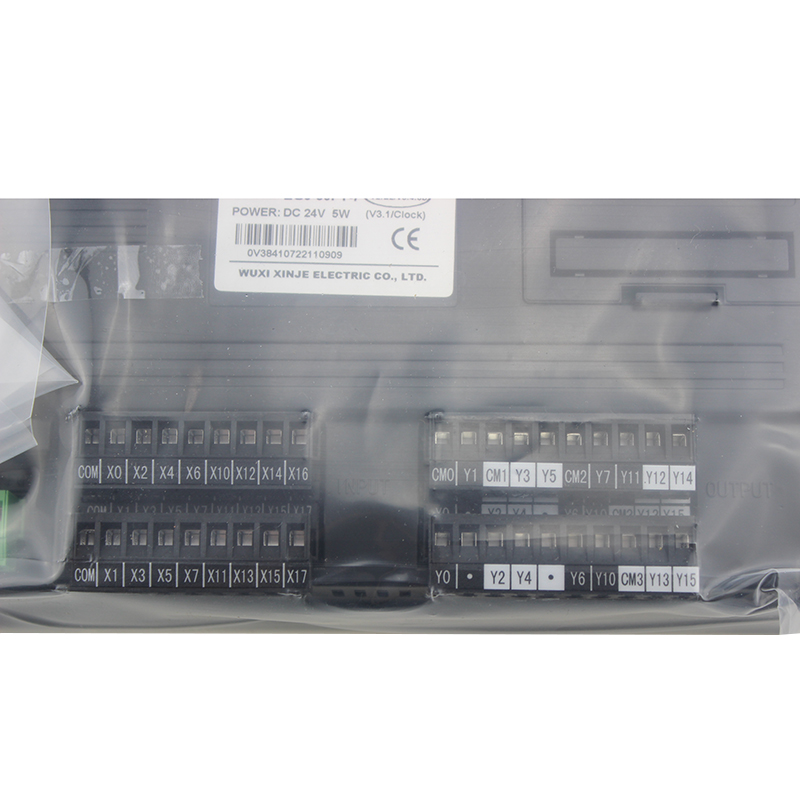

Switch input: 16 or 10 points, optocoupler isolation.
Switch output: 14 or 10 points, transistor output / relay output / transistor relay mixed output.
Analog expansion: z-3ad3pt-bd, z-4ad2da-a-bd, z-2wt-bd.

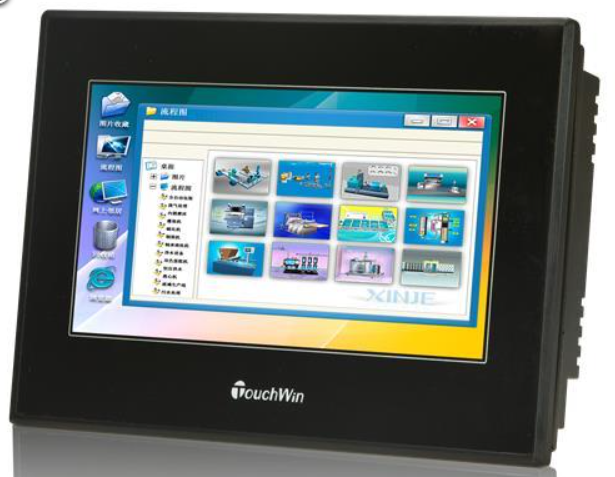

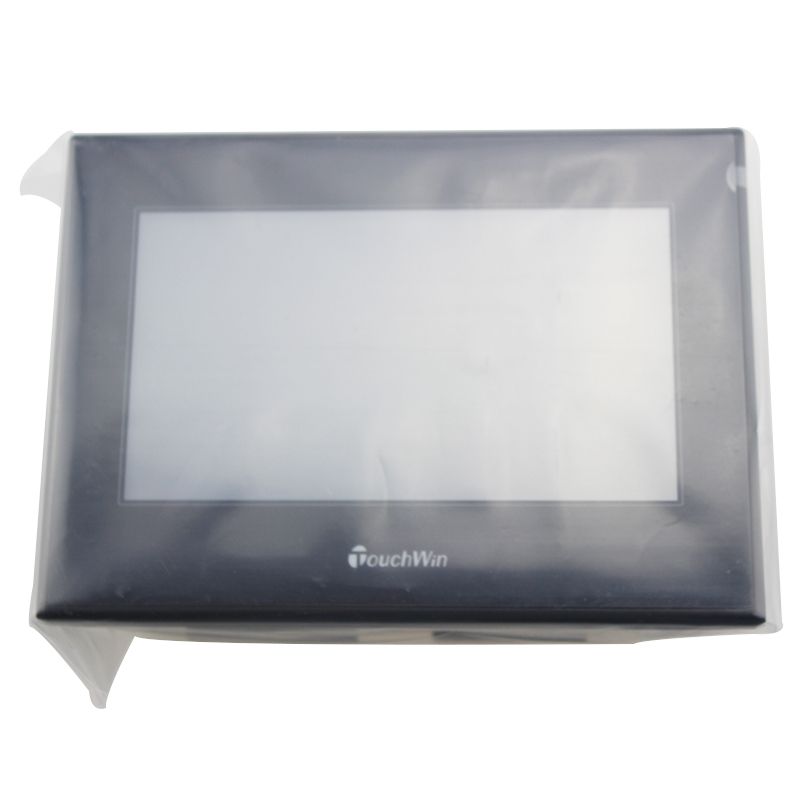

HMI screen editing is simple and intuitive, with rich functions, and the display area supports touch.
Resolution: 800 * 480 pixels (7 inches) or 480 * 272 pixels (4.3 inches);
LCD display: 16.77 million true color; LCD life up to 50000 hours.
Support high-speed counting, high-speed pulse, external interrupt.
The waterproof grade of front panel is IP65.
Compact structure, greatly saving the electric control cabinet space
1： | Series name | ZG：TG series touch screen technology, 16.77 million color display screen | |
2： | PLC Series | 1：XD1 Series PLC | |
3：XD3 Series PLC | |||
M：XDM Series PLC | |||
3： | Input and output points | 30：16in 14out | |
20：10in /10 out | |||
4： | type of output | NPN input | T：Transistor output with 2 high speed pulses |
RT：Transistor relay mixed output with two high speed pulses | |||
R：Relay output | |||
T4：Transistor output with 4 high speed pulses | |||
PNP output | PT：Transistor output with 2 high speed pulses | ||
5： | Screen size | 7：7 Inch Touch Screen | |
4：4.3 Inch Touch Screen | |||
