LB19E-A-B-L-5-24V

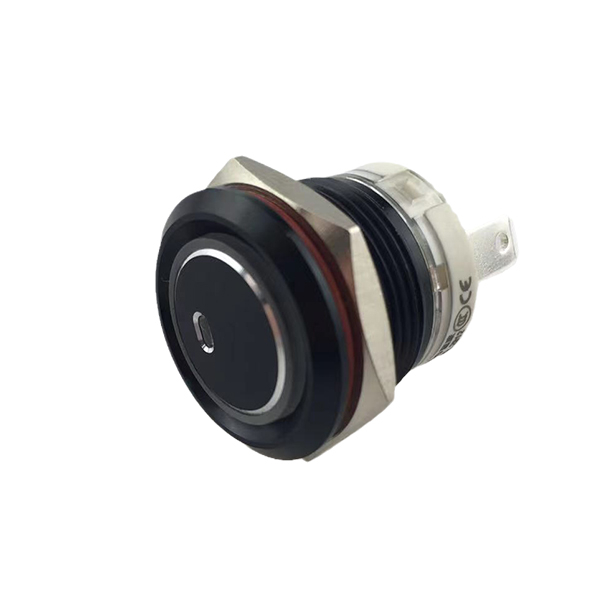

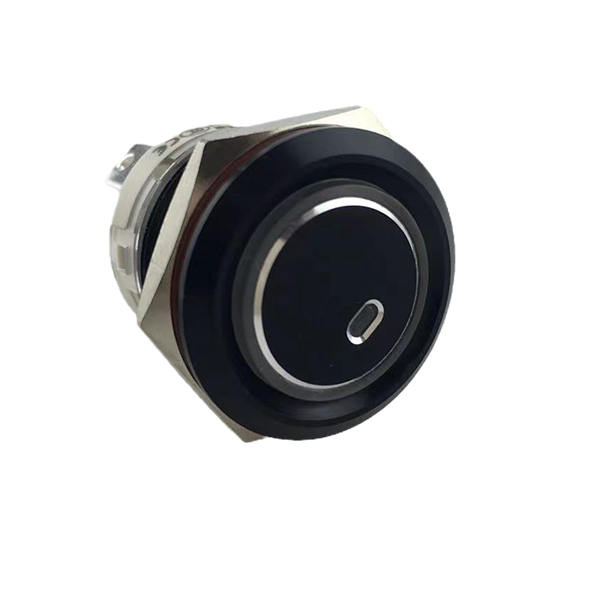

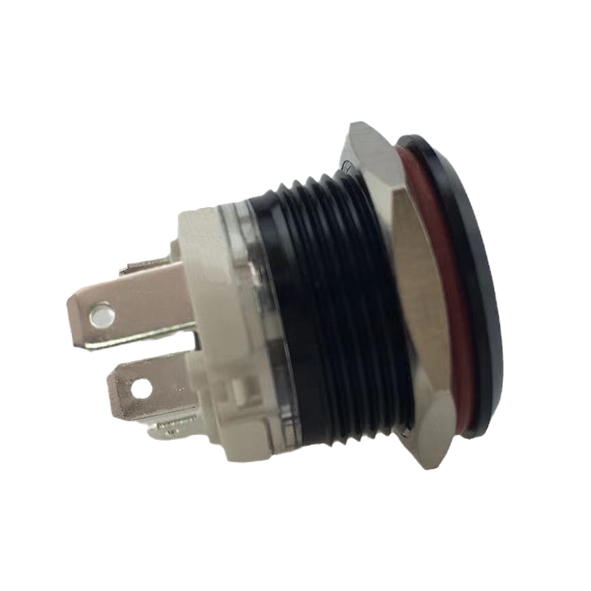

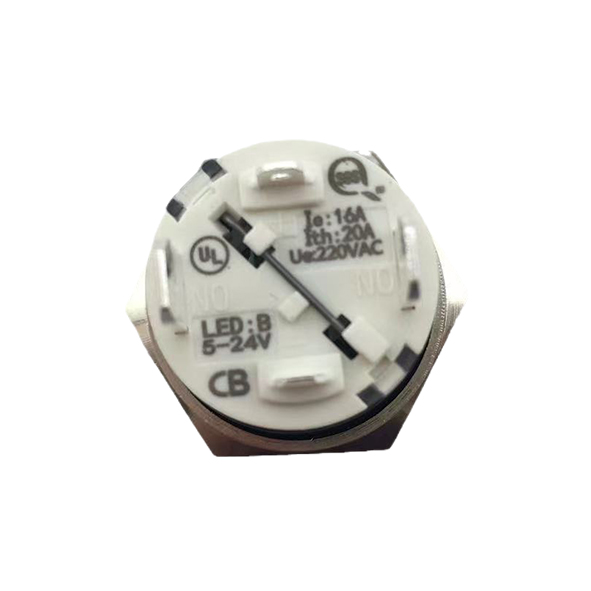

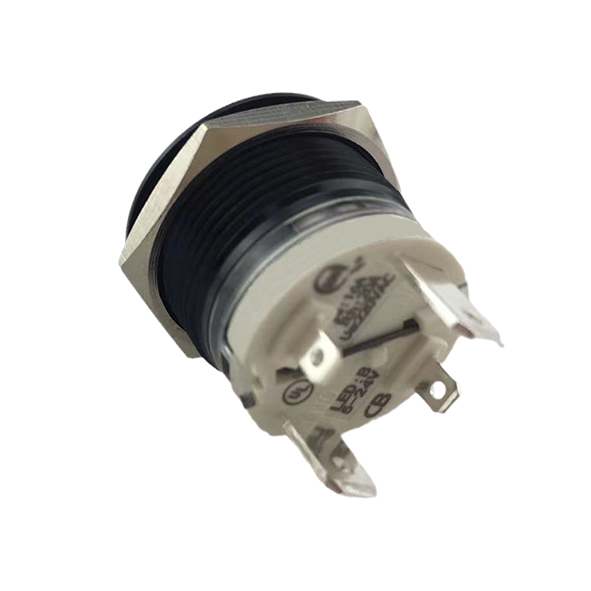

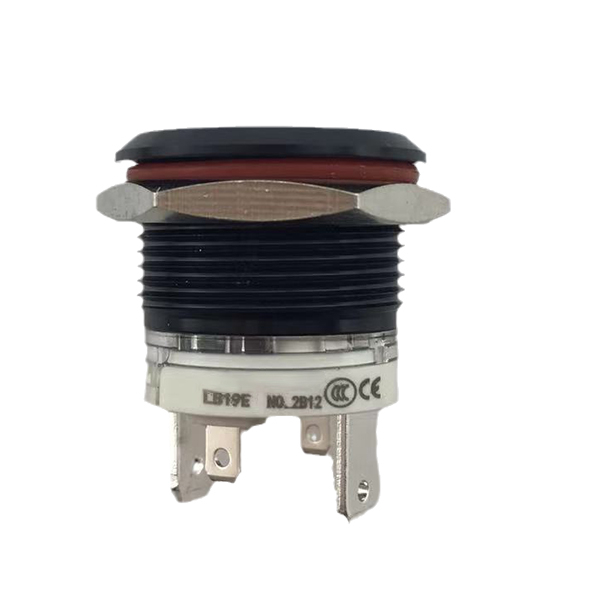

19mm Waterproof IP65 Self-locking Aluminum Oxide Black Metal Push Button Switch with Blue Light Ring
This is aluminum oxide black oush button switch with blue LED light
Parameters
| Mounting Aperture | 19mm |
| Serial Number | 19E Metal push button switch |
| Head shape | Flat Head |
| Switch combination | Self-locking |
| Action form | 1NO1NC Independent Pin |
| Waterproof level | IP65, customized IP67, anti-collision IK10 |
| Working environment | -40°C~+85°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load | 19E: AC-15:110V/220V: 16A ,DC-13:12V/24V: 16A |
| Inductive load | 19E: AC-15:110V/220V: 4A ,DC-13:110V:4A |
| Glowing shape | Ring |
| Glow color | Blue |
19mm Waterproof IP65 Self-locking Aluminum Oxide Black Metal Push Button Switch with Blue Light Ring
This is aluminum oxide black oush button switch with blue LED light
Parameters
| Mounting Aperture | 19mm |
| Serial Number | 19E Metal push button switch |
| Head shape | Flat Head |
| Switch combination | Self-locking |
| Action form | 1NO1NC Independent Pin |
| Waterproof level | IP65, customized IP67, anti-collision IK10 |
| Working environment | -40°C~+85°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load | 19E: AC-15:110V/220V: 16A ,DC-13:12V/24V: 16A |
| Inductive load | 19E: AC-15:110V/220V: 4A ,DC-13:110V:4A |
| Glowing shape | Ring |
| Glow color | Blue |
