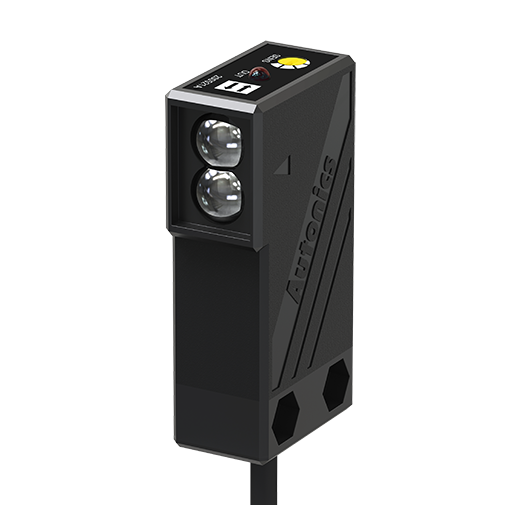

BMS2M-MDT
Autonics
Description:
| Sensing type | Retroreflective type |
|---|---|
| Sensing distance | 2m(MS-2) |
| Sensing target | Opaque material of min. Ø60mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories_Individual | Reflector(MS-2), Adjuster driver |
| Accessories_Common | Fixing bracket, Bolts, Nuts |
| Weight | Approx. 110g |
