ISC2504-001E-200B-5C

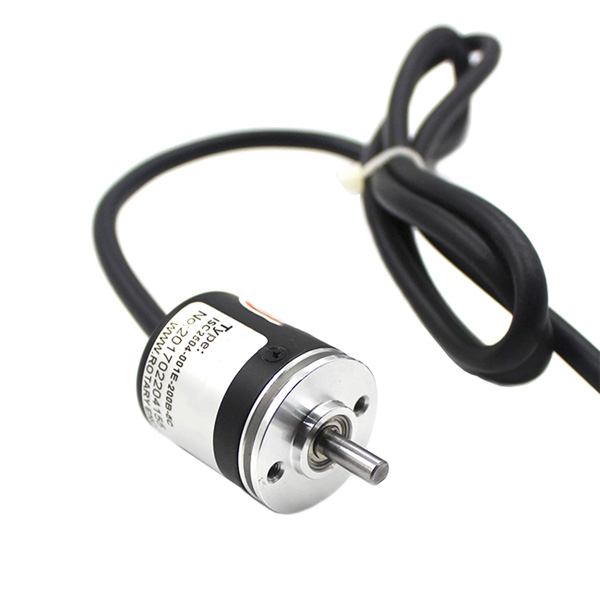

ISC2504-001E-200B-5C shaft diameter 4mm 5VDC Solid Shaft Incremental Rotary Encoder
Product Description
Application
Measure the distance, automatic control , robot, X-Y labor ,printing, curtained door, shoe machine , textile machine and etc.
Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal
| Model NO. | ISC2504-001E-200B-5C |
| Shaft diameter | 4mm |
| Output form | Open collector NPN |
| Output signal | A,B phases |
| Housing diameter | 25mm |
| Pulses | 200P/R |
| Supply voltage | 5VDC |
| Cable lead out | Cable lead out behind |
| Load current | 40mA |
| Protection grade | IP51 |
Ordering Information
Technical Specification
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
| Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 150kHz | 150kHz | 150kHz | 150kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 5000 | <0.03Nm | Radial:15N, Axial:10N | 50G/11ms | 10G 10-2000Hz |
| Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10-8Kgm2 | -25~80℃ | -30~85℃ | IP51 | 60g |
Connection Table
| Signal | A | B | Z | A(-) | B(-) | Z(-) | Vcc | GND |
| Color | Green | White | Yellow | Brown | Grey | Orange | Red | Black |
Dimensions(mm)
