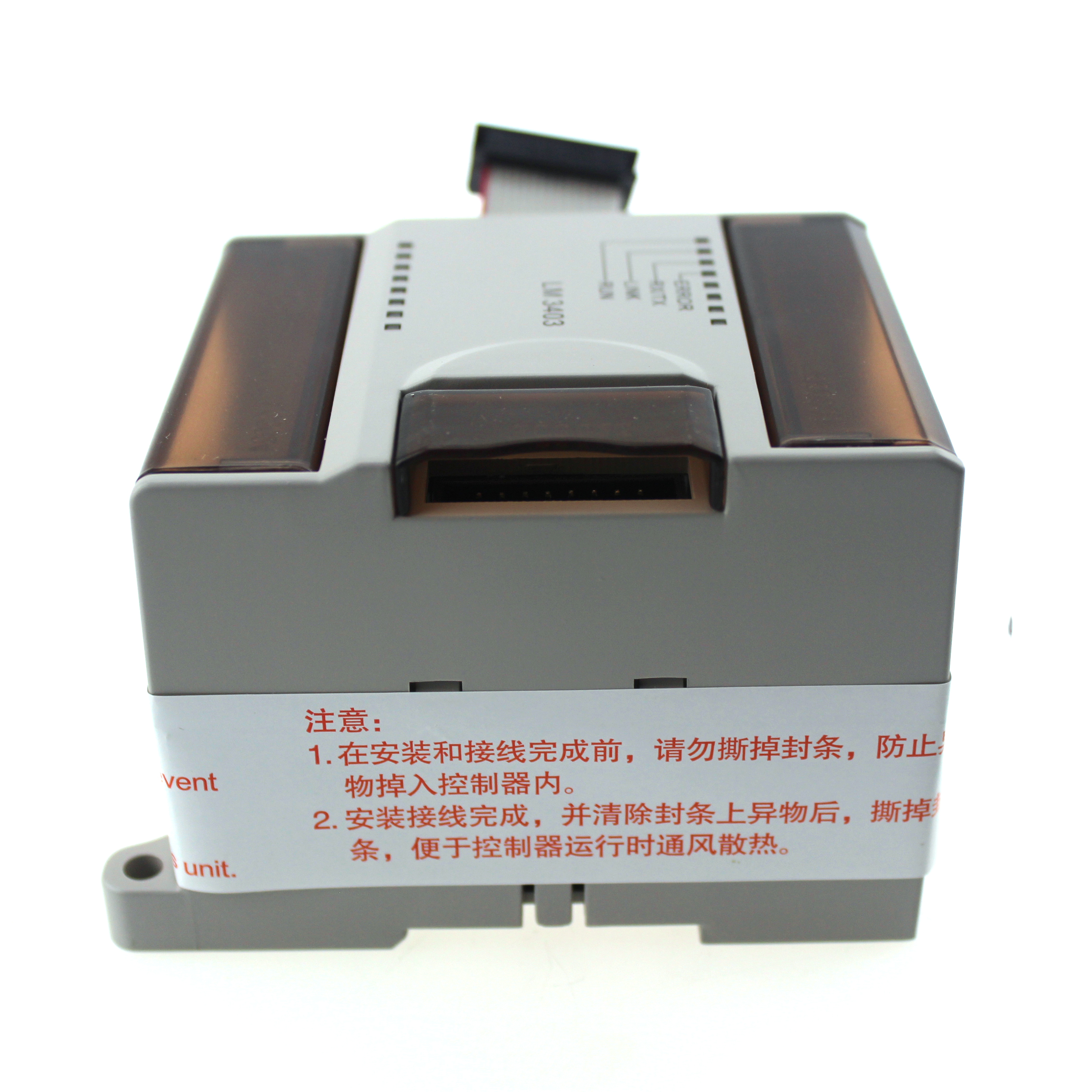

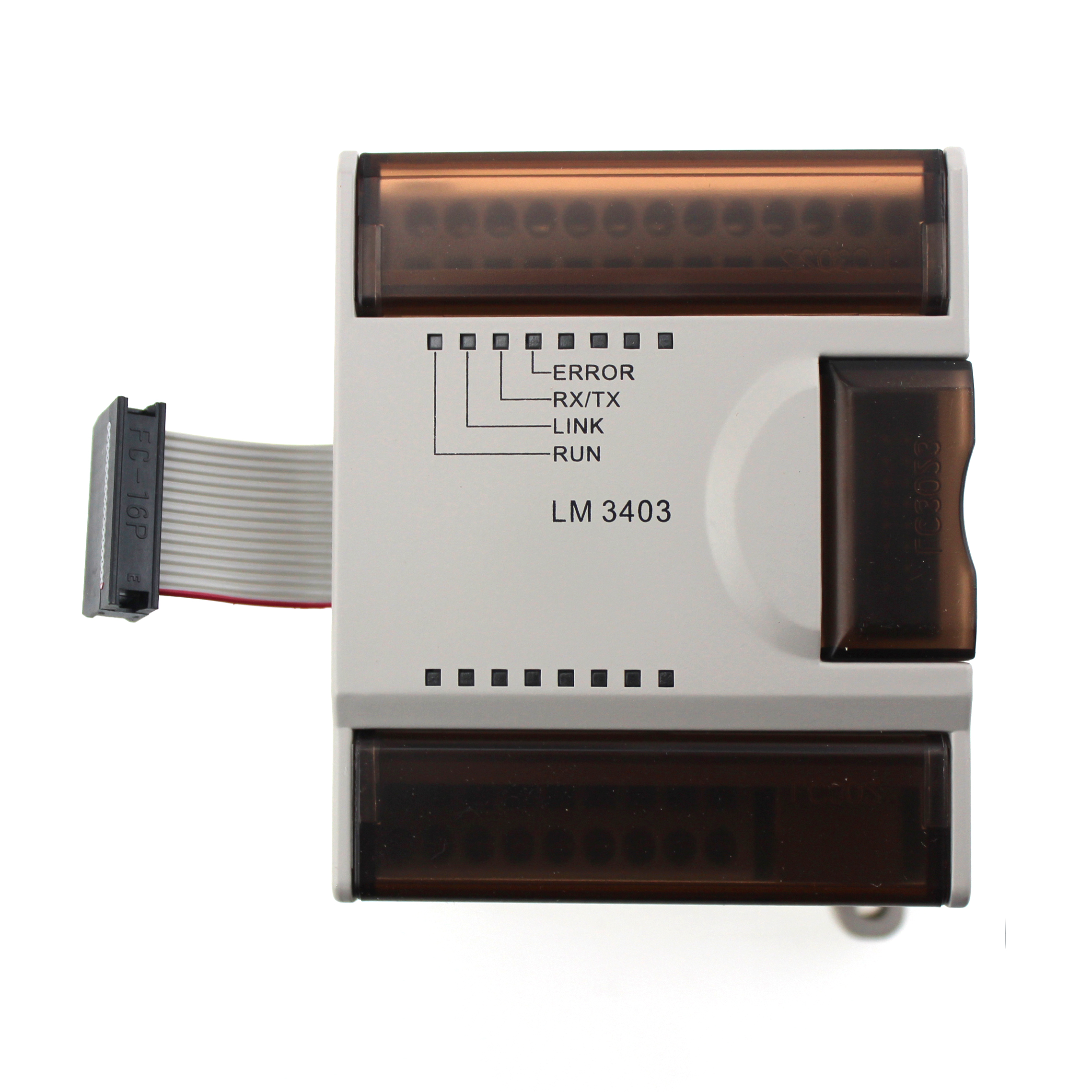

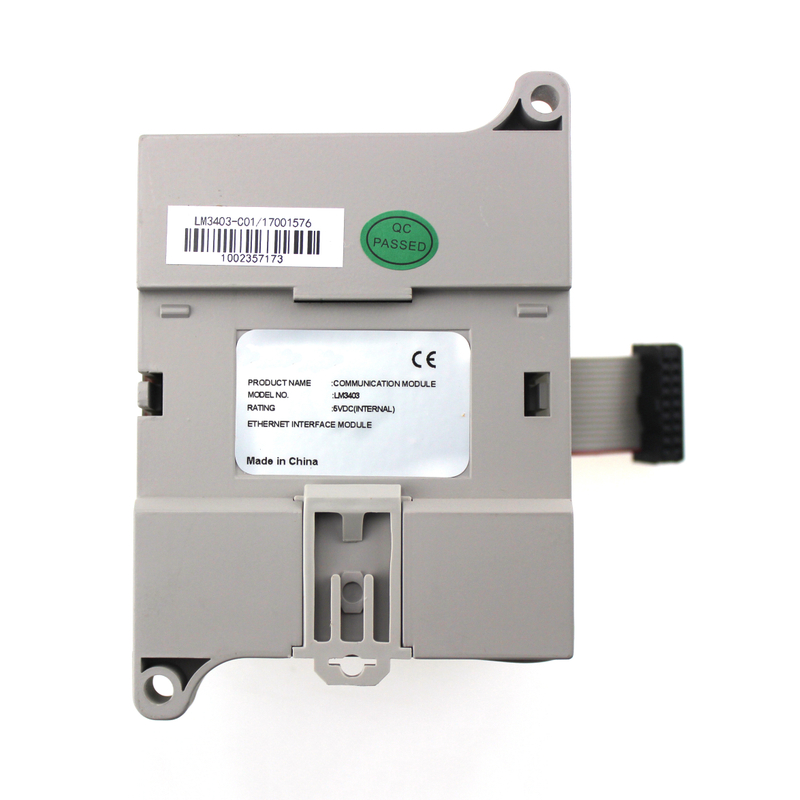

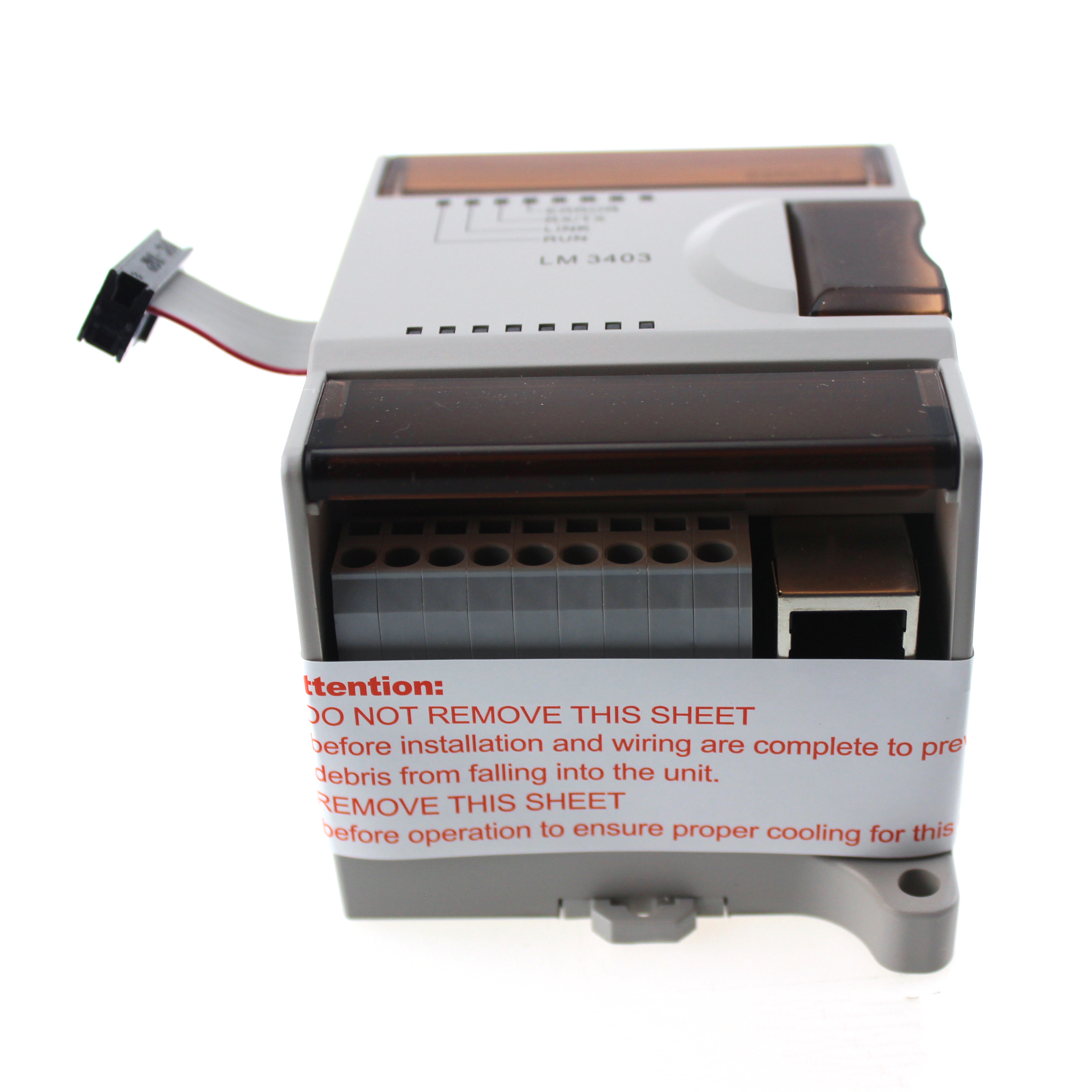

LM3403 Programmable Logic Controller PLC for Intelligent Control

AO Module LM3403 (2CH Analog Output) 1.PLC controllers ,controller PLC, Programmable logic controller 2.CE approved  3.reasonable price and high quality
Availability:
Inquire Add to Basket

  • LM3403

AO Module LM3403 (2CH Analog Output)

Output channel: 2
Output precision: 2% full range (0∼55)
Typical precision: 0.5% full range, at 25



Output Features


Output channel
2
<>
Output range
Voltage
0∼10V
Current
0∼20mA
Precision (0∼55)
2% full range
Typical precision
0.5% full range, at 25
Setup time
Voltage output
<=10us
Current output
<=10us
Drive capacity
Voltage
Minimum 2000Ω
Current
Maximum 600Ω
Isolation mode
Photocoupler isolation
Maximum Isolation Voltage
1500VAC



Physical Features

Dimensions
75mm(L)×90mm(W)×70mm (H)
Weight
<200g
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
80mA
+5VDC (Provided by
expansion bus)
60mA
