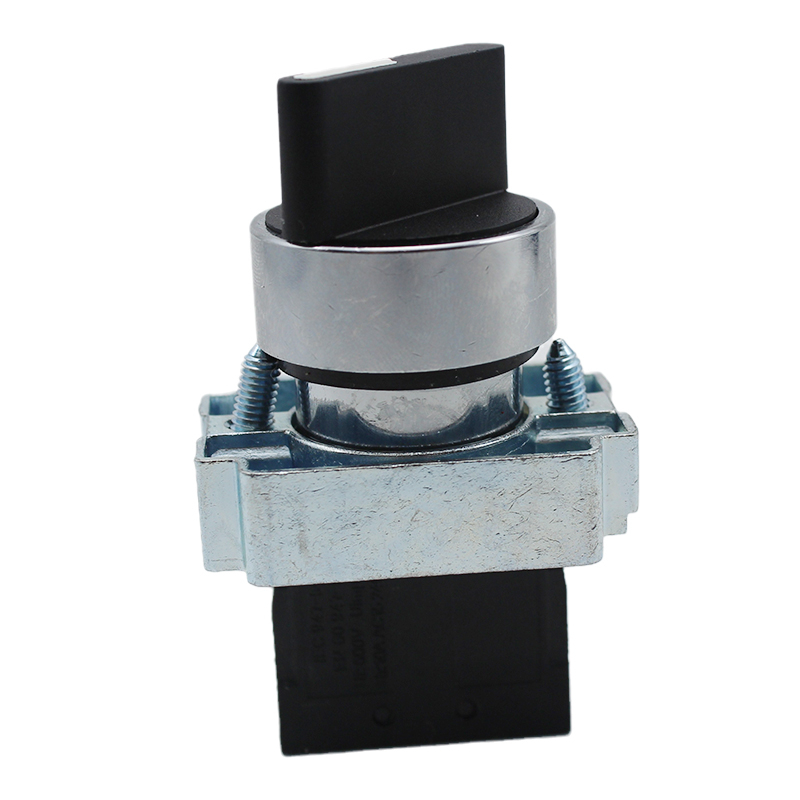

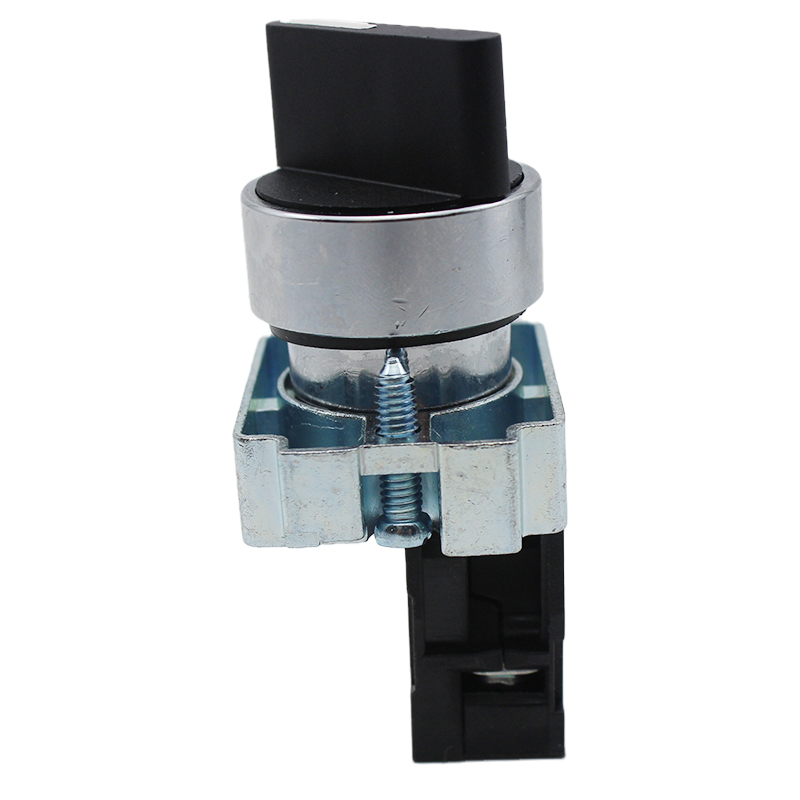

LAY5-BD21
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Work environment
Surrounding temperature:-25℃~+55℃;
Air relative humidity:≤85%.
It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
Altitude:≤2000m

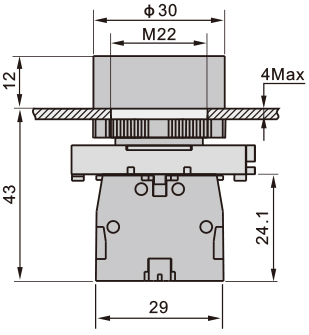

| Main technical parameter | ||
| Basic technical parameter of button | ||
| Rated insulation | AC 600V(50Hz/60Hz) | |
| Conventional heating current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100x10000 pushbutton | 50x10000 selector switch |
| Electrical life | 500x10000 pushbutton | 25x10000 selector switch |
| Description | Contact | Circuit | Color | Sign Type | Contour |
Flush button | N/O |  | White | LAY5-BD11 |
|
| Black | LAY5-BD21 | ||||
| Green | LAY5-BD31 | ||||
| Yellow | LAY5-BD51 | ||||
| Blue | LAY5-BD61 | ||||
| N/C |  | Red | LAY5-BD42 |
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Work environment
Surrounding temperature:-25℃~+55℃;
Air relative humidity:≤85%.
It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
Altitude:≤2000m
| Main technical parameter | ||
| Basic technical parameter of button | ||
| Rated insulation | AC 600V(50Hz/60Hz) | |
| Conventional heating current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100x10000 pushbutton | 50x10000 selector switch |
| Electrical life | 500x10000 pushbutton | 25x10000 selector switch |
| Description | Contact | Circuit | Color | Sign Type | Contour |
Flush button | N/O | | White | LAY5-BD11 |
|
| Black | LAY5-BD21 | ||||
| Green | LAY5-BD31 | ||||
| Yellow | LAY5-BD51 | ||||
| Blue | LAY5-BD61 | ||||
| N/C | | Red | LAY5-BD42 |
