H7BX
H7BX Batch Counter High speed intelligent digital meter counter
Description
Size 72*72mm
High-performance CPU, high-speed data processing
Adapts to various encoders
Stable performance ,strong anti-interference
can be arbitrarily and more accurate
By changing the setting coefficient, the measurement results
Keep data for 10 years
Counting speed is 60k CPS
For cloth inspecting machine, rolling machine, forming machine and mechanical equipment which need measure the length of cable.It is mainly used in textile, cable, papermaking and other wireÿsilk strip production process automatic measuring, meter and control.
Technical characteristics
| Power supply | AC/DC 100-250V |
| Power consumption | less than 4W |
| Auxiliary output power | DC12V, 200mA |
| Capacity | AC220V 3A/DC24V 5A |
| Input signal frequency | 0Hz~30kHz |
| Reset pulse signal | L 2V; H 5V |
| Input signal | L 2V; H 30uS (30k CPS) |
| Input impedance | 2K |
| Output response time | count arrival relay output time 6mS |
| Environment | 0-60C; humidity 85% |
| Corrected input response time | 0.8mS |
| Storage temperature | -20ºC~85ºC |
| Dimensions | 72*72*85mm |
| Installation method | snap-in |

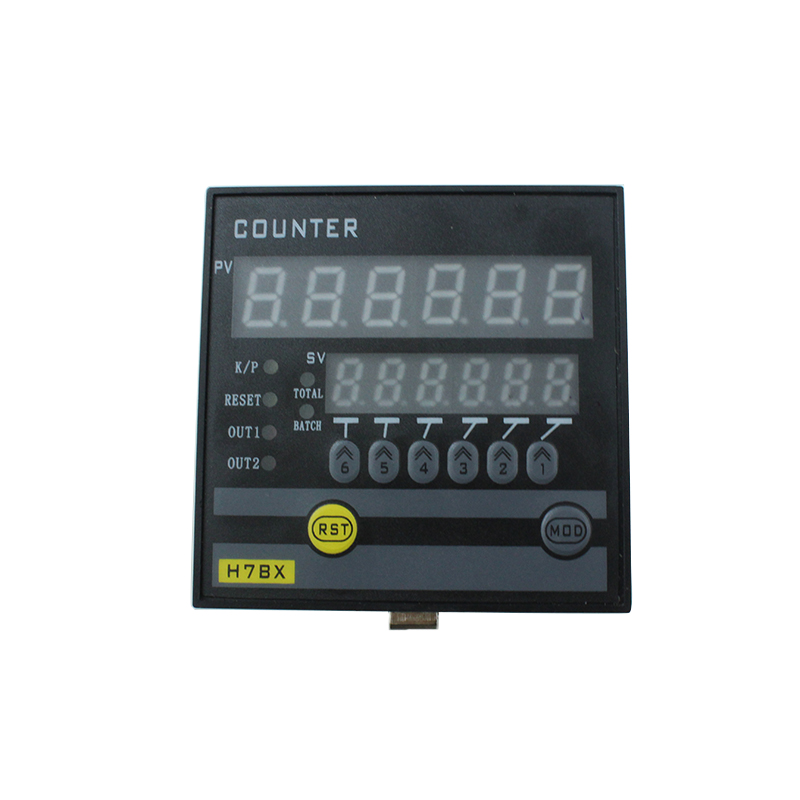

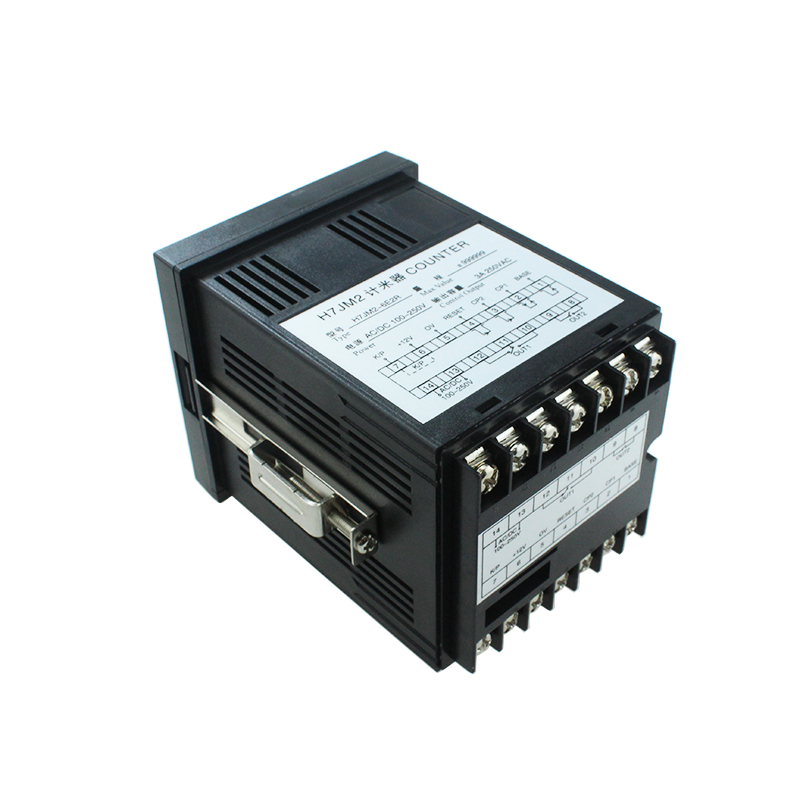

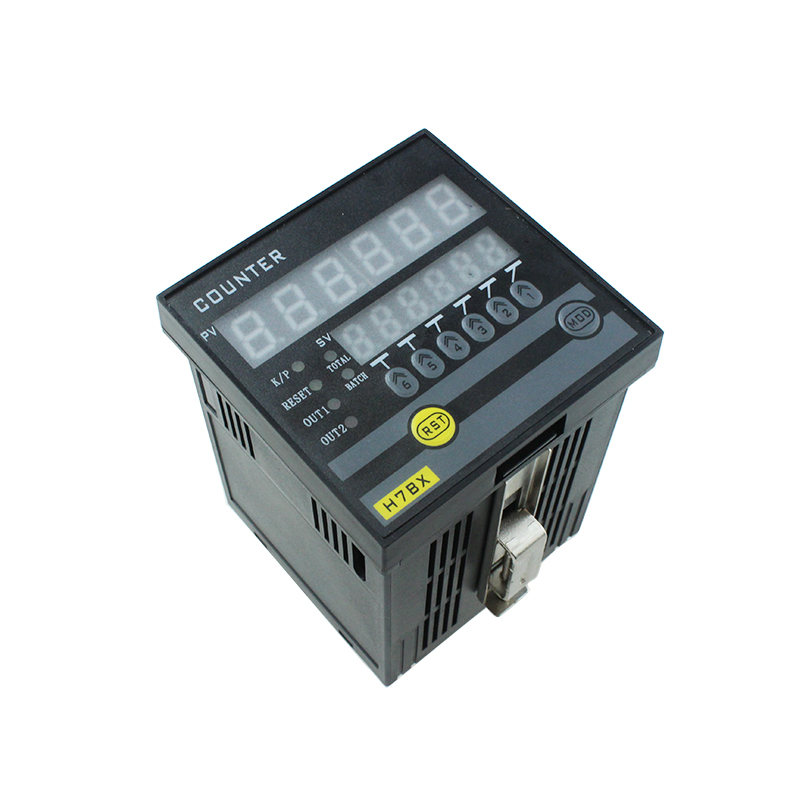

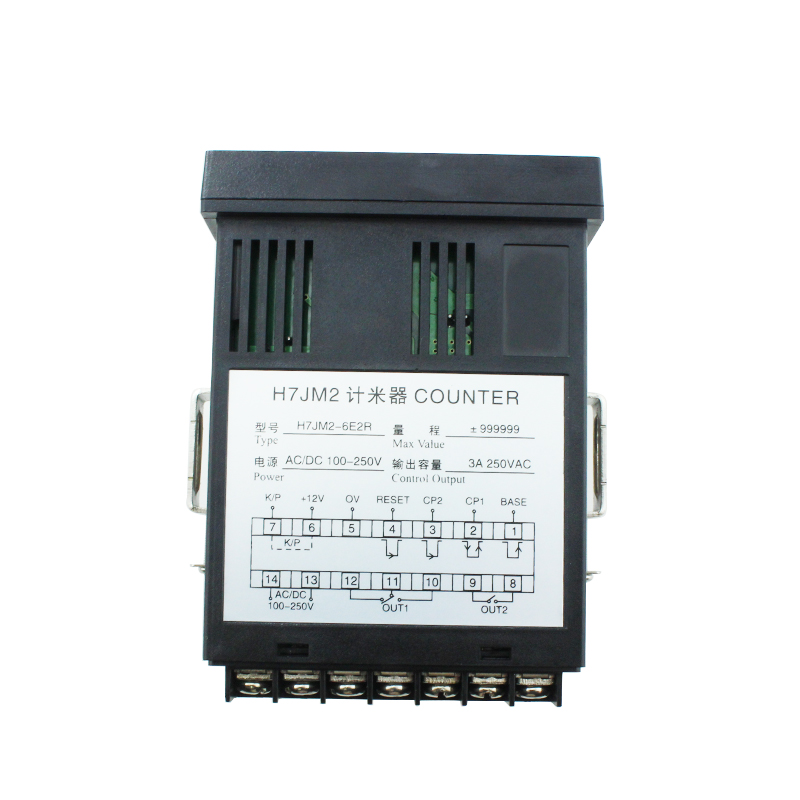

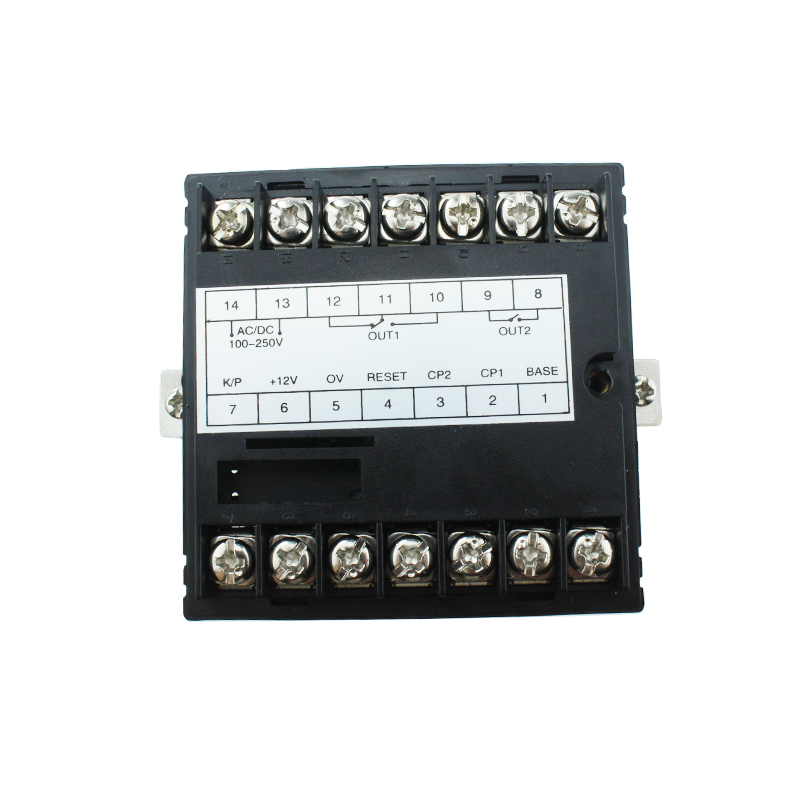

Product Pictures
FAQ:
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
