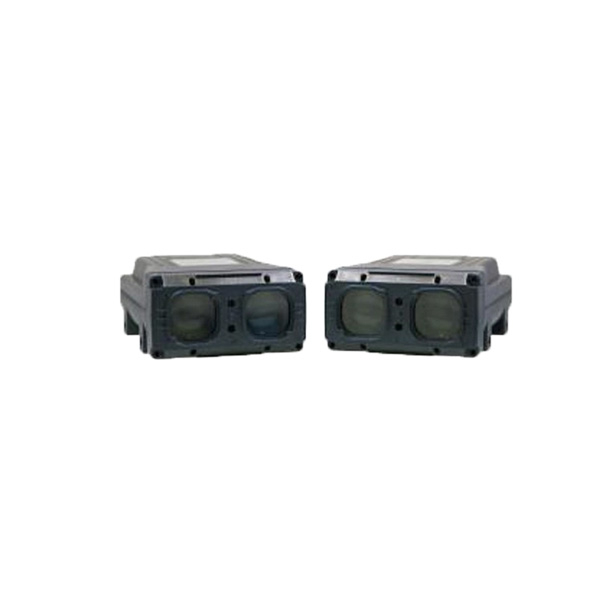

EWF-_E
Hokuyo
100Mbps optical repeater that can connect to the Ethernet line directly.
Setting of MAC address or IP is not required and it can be used as LAN cables.
Non-contact communication is available for up to 100m between moving devices.
Model No. | EWF-0EA-01/0EB-01 | EWF-1EA-01/1EB-01 |
Transmission distance | 50m | 100m |
Directional angle | Full angle 1.4° | Full angle 0.7° |
Power source | 24VDC(±10%) | |
Current consumption | 150mA(24VDC) | |
Transmission system | Full-duplex two-way transmission | |
Transmission speed | 100Mbps | |
Laser safety standard | Class 2M | |
Interface | Ethernet | |
Communication standerd | IEEE802.3u 100BASE-TX Auto-negotiation compliant | |
Modulation system | Direct modulation | |
Connection | Mini clamp connector(Power/CD signal),Modular jack RJ-45(Ethernet) | |
Ambient temperature/humidity | -10°C to +50°C,85%RH or less(non icing) | |
Ambient illuminance | 10000lux or less(Halogen/mercury lamp) | |
Impact resistance | 490m/s2, Each 10 times in X, Y and Z directions | |
Vibration resistance | Double amplitude 1.5mm,10 to 55Hz,each 2 hours in X, Y and Z direction | |
Protective structure | IP40 | |
Reception output(CD) | Photo-coupler open-cellector(Withstand pressure 35V), ON when receiving light(Max.50mA, residual voltage 1.5V) | |
Level voltage output(Analog output) | Approx.0 to 3V, connector S2B-PH-K-S(JST) | |
