SE-600-5

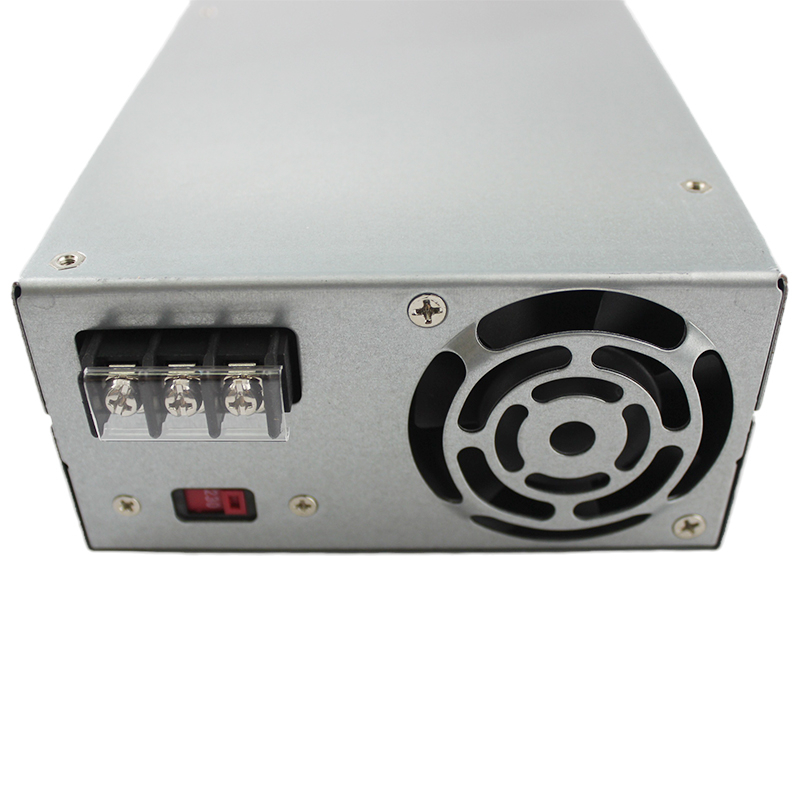

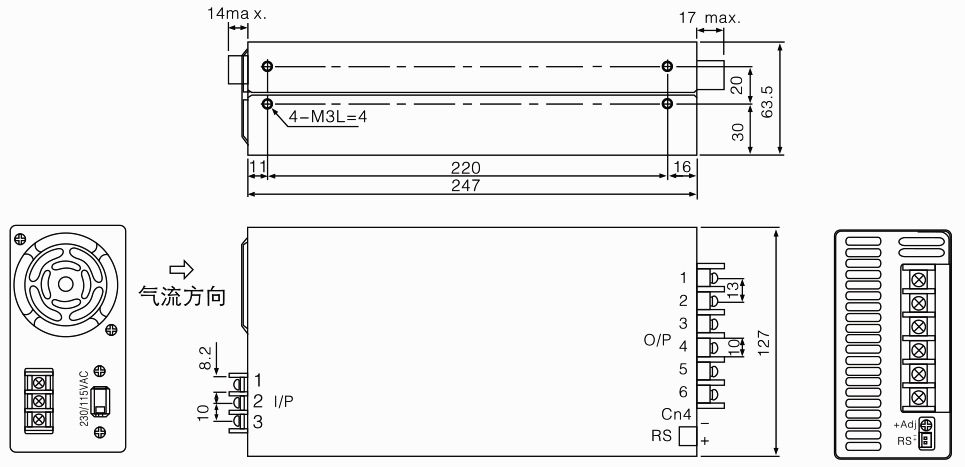

SE-600 series single output power supply
AC DC SWITCHING POWER SUPPLY
MODEL | SE-600-5 | SE-600-12 | SE-600-24 | SE-600-48 |
DC output voltage, current | 5V 0 ~ 100A | 12V 0 ~ 50A | 24V 0 ~ 25A | 48V 0 ~ 12.5A |
Wave and noise | 150mVp-P | 150mVp-P | 150mVp-P | 180mVp-P |
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efficiency | 78% | 83% | 87% | 88% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
Input voltage range | 90~132VAC/180~ 264VAC by switch 254~ 370VDC 47-63Hz | |||
lmpact current | lmpact current 30A/115VAC 50A/230VAC | |||
Overlcad protection | 105% ~150% cut off the output, automatic recovery | |||
Over voltage protection | 120%~ 140% shut down O/P voltage, re- power on to recover | |||
Setup, rise, hold up time | 1000ms, 50ms, 1 6ms/230VAC | |||
Withstand voltage | I/P-O/P: 1 5kV I/P- FG:1 5kV O/P- -FG: O.5kV 1minute | |||
Isolation resistance | |/P-O/P I/P-FG O/P-FG: 500VDC/100MO | |||
Working temperature | -10℃~ +50℃ | |||
FAQ:
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
