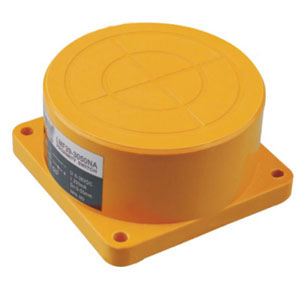

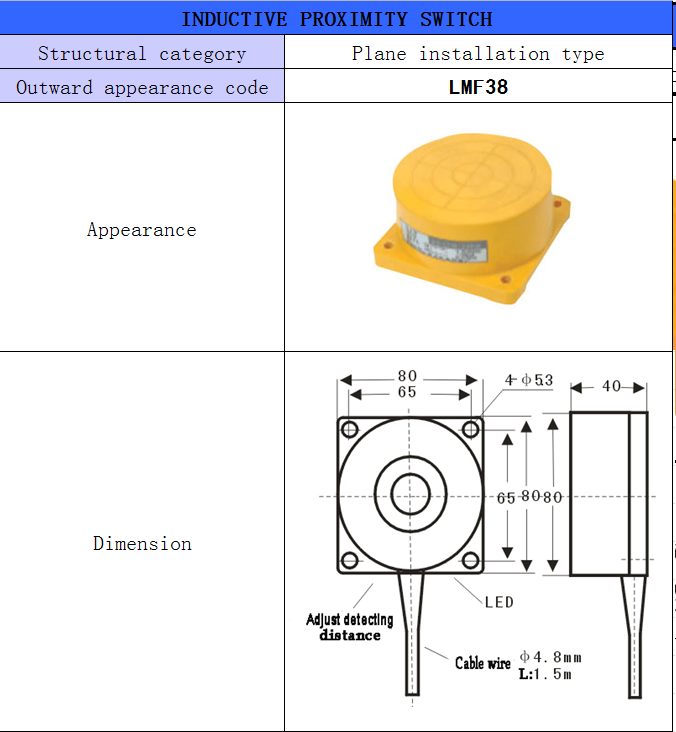

LMF38
Sensing range 1-40mm , angular column inductive inductive proximity switch. China offer customized design!
| Detecting rang mm | part no. | |||
| Flush | DC 6-36V | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| 2 Wires | NO | |||
| NC | ||||
| AC 90-250V | SCR | NO | ||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| Detecting rang 1-40mm | ||||
| Non-flush | DC 6-36V | NPN | NO | LMF38-3040NA |
| NC | LMF38-3040NB | |||
| NO+NC | LMF38-3040NC | |||
| PNP | NO | LMF38-3040PA | ||
| NC | LMF38-3040PB | |||
| NO+NC | LMF38-3040PC | |||
| 2 Wires | NO | LMF38-3040LA | ||
| NC | LMF38-3040LB | |||
| AC 90-250V | SCR | NO | LMF38-2040A | |
| NC | LMF38-2040B | |||
| NO+NC | LMF38-2040C | |||
| Relay output | LMF38-2040JC | |||
| LMF38 Sensor Characteristics | ||||
| Output current | DC | 200mA | ||
| SCR/relay | 300mA/2A/10A | |||
| Output voltage drop | DC≤1.5V /DC(Two wire system)≤5V/ AC≤7V | |||
| Consumption current | DC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA | |||
| Standard detected object | 100×100×1(A3 Iron) | |||
| Repeated precision | 0.5 | |||
| Response Frequency | 50Hz/10Hz | |||
| Working environment temperature | -25℃ ~+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin * Glass fiber reinforced plastic | |||
| Protection grade | IEC Standard IP65 | |||
| Alternative model | TCD-2040□ | |||
