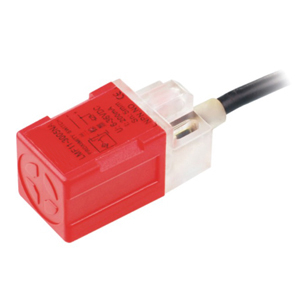

LMF11

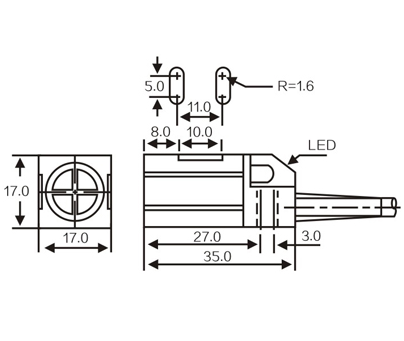

| 外形尺寸 OVERALL DIMENSIONS |  | |||
| 检测距离 DETECTION DISTANCE 5mm | ||||
| 埋 入 式 F l u s h | 直流 DC 10- 30 VDC 交流 AC 90- 250 VAC | NPN | NO | LMF11-3005NA |
| NC | LMF11-3005NB | |||
| NO+NC | LMF11-3005NC | |||
| PNP | NO | LMF11-3005PA | ||
| NC | LMF11-3005PB | |||
| NO+NC | LMF11-3005PC | |||
| 二线制 two wire system | NO | LMF11-3005LA | ||
| NC | LMF11-3005LB | |||
| SCR 可控硅 Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| 继电器输出Relay output | ||||
| 检测距离 DETECTION DISTANCE | ||||
| 非 埋 入 式 F l u s h | 直流 DC 10- 30 VDC 交流 AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| 二线制 two wire system | NO | |||
| NC | ||||
| SCR 可控硅 Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| 继电器输出Relay output | ||||
| 输出电流 Controloutput | DC | 200mA | ||
| SCR/继电器 Relay | ||||
| 输出电压降Output voltagc dropDC/AC | 直流(NPN PNP)型3V以下、二线型：3.9V以下、交流AC 10V以下 DC<3V、AC<10V | |||
| 消耗电流Consumption current | 直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA | |||
| 标准检测物体Standard detected object | 20X20X1(A3铁iron) | |||
| 重复精度Repeated precision | 0.05 | |||
| 响应频率DC/AC | 500Hz | |||
| 工作环境温度Working environment temperature | -25℃～+75℃ | |||
| 绝缘电阻Insulation resistance | 50MΩ | |||
| 外壳材料Shell material | ABS树脂Resin | |||
| 防护等级Protection grade | IP67 | |||
| 可替代国内型号Altemative model at home and abroad | PL-05N PL-05P | |||
