Model:
AF-20MT-GD2

Product Description

AF-20MT-GD2 PNP transistor output Programmable Logic Controller PLC

Introduction:

FAB2 Intelligent Controller Series is a new programmable controller launched by, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of FAB2 series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. FAB2 is very compact and light-weighted, especially suitable for internal installation usage.

In addition, FAB2 intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB2 can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the FAB2 is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere.

Features:
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)

Model NO.: AF-20MT-GD2

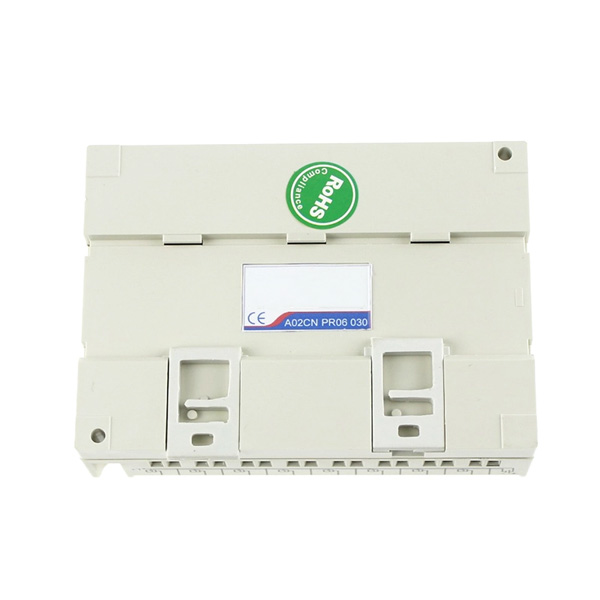

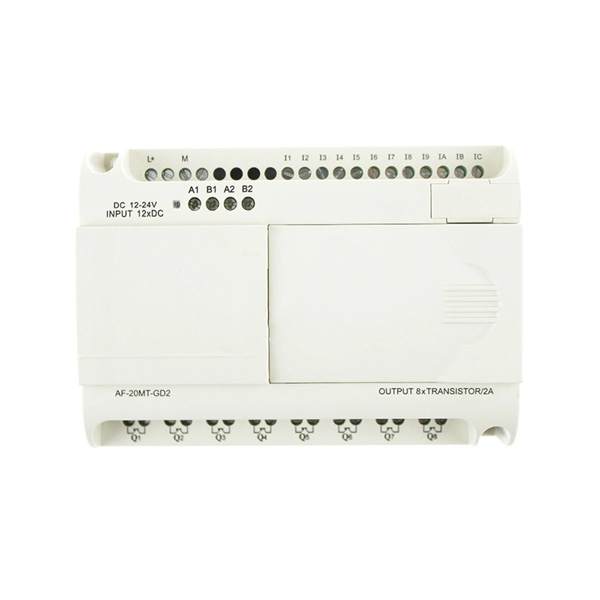

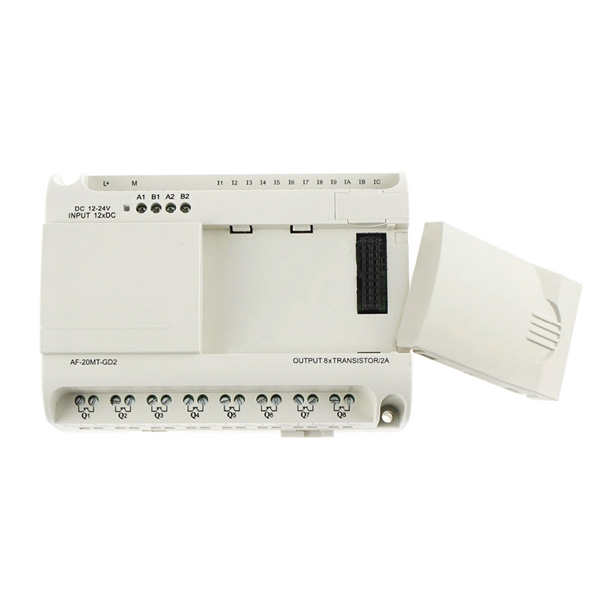

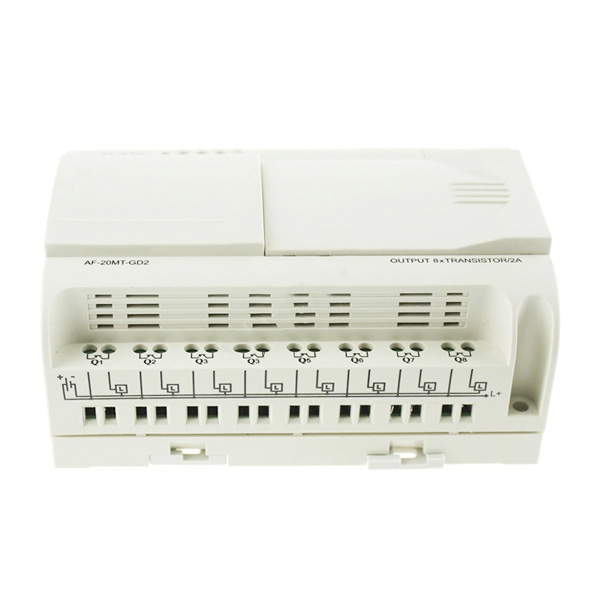

This model is a DC power supply, rated voltage can be DC12/24V, 12 points DC digital input (can be used as analog input), 8 points transistor output (exuivalent PNP), without LCD.

Exquisite and compact design
Multi-functional, easy operating, convenient, easy learning

Dimensions: (unit:mm)

Take the 10 points module as an example. The 20 points modules share the same width and height, the only one difference exists in the length.


Item	AF-10MR-A2	AF-10MR-D2		AF-10MR-E2	AF-10MT-D2	AF-10MT-GD2	AF-10MT-E2
	AF-20MR-A2	AF-20MR-D2		AF-20MR-E2	AF-20MT-D2	AF-20MT-GD2	AF-20MT-E2
Surge Immunity	2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing)	±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature	-10℃~+55℃
Storage Temperature	-40℃~+70℃
Ambient Humidity	5%~95%RH
Degree of Protection	IP20(Non-waterproof)
Installation	Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm)	71.690.451.3(10 points);*126.490.451.3(20 points)*
Programming Language	FBD
Points	10 points/20 points
Memory Capacity	127 FBDs
Real-time Clock	160h
Password Protection	yes
Analog Operation	At most 12 channels with DC 0-10V voltage
Simulate Monitoring	Yes
Communication Interface	support 2 channel with RS485 and 1 channel with program interfaces
Baud Rate	9600bps/19200bps
Communication Protocol	Self-defined protocol/MODBUS RTU protocol
Power Supply
Rated Voltage	AC100-240V	DC12-24V	AC/DC12-24V		DC12-24V	DC12-24V	DC12-24V
Permissible Range	DC85-260V	DC10-28V	AC/DC10-28V		DC10-28V	DC10-28V	DC10-28V
Power Consumption	<10w	<7w	<7w		<2w	<2w	<2w
Digital Input
Input Type	NPN/PNP	NPN/PNP	NPN/PNP		NPN/PNP	NPN/PNP	NPN/PNP
Input Signal 0	AC0-40V	DC0-5V	AC/DC0-5V		DC0-5V	DC0-5V	DC0-5V
Input Signal 1	AC80-240V	DC10-24V	AC/DC10-24V		DC10-24V	DC10-24V	DC10-24V
Isolation	Photoelectric isolation	/	/		/	/	/
Isolated Group	6/12 groups
Isolated Voltage	2500/5000Vr.m.s
Digital Output
Output Type	Relay	Relay	Relay		Transistor(NPN)	Transistor(PNP)	Transistor(NPN)
Isolation Method	Relay isolation	Relay isolation	Relay isolation		-	-	-
Analog Input
Input Type	--	(DC0-10V)/6 inputs	--		(DC0-10V)/6 inputs	(4-20mA)/2 inputs	--
		(DC0-10V)/12 inputs			(DC0-10V)/12 inputs	(DC0-10V)/12 inputs
