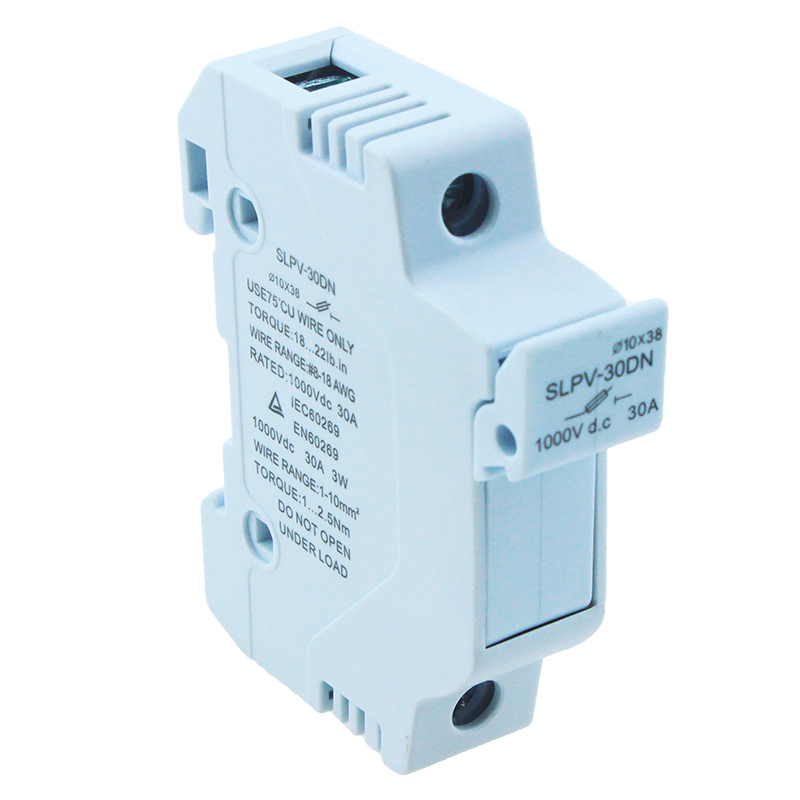

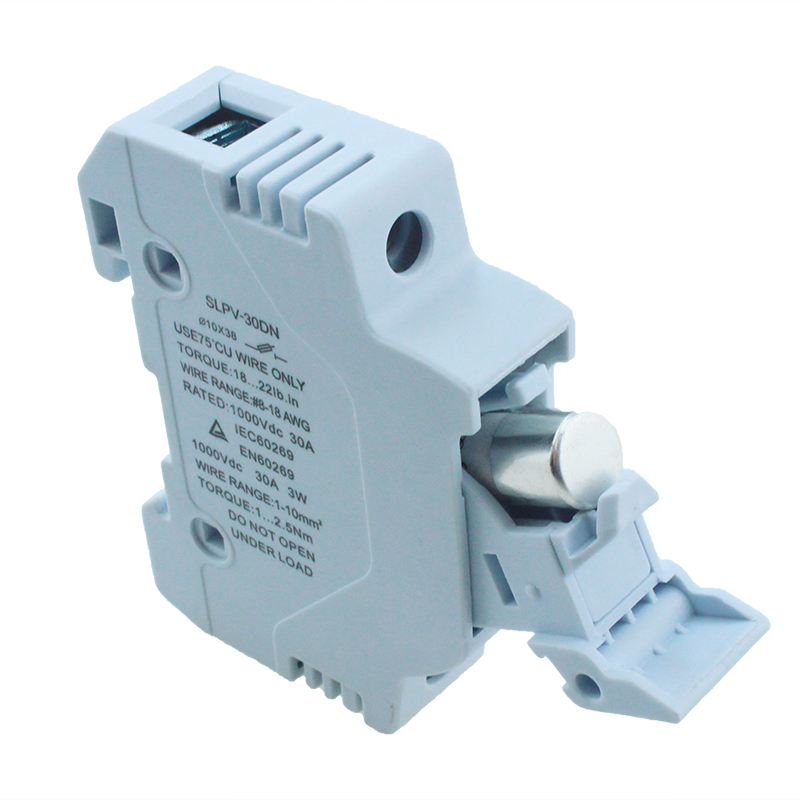

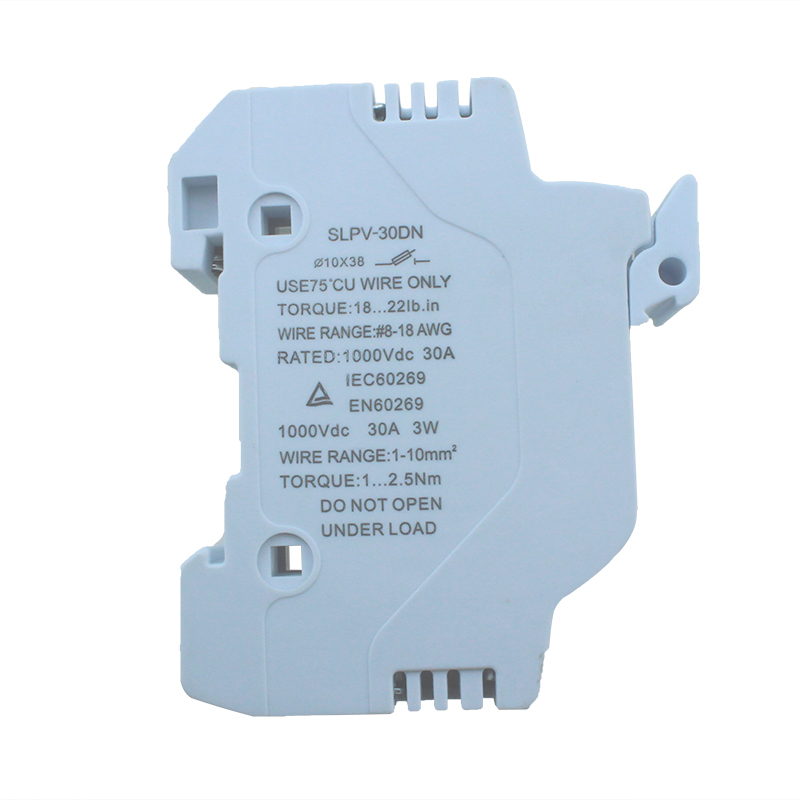

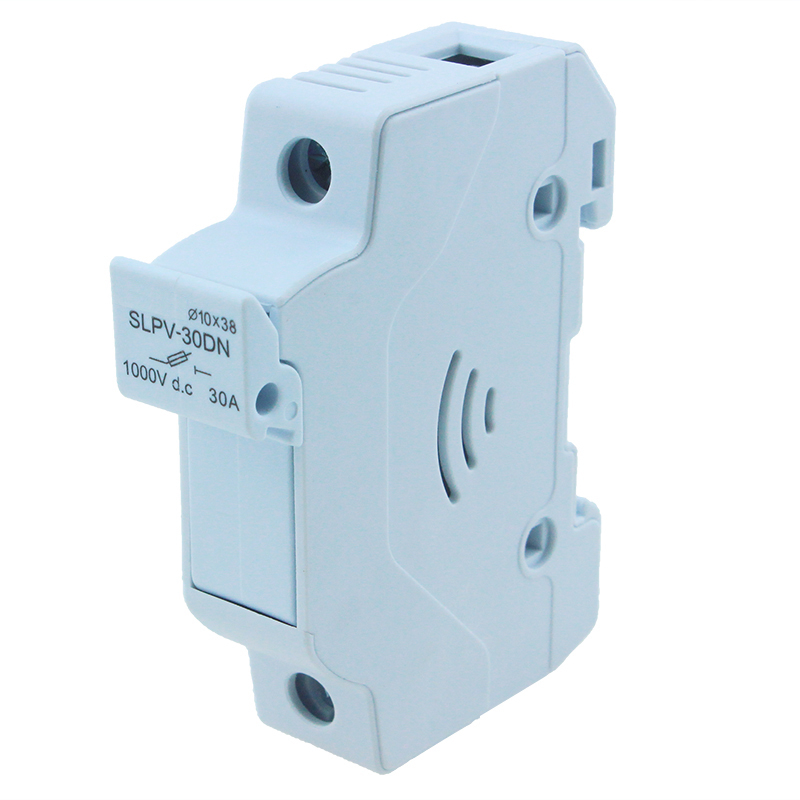

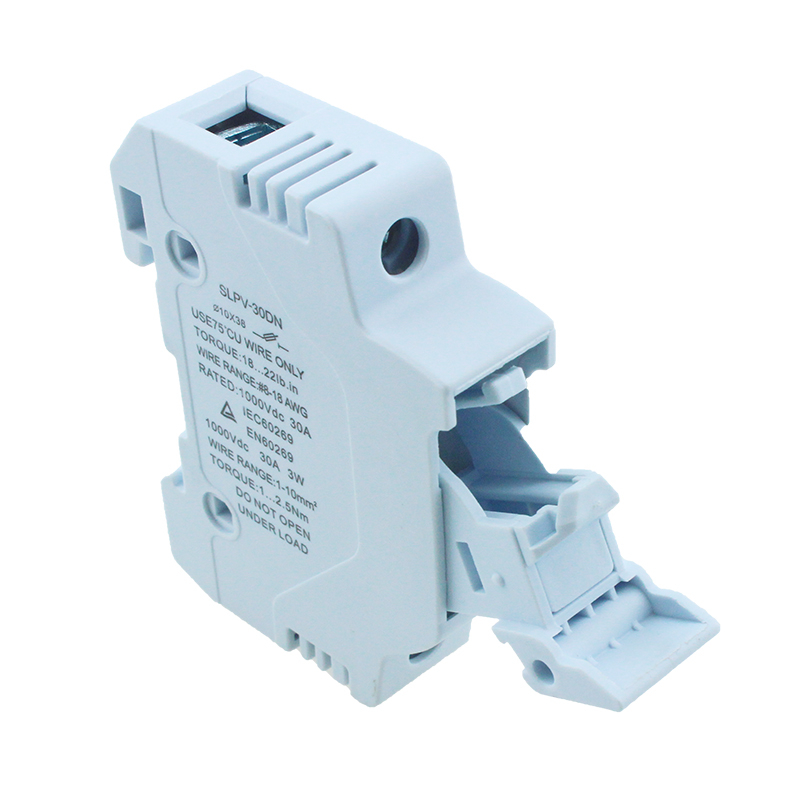

SLPV-30DN
Purpose and use
This series fuse is suitable for the line with rated DC voltage to 1000V and rated current to 32A. The batteries are connected in series and in parallel, and short-circuit breaking protection is provided for the charging converter system; meanwhile, for photovoltaic power stations, Road fault interruption protection; and fast break protection for surge current and short-circuit fault overvoltage of photovoltaic power generation system, rated interruption The capacity is up to 33KA, and the product meets the requirements of the International Electrotechnical Commission standard IEC60269.
Technical Speifications
| Fuse | Rated voltage | Rated current (A) | Dimensions(mm) | Power |

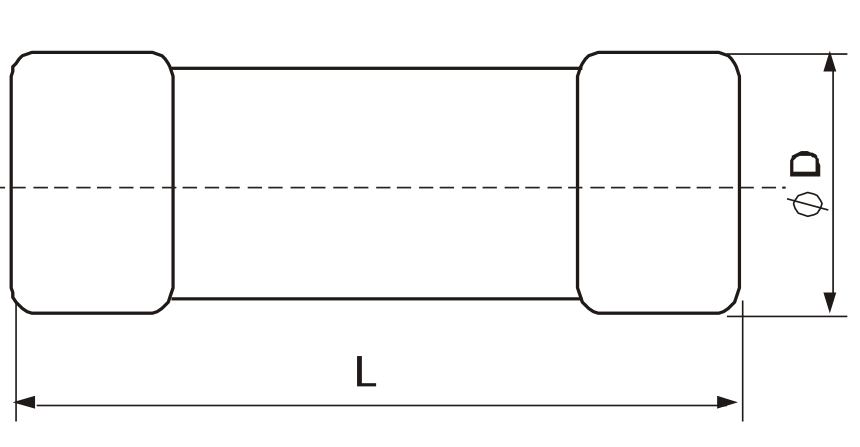

| SLPV-30 | DC1000V | 1,2,3,4,5,6,8,10,12,15,20,25,30,32 | 10.3±0.1*38±0.6 | ≤4.5W |
| Fuse Box | Fuse body size | Rated voltage | Rated current |

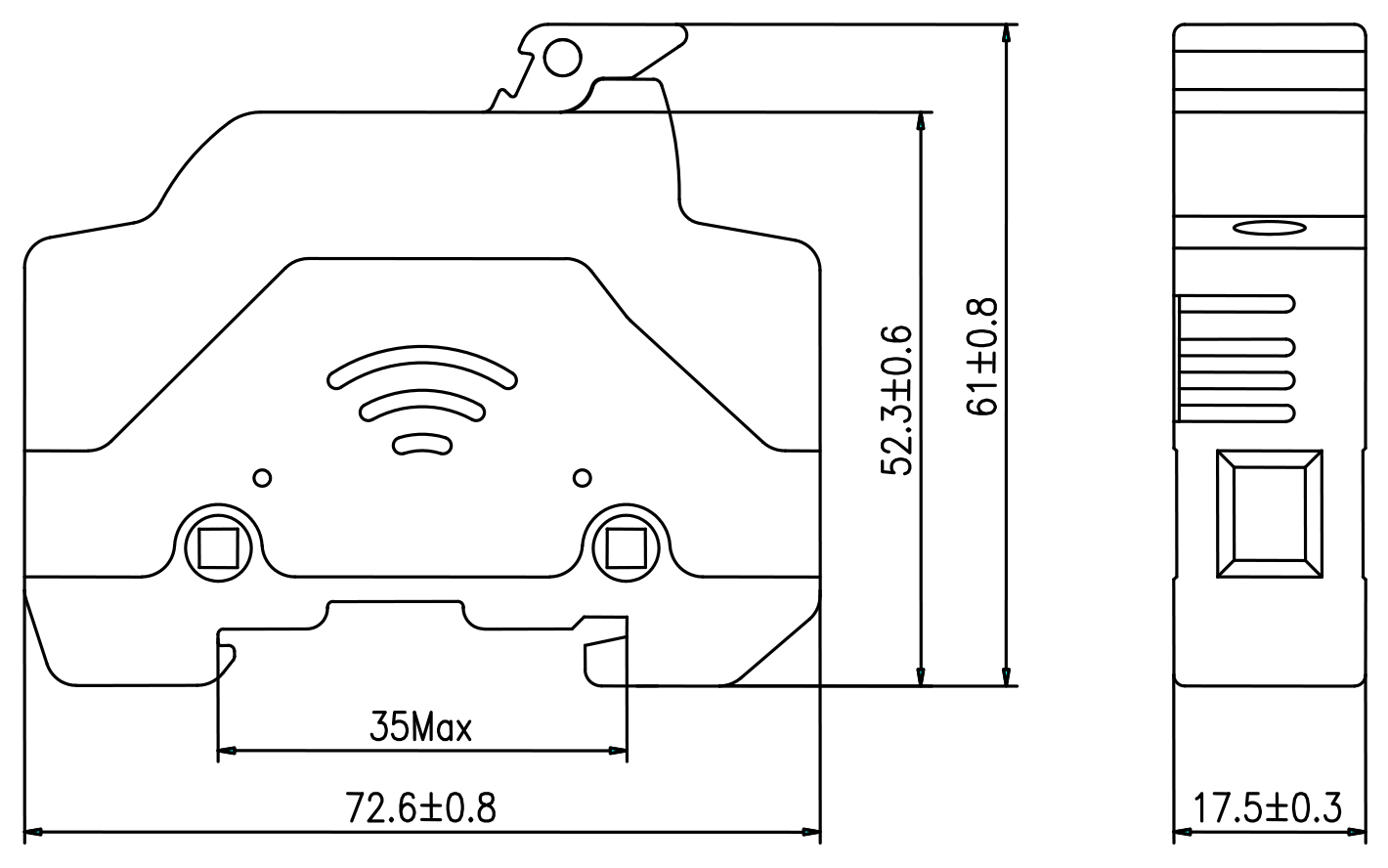

| SLPV-30DN | 10*38 | DC1000V | 32A |
