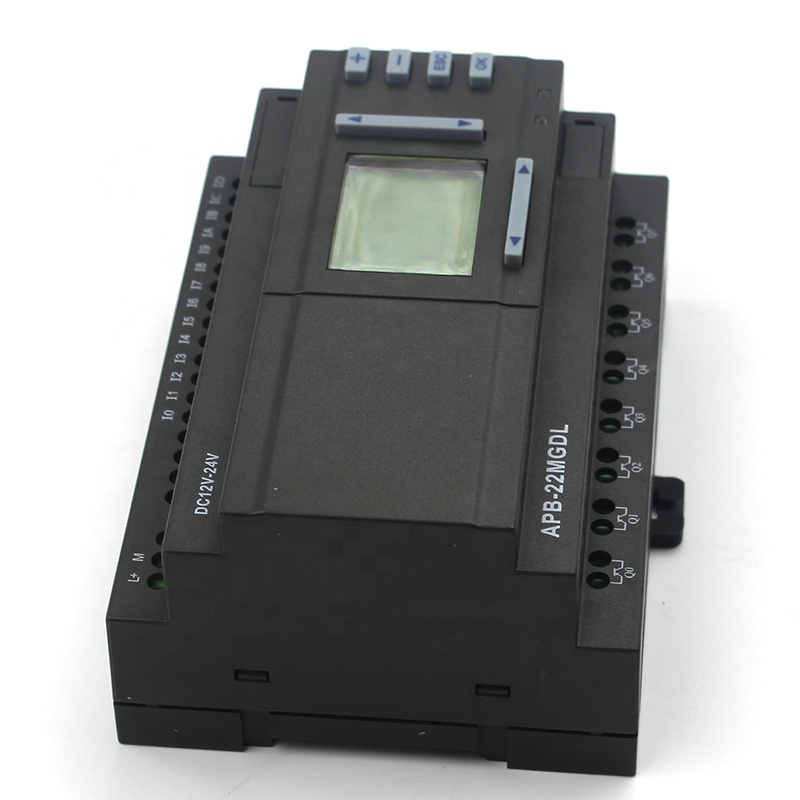

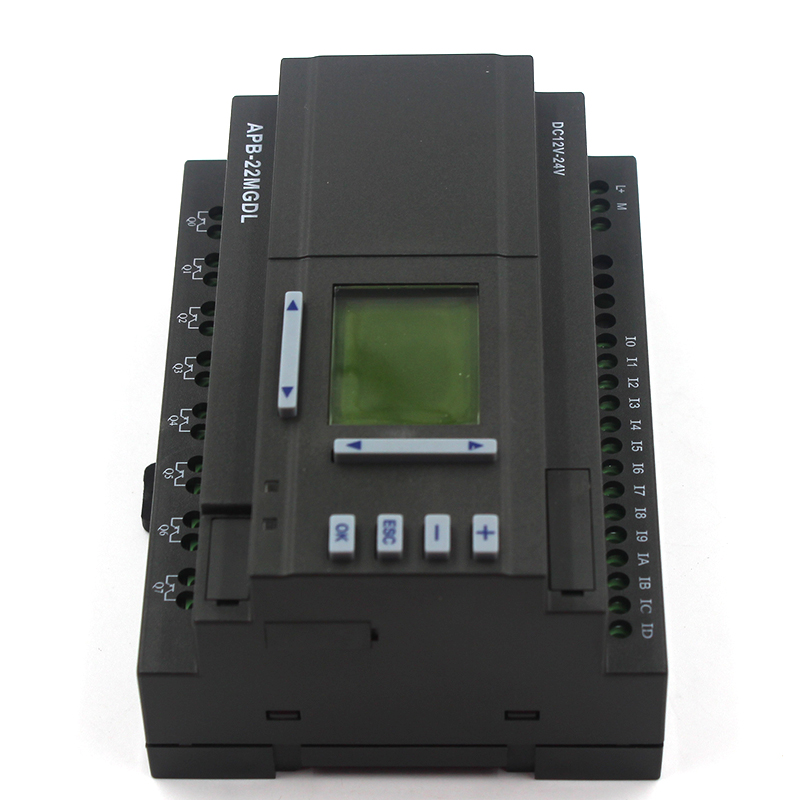

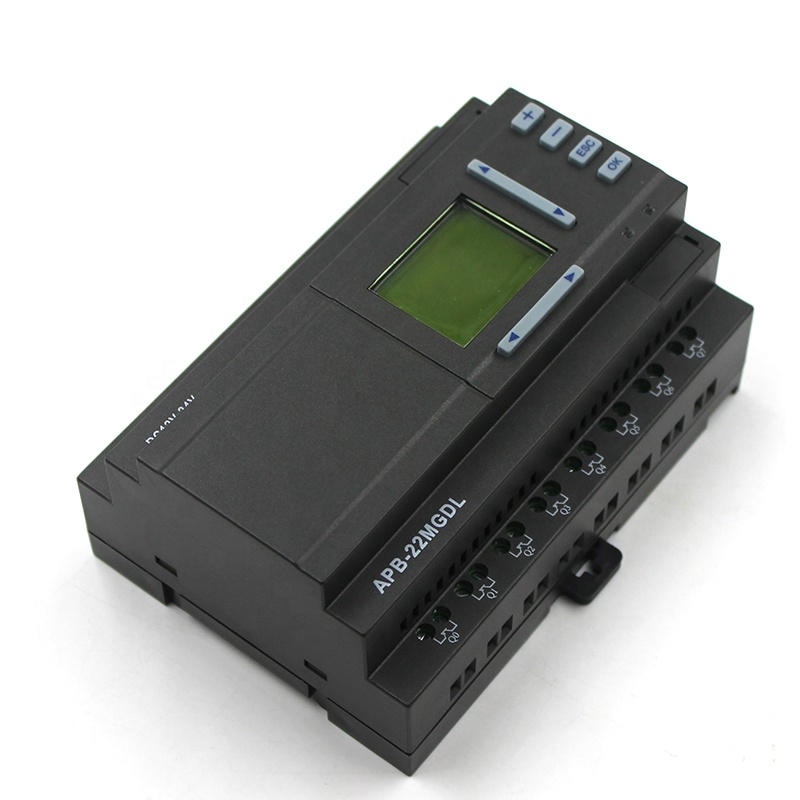

APB-22MGDL
DC12V-24V 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports 8 points PNP transistor output Q2、Q3 can be high-speed output ports
APB Series PLC
Features:
| Item | APB-12MRD(L) | APB-12MTD(L) | APB-12MGD(L) | APB-22MRA(L) | APB-24MRDL | ||
| APB-22MRD(L) | APB-22MTD(L) | APB-22MGD(L) | APB-12MRA(L) | ||||
| Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) | ||||||
| Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) | ||||||
| Ambient Temperature | -10℃～+55℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
| Ambient Humidity | 5%～95%RH | ||||||
| Degree of Protection | IP20(Non-waterproof) | ||||||
| Installation | Fixing with M3 screws or Standard DIN rail mounting | ||||||
| Dimensions (mm) | 71*99*58.5(12 points)；126*99*58.5(22 points)；126*99*58.5(24 points) | ||||||
| Programming Language | FBD | ||||||
| Points | 12 points/22 points/24 points/can support 7 I/O extension modules | ||||||
| Memory Capacity | 320 FBDs | ||||||
| Filtering Duration of Input Signal | It can be set to improve the stability of signal | ||||||
| Real-time Clock | 160h,can place a Li-ion battery if it is necessary | ||||||
| Password Protection | Multiple passwords protection | ||||||
| High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz | ||||||
| Analog Operation | At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA | ||||||
| Power Failure Protection | Yes | ||||||
| Simulate Monitoring | Yes | ||||||
| Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces | ||||||
| Baud Rate | 9600bps | ||||||
| Communication Protocol | MODBUS RTU | ||||||
| Power Supply | |||||||||
| Rated Voltage | DC12-24V | DC12-24V | DC12-24V | AC110-220V | DC12-24V | ||||
| Permissible Range | DC11-28V | DC11-28V | DC11-28V | AC85V-265V | DC11-28V | ||||
| Power Consumption | 3.5w | -- | -- | -- | -- | ||||
| Digital Input | |||||||||
| Input Type | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP | ||||
| Input Signal 0 | DC0-5V | DC0-5V | DC0-5V | AC0-70V | DC0-5V | ||||
| Input Signal 1 | DC8.5-28V | DC8.5-28V | DC8.5-28V | AC85-265V | DC8.5-28V | ||||
| Isolation | Non-isolation | Non-isolation | Non-isolation | Photoelectric isolation | Non-isolation | ||||
| Isolated Group | -- | -- | -- | 14 | -- | ||||
| Isolated Voltage | -- | -- | -- | 2500/5000Vr.m.s | -- | ||||
| Digital Output | |||||||||
| Output Type | Relay | Transistor(NPN) | Transistor(PNP) | Relay | Relay | ||||
| Rated Voltage | 24VDC/220VAC | 24VDC | 24VDC | 24VDC/220VAC | 24VDC/220VAC | ||||
| Isolation Method | Relay isolation | - | - | Relay isolation | Relay isolation | ||||
| Analog Input | |||||||||
| Input Type | (DC0-10V)/8 inputs | (DC0-10V)/8 inputs | (DC0-10V)/8 inputs | -- | (4-20mA)/2 inputs | ||||
| (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | ||||||
| Analog Output | |||||||||
| Output Type | -- | -- | -- | -- | 4-20mA/2inputs | ||||
| A/D Conversion | -- | -- | -- | -- | 12 bits | ||||
| Isolation | Non-isolation | Non-isolation | Non-isolation | Non-isolation | Non-isolation | ||||
| High-speed Operation | |||||||||
| 4 inputs /10KHz | 4 inputs /10KHz | 4 inputs /10KHz | -- | 4 inputs /10KHz | |||||
| Input Type | Support single-phase counter and two-phase counter | Support single-phase counter and two-phase counter | Support single-phase counter and two-phase counter | -- | Support single-phase counter and two-phase counter | ||||
| 2 outputs / 10KHZ | 2 outputs /10KHZ | ||||||||
| Output Type | -- | Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse | Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse | -- | -- | ||||
| Note: The economical type is supplied without LCD panel, and the basic type is supplied with LCD panel. | |||
| APB-12MRD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points relay output |
| APB-12MTD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points NPN transistor output |
| Q2、Q3 can be high-speed output ports | |||
| APB-12MGD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points PNP transistor output |
| Q2、Q3 can be high-speed output ports | |||
| APB-22MRA(L) | AC100V-240V | 14 points input | 8 points relay output |
| APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output |
| APB-22MTD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points NPN transistor output |
| Q2、Q3 can be high-speed output ports | |||
| APB-22MGD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points PNP transistor output |
| Q2、Q3 can be high-speed output ports | |||
| APB-24MRDL | DC12V-24V | 2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports | 6 points relay output + 2 analog outputs |
| APB-22ERA | AC100V-240V | 14 points digital input | 8 points relay output |
| APB-22ERD | DC12V-24V | 14 points digital input | 8 points relay output |
| APB-22ETD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
| APB-22EGD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
| APB-SMS | supports I/O control and SMS alarm, as well as receives and sends short message in another mode | |||||||
| APB-EXPMC | applied in the long-distance signal transmission interface and constitutes a nerwork with 485 bus | |||||||
| APB-EXNET | use cable network and TCP/IP protocol to link the remote netw | |||||||
