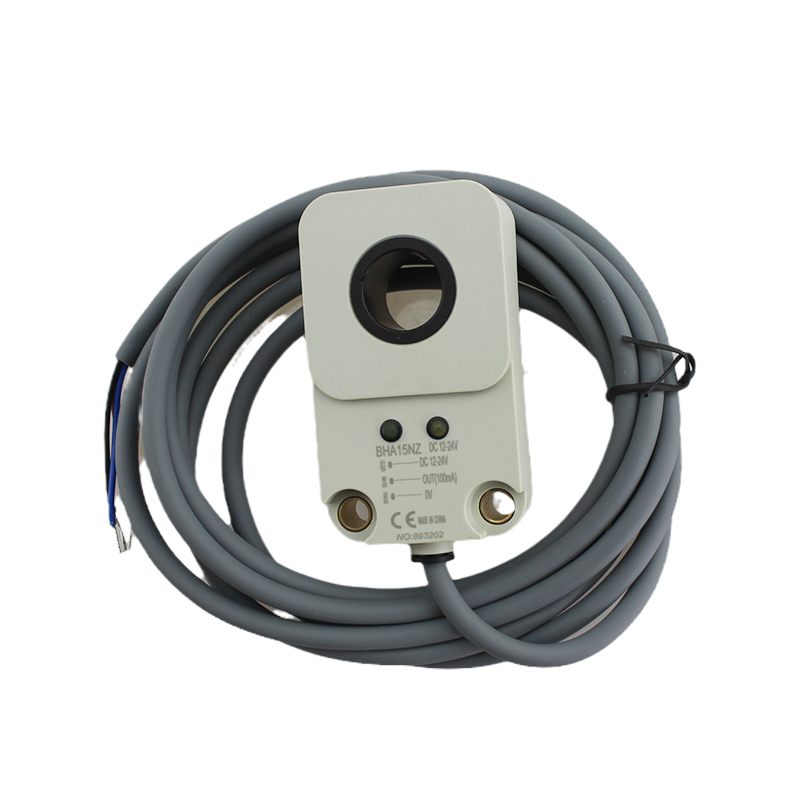

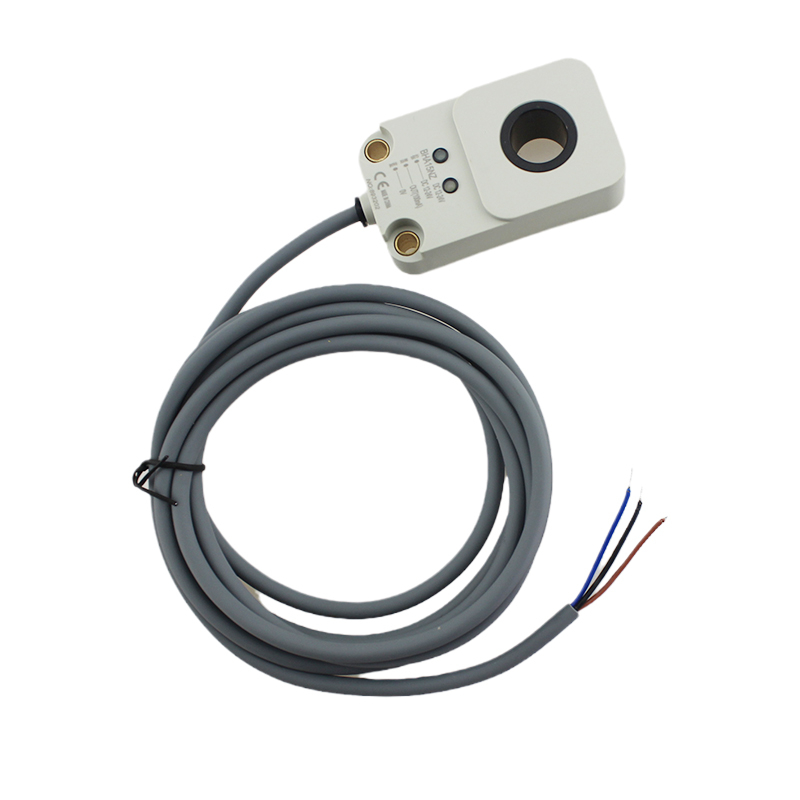

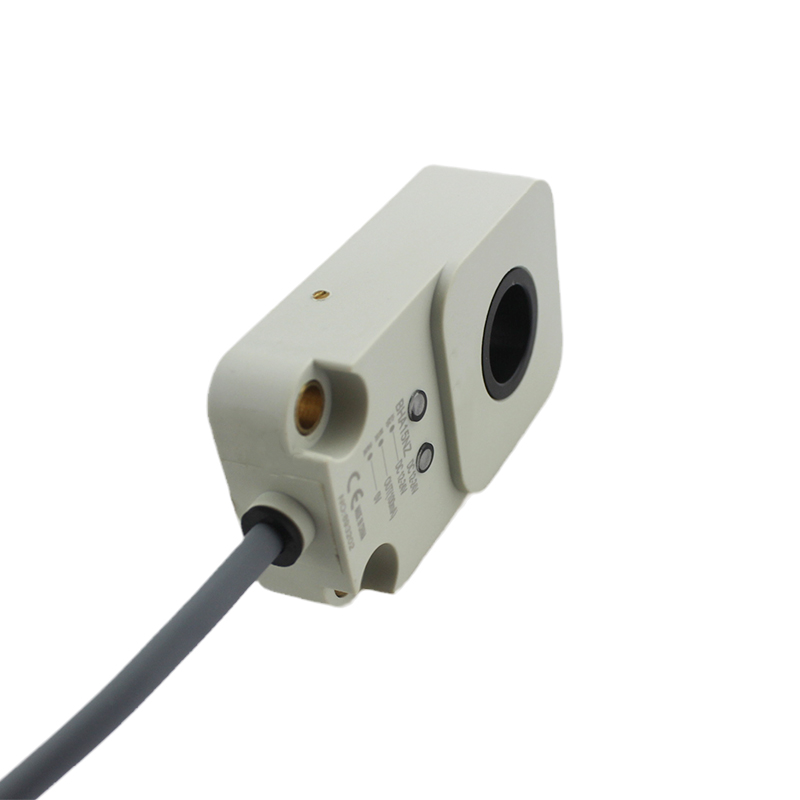

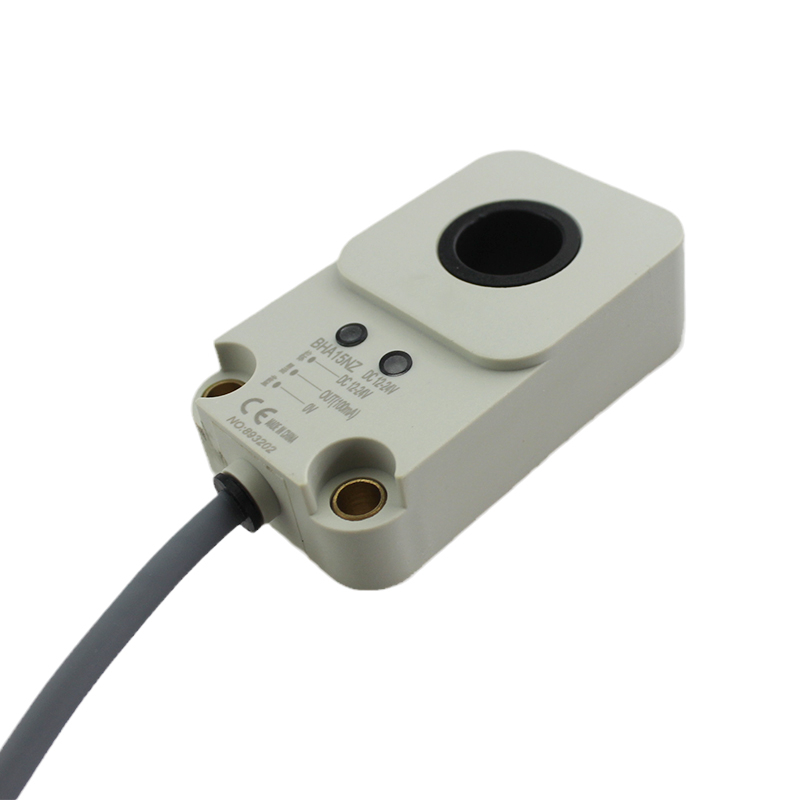

BHA15NZ
| Product name | Ring metal access switch |
| Model | BHA15NZ |

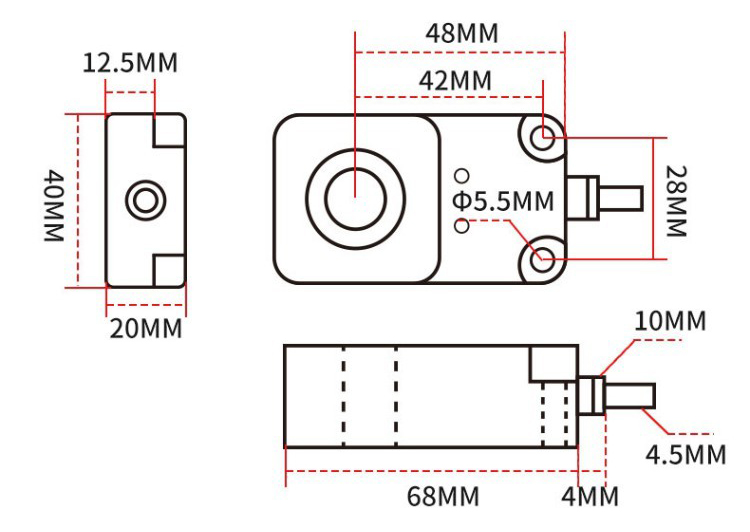

| Aperture diameter | 15mm |
| Minimum detector (diameter × length) | 1*6mm |
| Operating voltage | DC10-30VDC |
| Rated voltage | NPN NO |
| Protection mode | short-circuit polarity overcurrent |
| Pulse spreading | Built-in 200ms(MCU modulation) |
| Detection ability | 35m/s (support high speed blowing through) |
| Installation mode | Non-flush type |
| Maximum load | 150mA |
| Optimum detector | Magnetic metal |

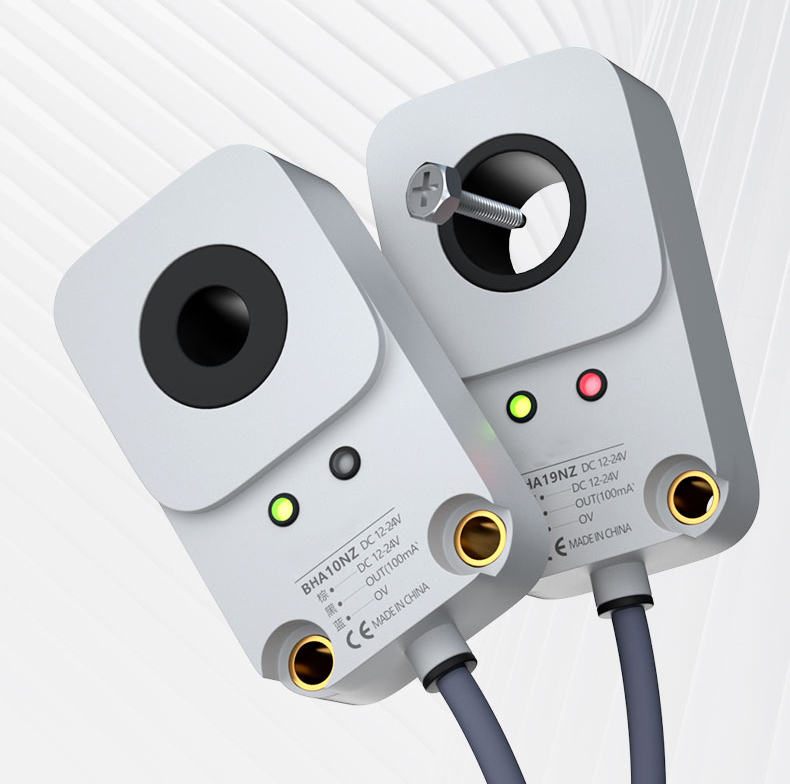

No dead Angle detection of metal objects, magnetic metal detection is the best.
Multiple protection security and stability,Effectively protect the product itself and protect the device from damage.(Short circuit protection, Overload protection, Reverse polarity protection)

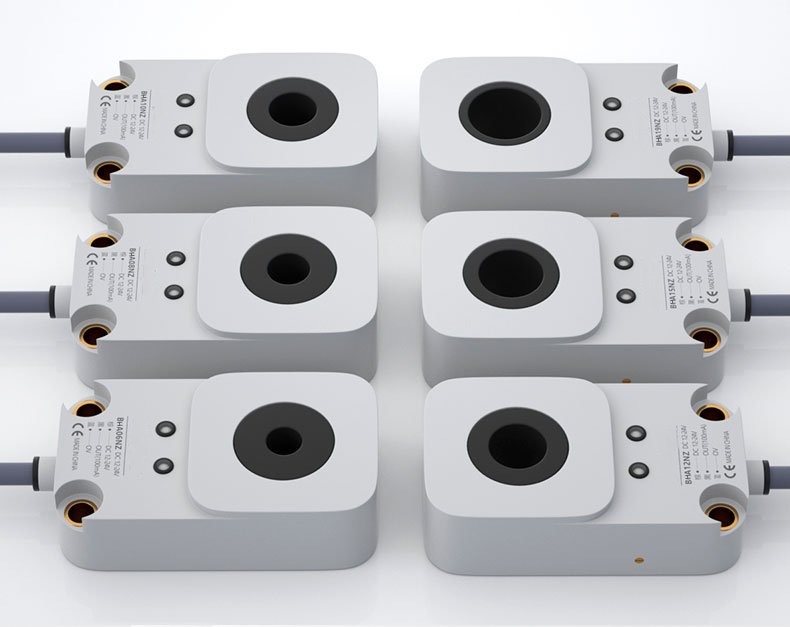

A variety of inner diameters are available.
Selected high-quality raw materials, original performance, strong anti-interference ability, the product comes with sensitivity adjustment function, can adjust the sensitivity according to the use of the environment.
Detection rate error-free induction metal object fast sound to avoid leakage.

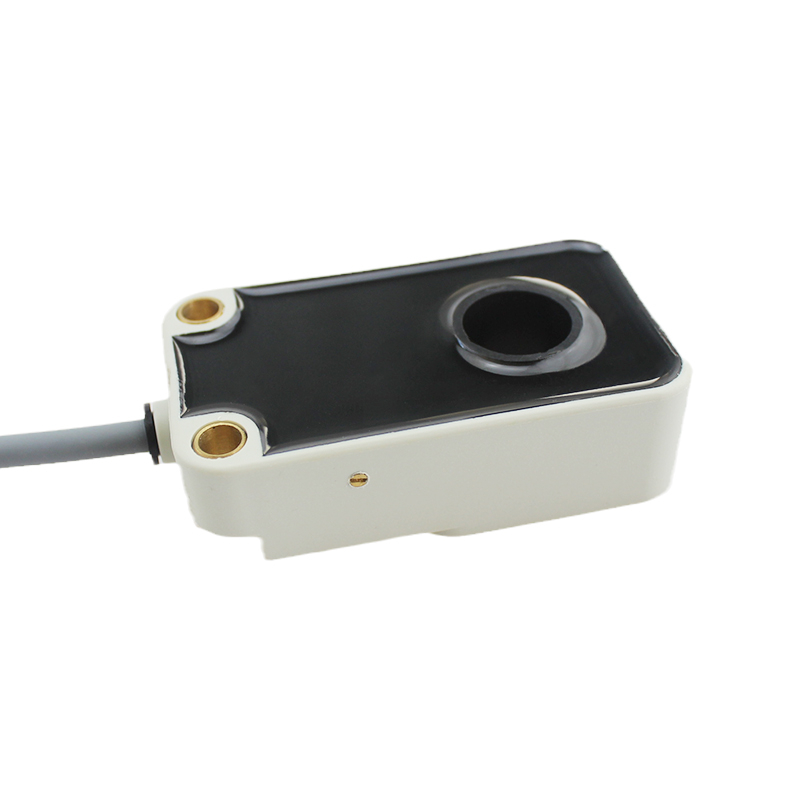

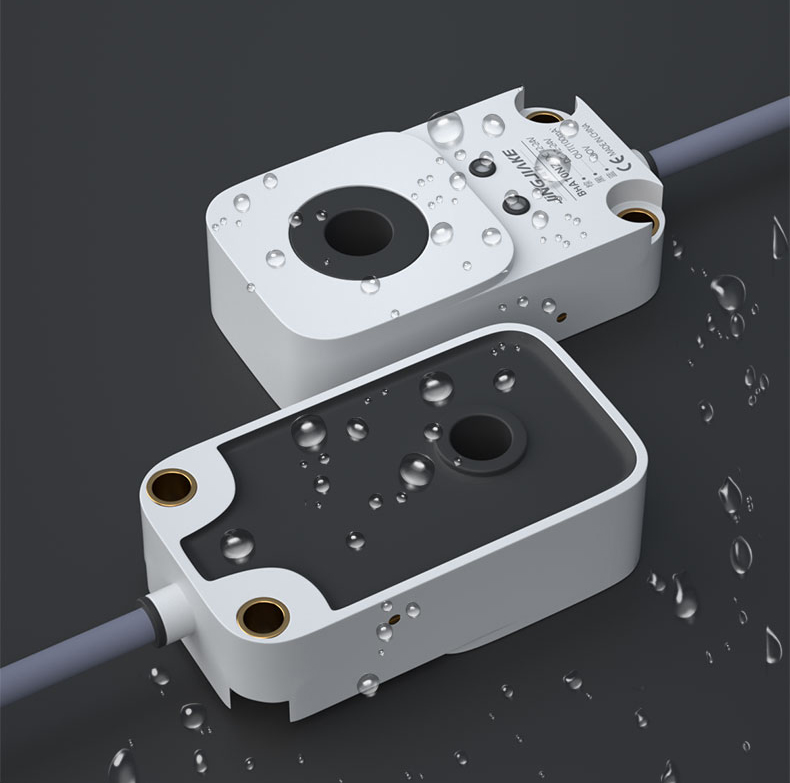

The housing has a sealed design, Excellent protection effect, effective anti-splash, anti-oil droplet, corrosion resistance, stable insulation and flame retardant performance, long service life.

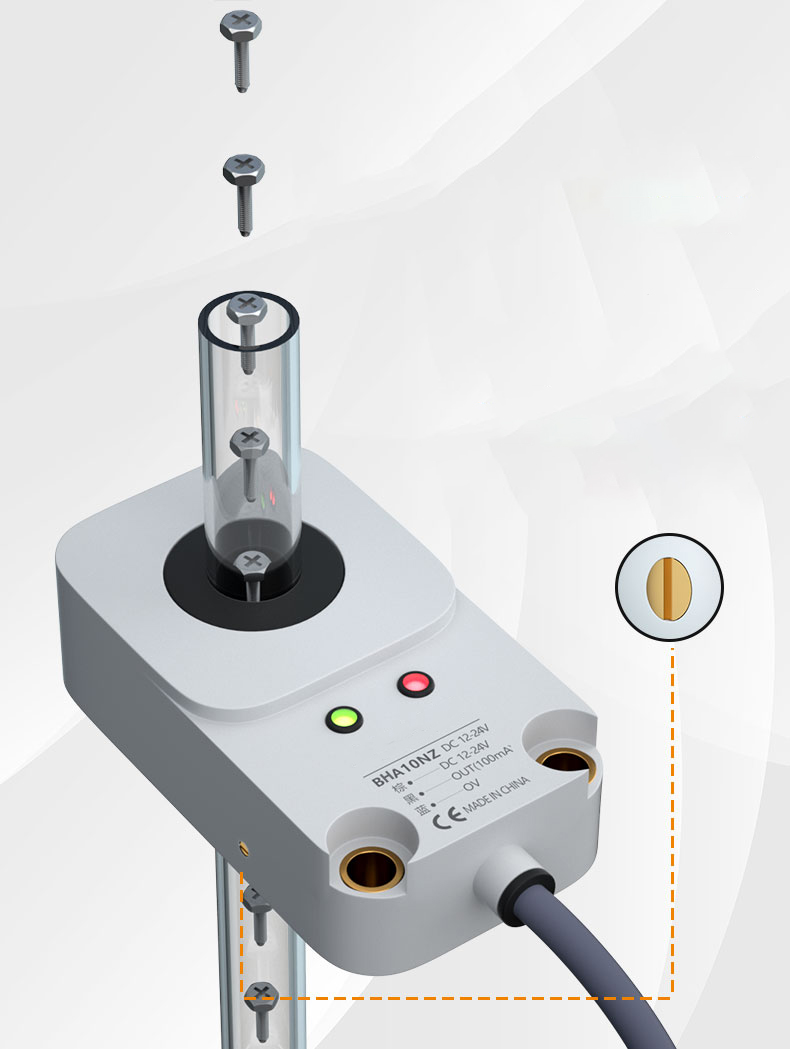

Multi-scenario detection of various small metal components.
Selected high-quality wires have excellent electrical conductivity.
