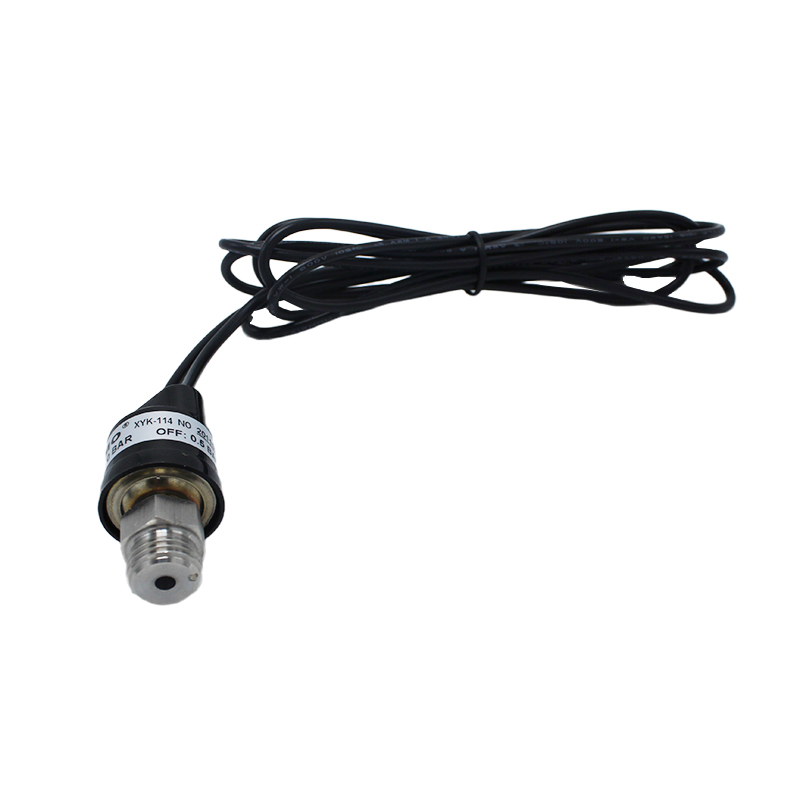

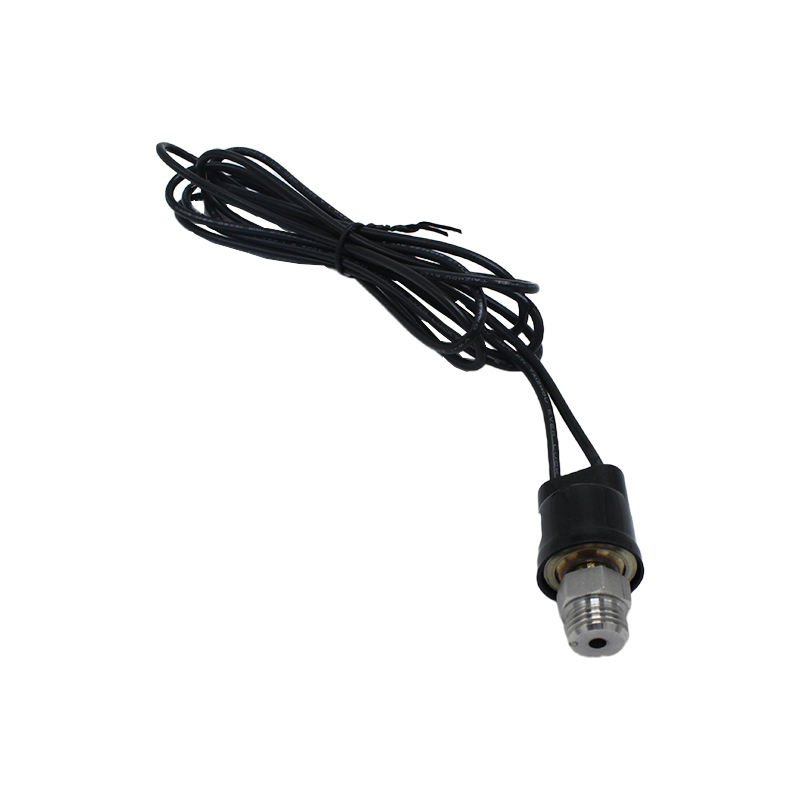

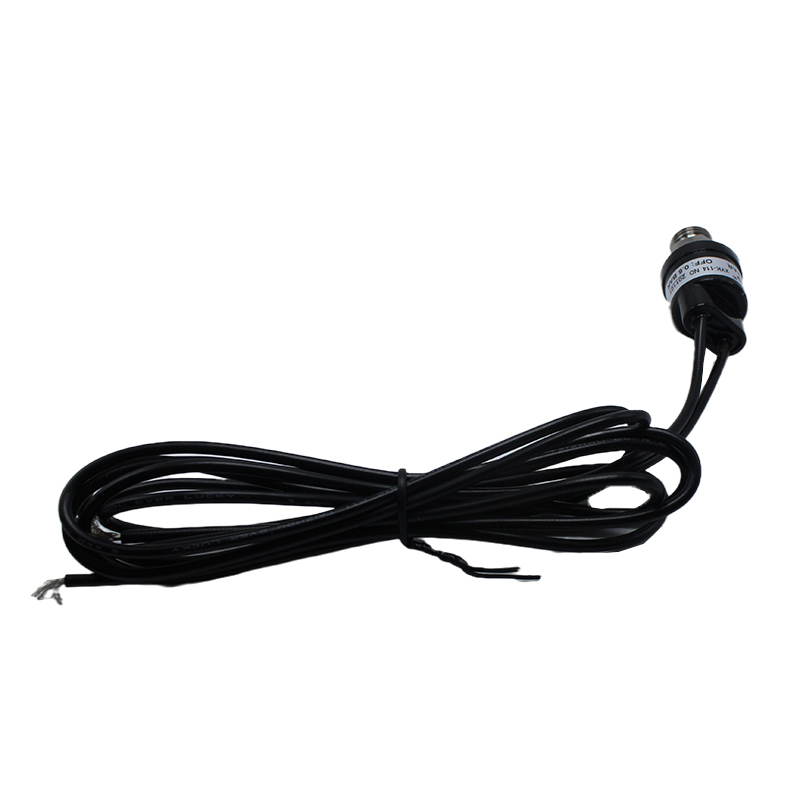

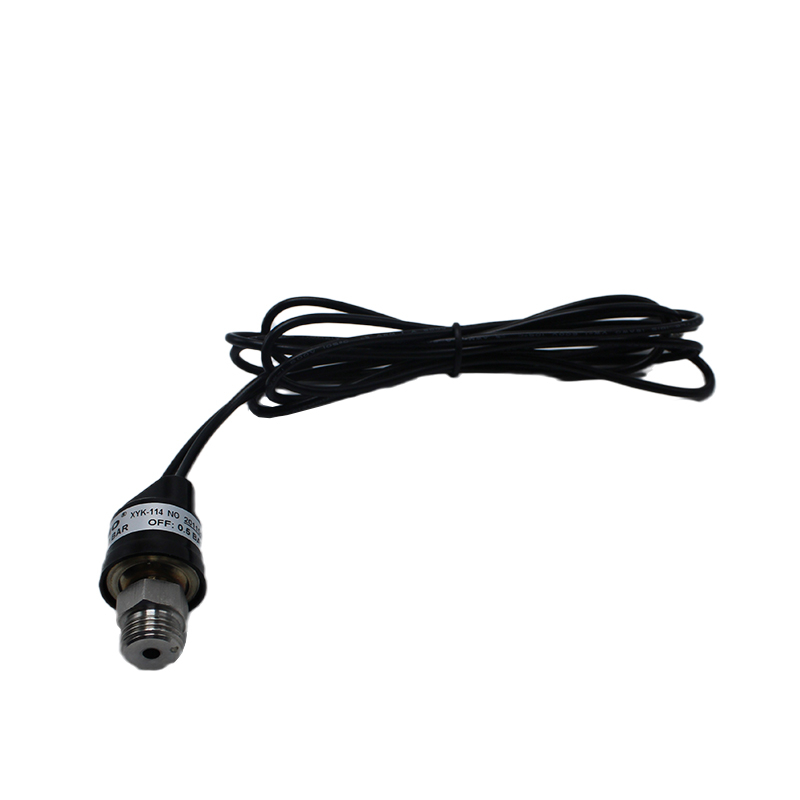

XYK-114S
1.Product Introduction of the Stainless Steel Thread Connector Pressure Switch
1.Automatic Reset Pressure switch designed.
2.Wide range of pressure settings & meet a board variety of application.
3.Used: Pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
4.Typical Applications: safety controls / air conditioning / refrigeration.
2.Product Parameter（Specification）of the Stainless Steel Thread Connector Pressure Switch
| Model | XYK-114S |
| Media | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 20 Bar |
| Max Operating Pressure | 25 Bar for actuation up to 10 Bar |
| 35 Bar for actuation from 10-20 Bar | |
| Proof Pressure | 35 Bar for actuation up to 10 Bar |
| 55 Bar for actuation from 10-20 Bar | |
| Operating Temperature Range | -30? C to ~ 80? C |
| Switch Type | Direct action, blade contact, SPST NC, NO |
| Electric Rating | 120/240VAC, 375VA |
| 24VAC/DC, 2A | |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fittig |
| Connetion lead out | wire |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4" |
| Options | various connector thread sizes |
3. FAQ
Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.
Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days. If without stock,or stock is not enough, we will check the delivery time with you.
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That’s a Door to Door service. For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
