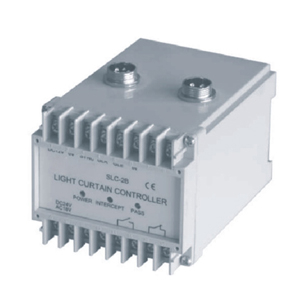

GLC-2B
Selection Of Convenient light curtain controller
1. Easy to connect
2. Directly connected to a light curtain sensor with a special connecting cable,or optionally using a terminal block
3. Two-relay output, monitor mutually,provide a set of NO or NC contacts for choice
4. Simple and practical
5. Compact size ,low power consumption, rall installation
Tecnical Parameter
| Supply voltage | AC220V ±10% |
| power consumption | 10VA |
| Respond time | 30ms以下 below 30ms |
| Output voltage | DC12V-24V |
| Input signal | NPN open collector input |
| Output | two-relay output,a set of NO contacts and a set of NC ones |
| Indication lamp | approx.200ms |
| Recovery time | shaded(red),pass (green),power(yellow) |
| Ambient temperature | at work; -5～+40℃( non frozen),in storage;-25～+55℃ |
| Shell material | ABS industrial plastic |
| Service life | internal relays operate no less than 100,000times,electrical work for 10,000hours |
| Protection level | IECIp20 |
