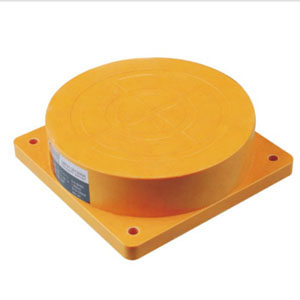

LMF41 inductive proximity switch, detection distance 0-120mm

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
  • LMF41

LMF41 series panel installation type inductive proximity switch

Sensing range 0-120mm , angular column inductive proximity switch. China offer customized design!


LMF41 Inductive proximity switch
Detecting rang mm 0-120MM part no.
Non-flush DC 6-36V NPN NO LMF41-30120NA
NC LMF41-30120NB
NO+NC LMF41-30120NC
PNP NO LMF41-30120PA
NC LMF41-30120PB
NO+NC LMF41-30120PC
2 Wires NO
NC
AC 90-250V SCR NO LMF41-20120A
NC LMF41-20120B

NO+NC LMF41-20120C
Relay output LFM41-20120JC
LMF41 Inductive proximity switch  Characteristics
Output current DC 200mA
SCR/relay 300mA/2A/10A
Output voltage drop DC≤1.5V /DC(Two wire system)≤5V/ AC≤7V
Consumption current DC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA
Standard detected object 260×260×1(A3 iron)
Repeated precision 0.5
Response Frequency 10Hz/5Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50MΩ
Shell material Glass fiber reinforced plastic
Protection grade IEC Standard IP65
Alternative model  TCC-2120□

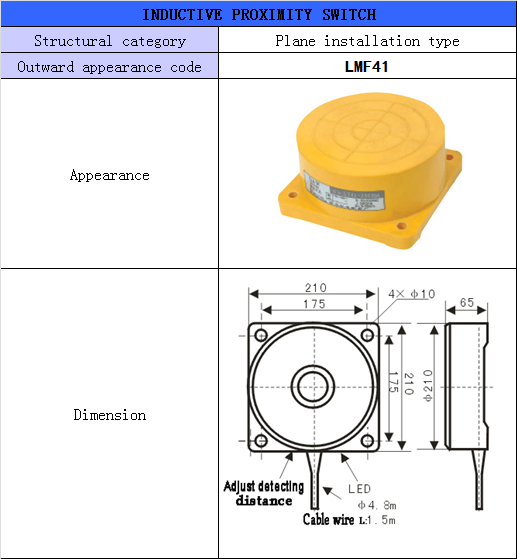

LMF41 proximity switch Dimension
