LM34

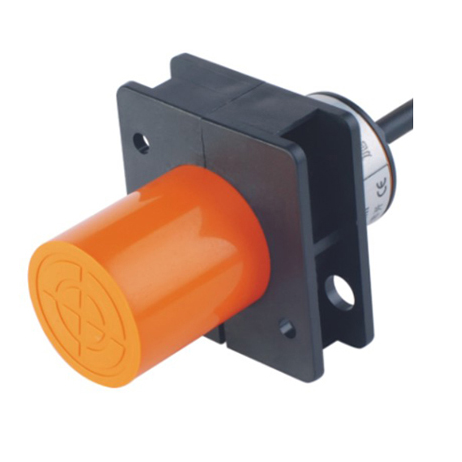

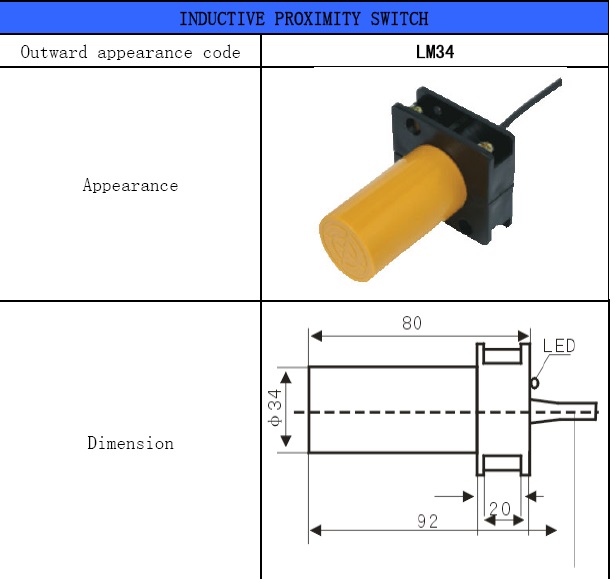

LM34 series cylinderical inductive proximity switch
Outside diameter 34mm cylinder inductive proximity switch, sensing range 17mm . China offer customized design!
Installation | Flush | Non-flush | |||||
DC | 3 wires | NPN | NO | LM34-3017NA | |||
NC | LM34-3017NB | ||||||
NO+NC | LM34-3017NC | ||||||
PNP | NO | LM34-3017PA | |||||
NC | LM34-3017PB | ||||||
NO+NC | LM34-3017PC | ||||||
2 Wires | NO | LM34-3017LA | |||||
NC | LM34-3017LB | ||||||
AC | SRC Control label silicon | NO | LM34-2017A | ||||
NC | LM34-2017B | ||||||
Relay output | NO+NC | LM34-2017JC | |||||
Detecting rang | 17mm | ||||||
LM24 Sensor Characteristics | |||||||
Output current | DC | 200mA | |||||
SCR/relay | 300mA/1A | ||||||
Output voltage drop DC/AC | DC<3V; AC<10V | ||||||
Consumption current | DC<15mA; AC<10mA | ||||||
Standard detected object | 34×34×1(A3 Iron) | ||||||
Repeated precision | 0.1 | ||||||
Response Frequency | 100Hz/15Hz | ||||||
Working environment temperature | -25℃ ~+75℃ | ||||||
Insulation resistance | 50MΩ | ||||||
Shell material | ABS Resin | ||||||
Protection grade | IP67 |
