SNM022A-0410-03S

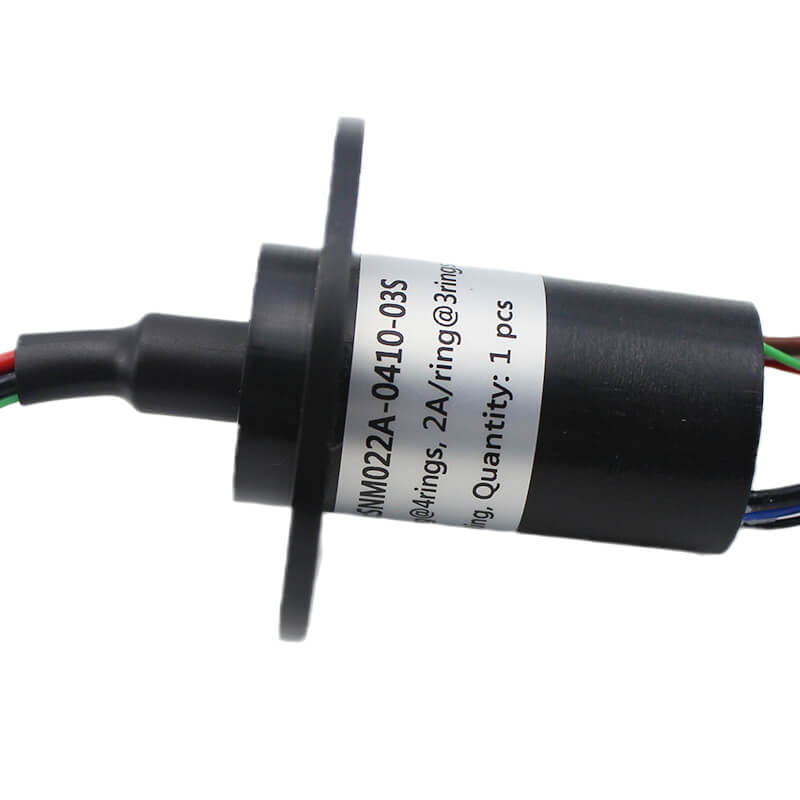

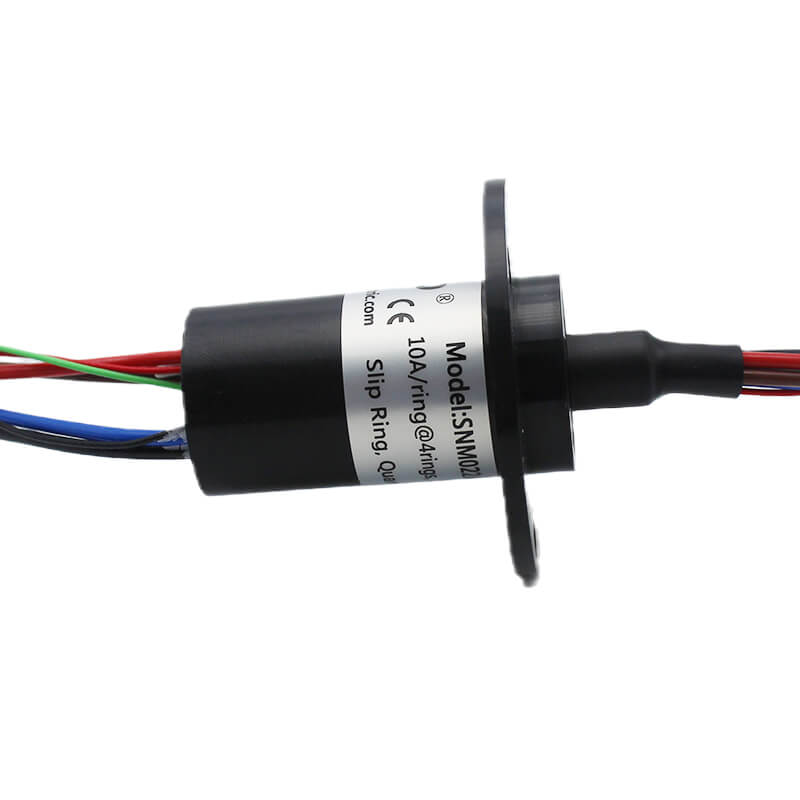

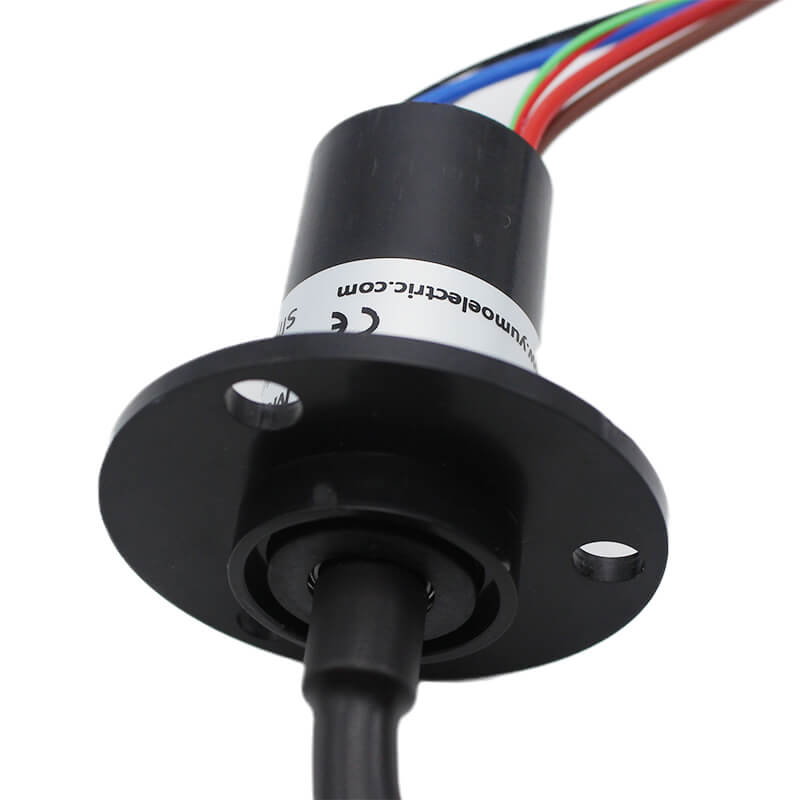

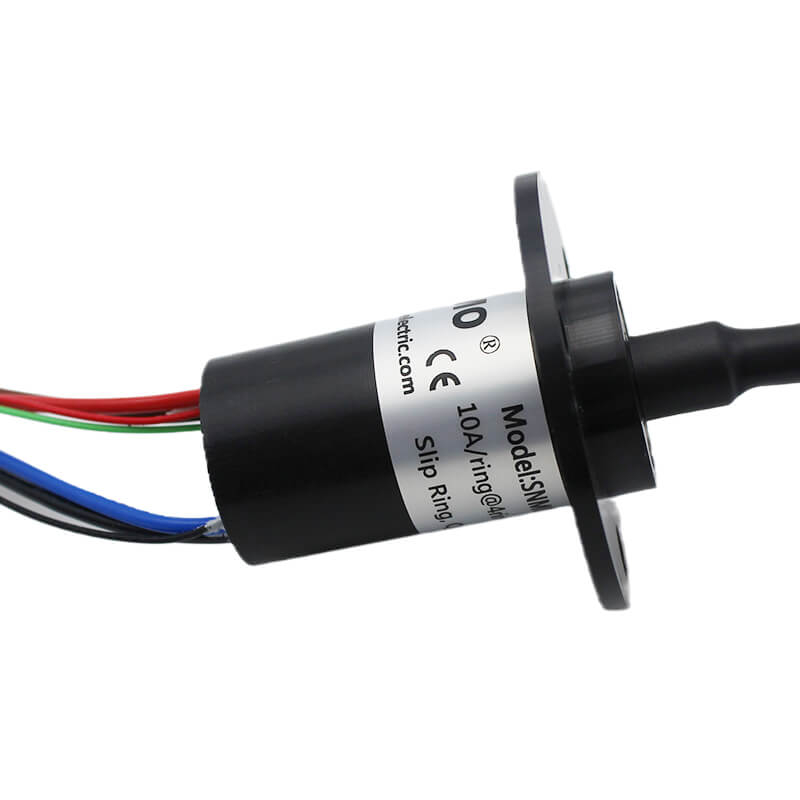

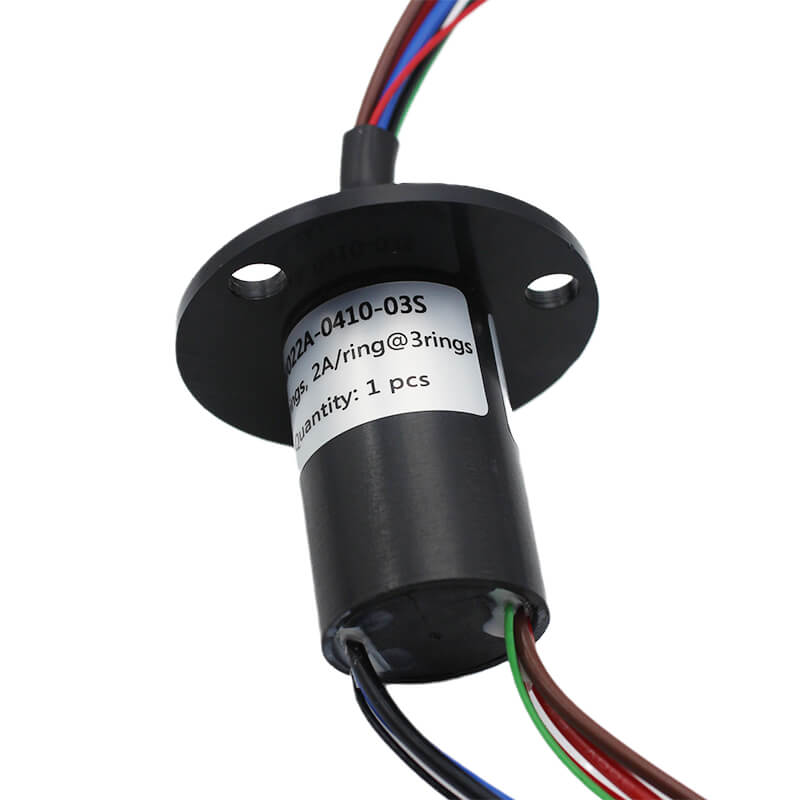

Slip Ring SNM022A-0410-03S OD22mm 10A Slip Ring
Electric data:
Specification | Unit |
Voltage | 240VDC-240VAC |
Current | Standard Product: 10A/Ring The current can be made on customers request, e.g. combine 3 rigs to get 30 A |
Lead size | AWG28.AWG26:2A, AWG16:10A Colour coded FPE insulated lead wires |
Standard Lead length | 250mm (other lengths on request) |
High pot | 500VAC@60HZ, 60s |
Insulation Resistance | 1000MΩ/500VDC |
Dynamic contact Resistance | 0.01Ω |
Mechanical data:
Specification | Unit |
Operate Speed | 250 rpm |
Temperature range | -20 - + 80 |
Contact material surface | Gold - gold |
The steel bearing | The precise small steel ball bearing |
