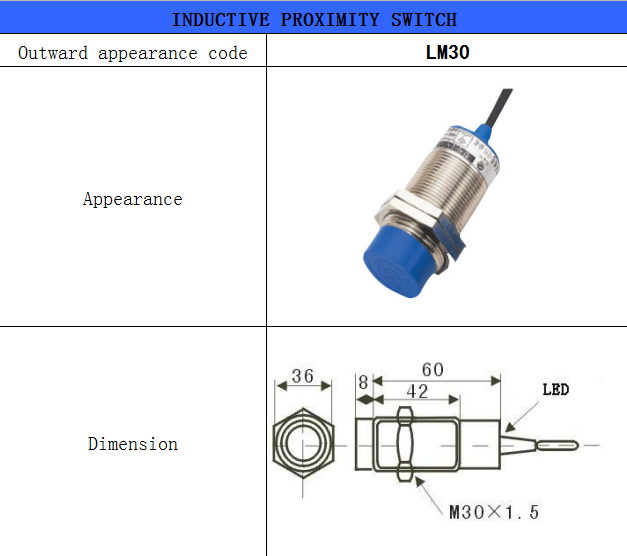

Proximity Switch Sensor Detecting Rang 25mm

In common words, proximity switch is a device that can sense the proximity of objects and perform corresponding switch action. Proximity switch is a position switch that can be operated without mechanical contact with moving parts. When the object approaches the sensing surface of the switch to the action distance, it does not need mechanical contact and any pressure to make the switch act。
Availability:
  • LM30-3025PA

    The proximity switch has the characteristics of long service life, reliable operation, high repeated positioning accuracy, no mechanical wear, no spark, no noise and strong anti vibration ability.

1

Non-flush Detection distance 25mm

NPN NO 3025NA

NC 3025NB
DC NO+NC 3025NC
6 PNP NO 3025PA
NC 3025PB
36 NO+NC 3025PC
V two wire system NO 3025LA

NC 3025LB
AC SRC Control label silicon  NO 2025A
90 NC 2025B
~250 NO+NC 2025C
V Relay output 2025JC
Control output DC 200mA
SCR/Relay 300mA
Output voltage dropDC/AC DC<3V  AC<10V
Consumption current DC<15mA  AC<10mA
Standard detected object 30×30×1(A3 iron)
Repeated precision 0.05
DC/AC Response frequency 200Hz/25Hz
Working environment temperature –25℃~75℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IEC standard IP67
