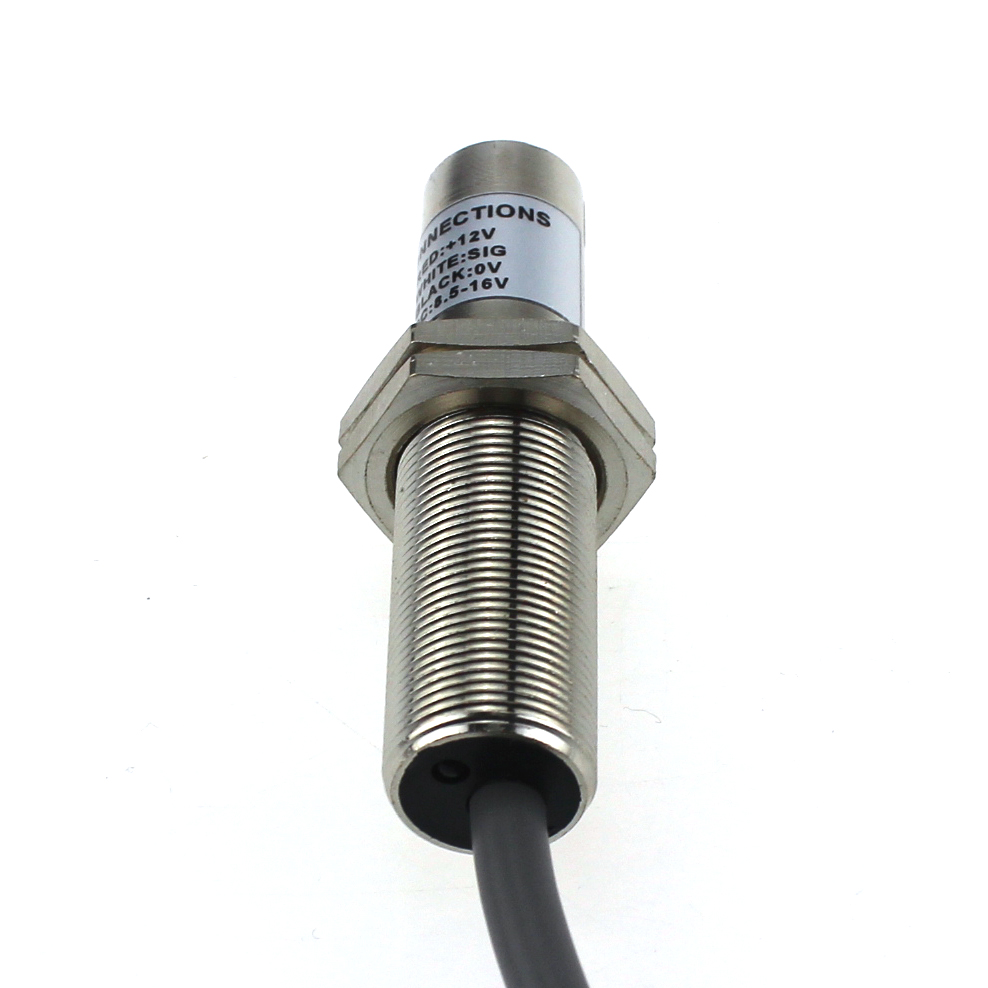

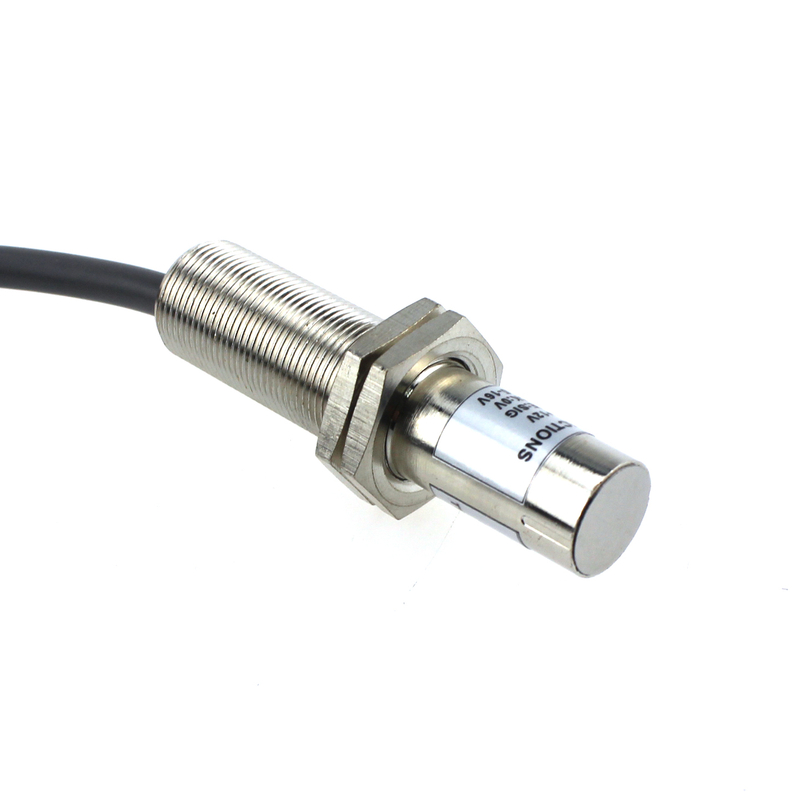

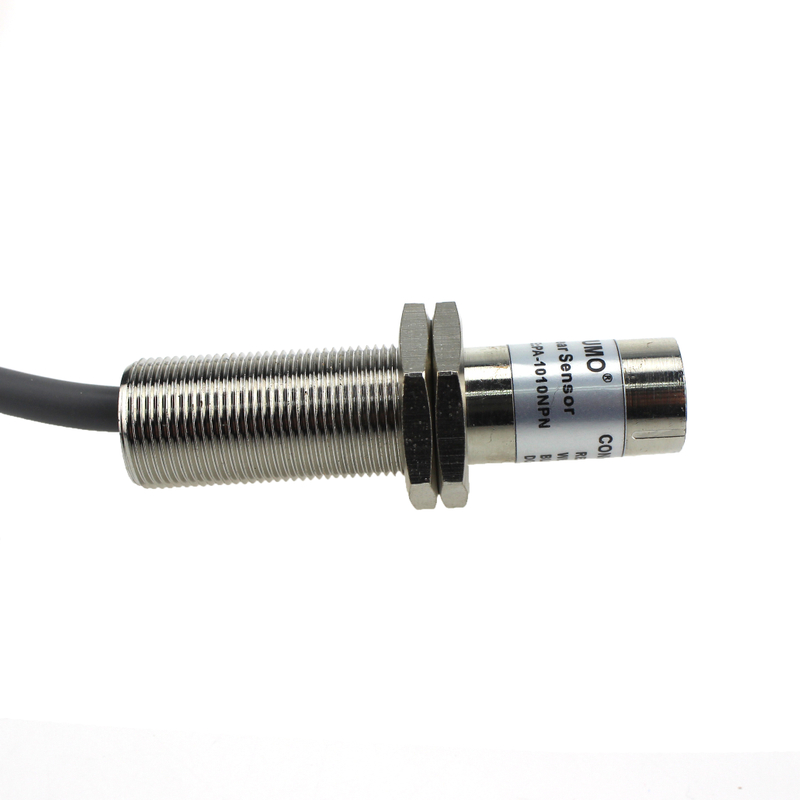

PA-1010NPN Inductive Proximity Switch Sensor

Proximity switches is the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . China Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , will be your best choice .
Availability:
  • PA-1010NPN

PA-1010NPNinductive proximity switch
Outside diameter 15mm cylinder inductive proximity switch, sensing range from 0.2mm~3mm . China offer customized design!

Feature DescriptionItem CodePA-1010
No touch detectionReplace of Nemicon PA1010
Quick Response and high frequency
Surge protection
Housing Material:Copper
IP Grade:IP64
Specification
Operation voltage10…30VDC
Installation typenon-flush
Detection distance0.2-3mm
Size16*60
Output typeNPN
Leakage current<0.01mA
Setting diatance0.1...3mm
Standard detected objectRack, gear
Operating frequency 15000Hz
Consumption current≤15mA
Load current100mA
Voltage drop≤1.8V
Lag1...15%
Repeat accuracy≤2%
LED displayLED(red)
Protection
Operating Temperature-25...70ºC
Temperature drift<±10%
IP gradeIP67
Housing Materialcopper
Surface materialcopper
Weight152g
