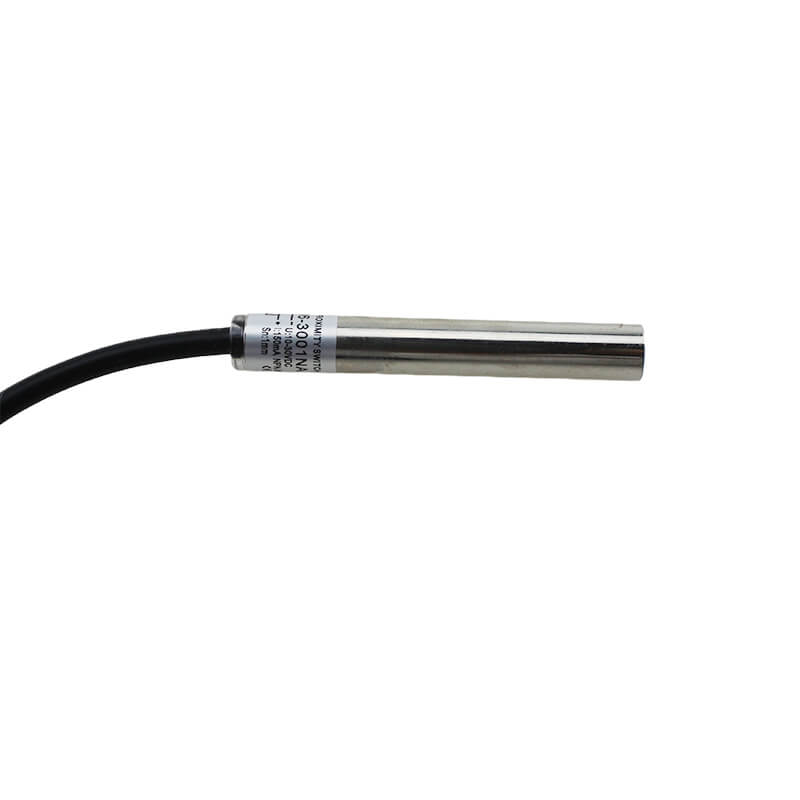

LM6-3001NA NPN NO Flash NPN Proximity Sensor Proximity Probe Proximity Sensor Range


compact volume
high precision repeated location
diversified exterior structures
good performance of anti-interference
many output forms
Availability:
Inquire Add to Basket

  • LM6-3001NA

                LM6-3001NA NPN NO Flash NPN Proximity Sensor Proximity Probe Proximity Sensor Range

Main Features

  • Compact volume

  • High precision repeated location

  • Diversified exterior structures

  • Good performance of anti-interference

  • Many output forms

  • High on-off frequency

  • Wide voltage range

  • Dust proof, vibtation proof, water proof and oil proof

  • With short-circuit protection and inverted connecting protection

  • Long service life

 Technical Specifications

Structural category Connector type
Overall dimensions LM6接近开关系列尺寸图
Outward Appearance code LM6
DETECTION DISTANCE 1mm
Flush

10-30 VDC

 NPN NO LM6-3001NA
Output current 200mA
Output voltage drop DC/AC DC≤3V  AC≤10V
Consumption current DC≤15mA AC≤10mA
Standard detected object 8*8*1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz
Working environment temperature –25℃~+75℃
Insulation resistance ≥30MΩ
Shell material Stainless steel
Protection grade IP67
