Cylinder Type DC 15mm Inductive Proximity Sensor Switch

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch ,  will be your best choice .
Availability:
  • LM30-3015PA


cylinder type DC 15mm inductive proximity sensor switch

LM30 Inductive proximity switch
DETECTION DISTANCE  10mm
Flush DC
10-30
VDC





AC
90-250
VAC
  NPN NO LM30-3010NA
NC LM30-3010NB
NO+NC LM30-3010NC
  PNP NO LM30-3010PA
NC LM30-3010PB
NO+NC LM30-3010PC

2 Wires

system

NO LM30-3010LA
NC LM30-3010LB
SCR NO LM30-2010A
NC LM30-2010B
NO+NC LM30-2010C
Relay output LM30-2010JC
Detecting rang 8mm 15mm
Non-flush DC
10-30
VDC





AC
90-250
VAC
NPN NO LM30-3015NA
NC LM30-3015NB
NO+NC LM30-3015NC
PNP NO LM30-3015PA
NC LM30-3015PB
NO+NC LM30-3015PC

2 Wires

system

NO LM30-3015LA
NC LM30-3015LB
SCR NO LM30-2015A
NC LM30-2015B
NO+NC LM30-2015C
Relay output LM30-2015JC
Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC/AC DC< 3V  AC< 10V
Consumption current DC<15mA  AC<10mA
Standard detected object 30*30*1(A3 Iron)
Repeated precision 0.05
Response Frequency 200Hz/25Hz
Working environment temperature   -25℃~+65℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

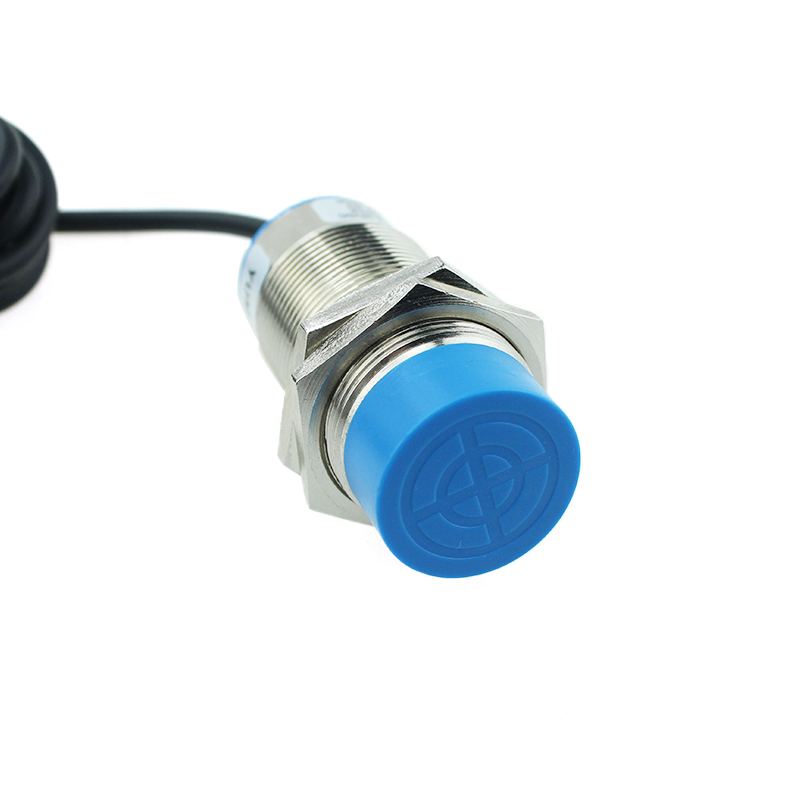

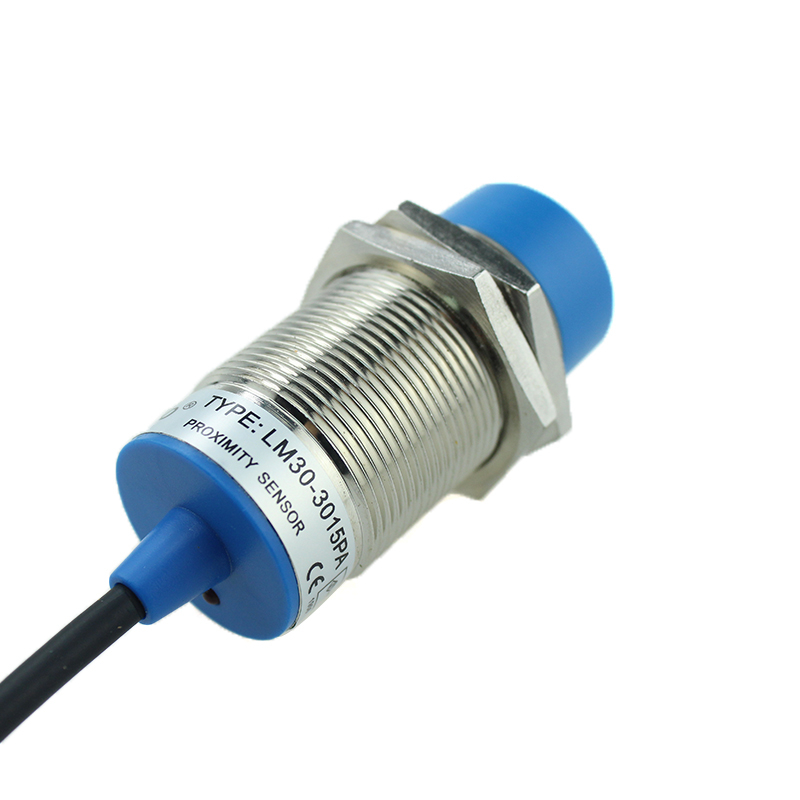

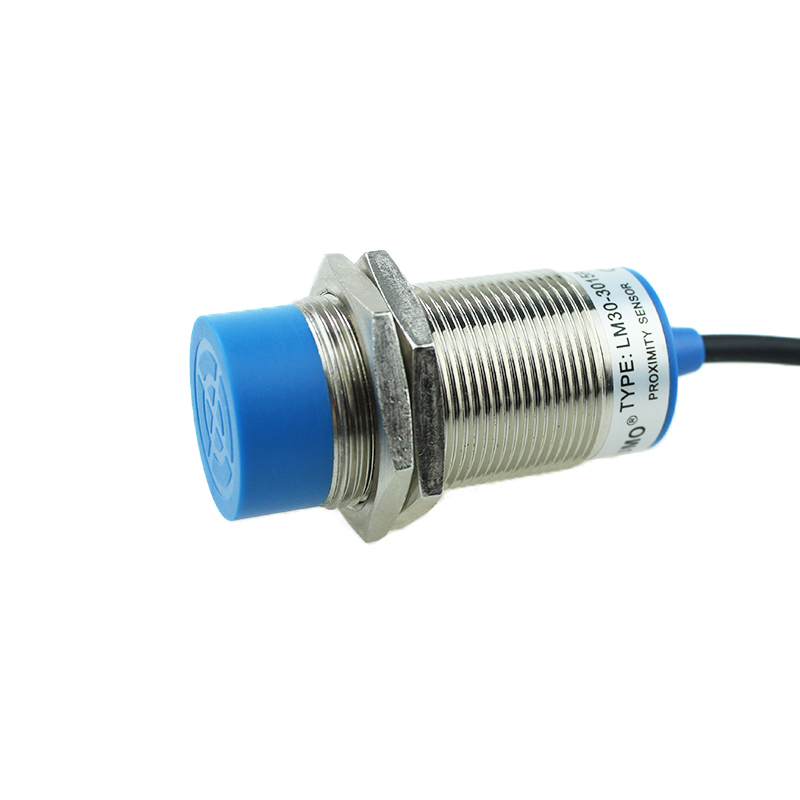

LM30-3015PA (1) LM30-3015PA (2)


LM30
