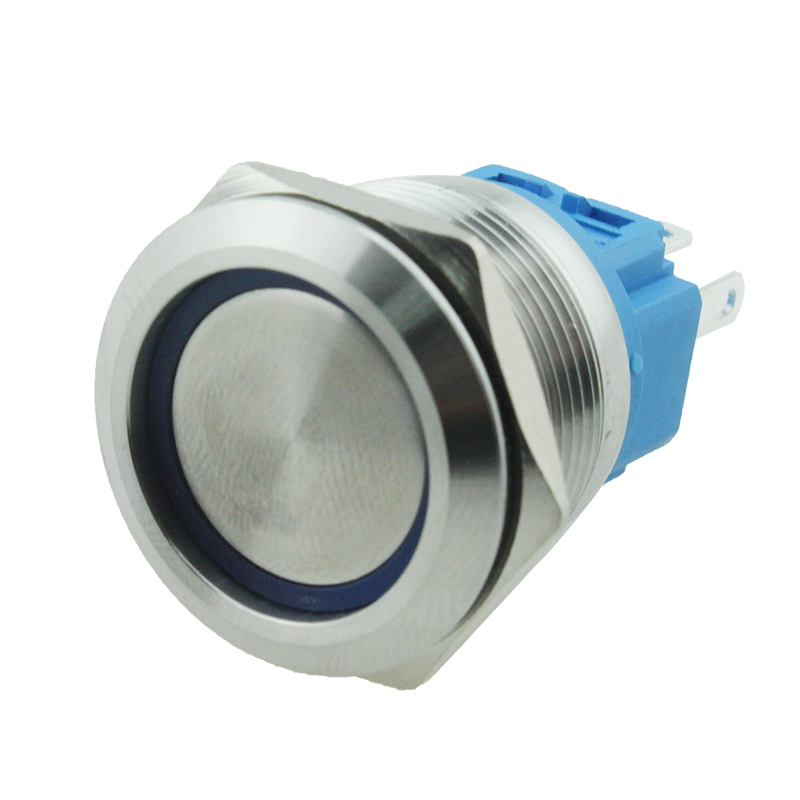

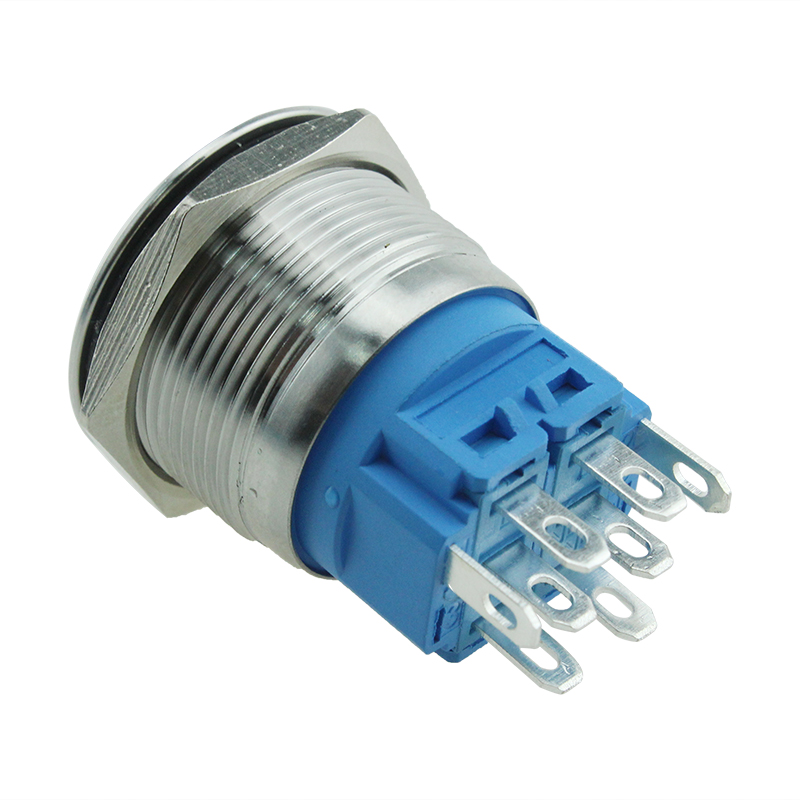

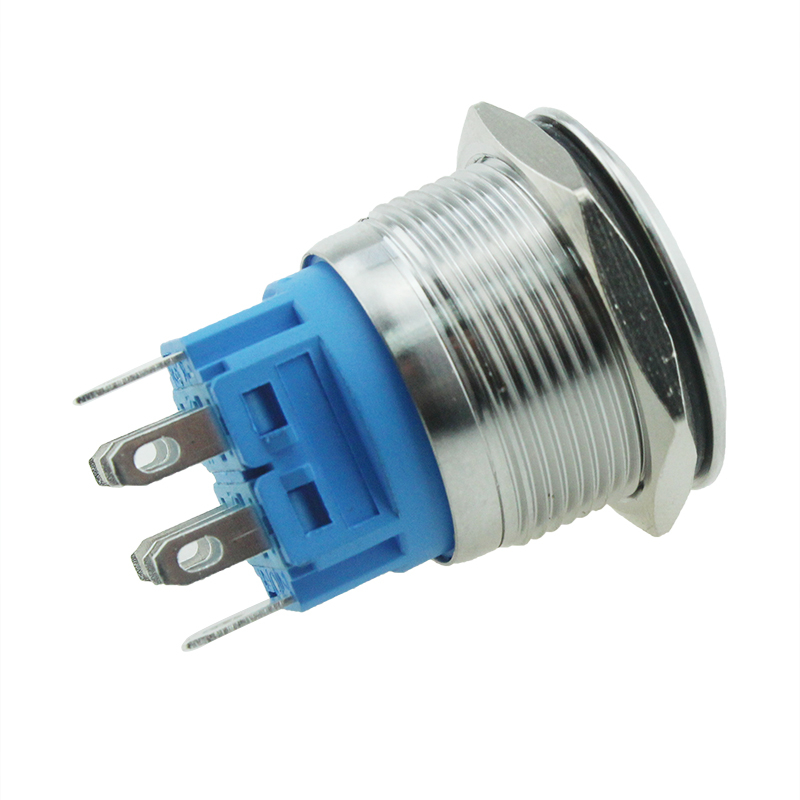

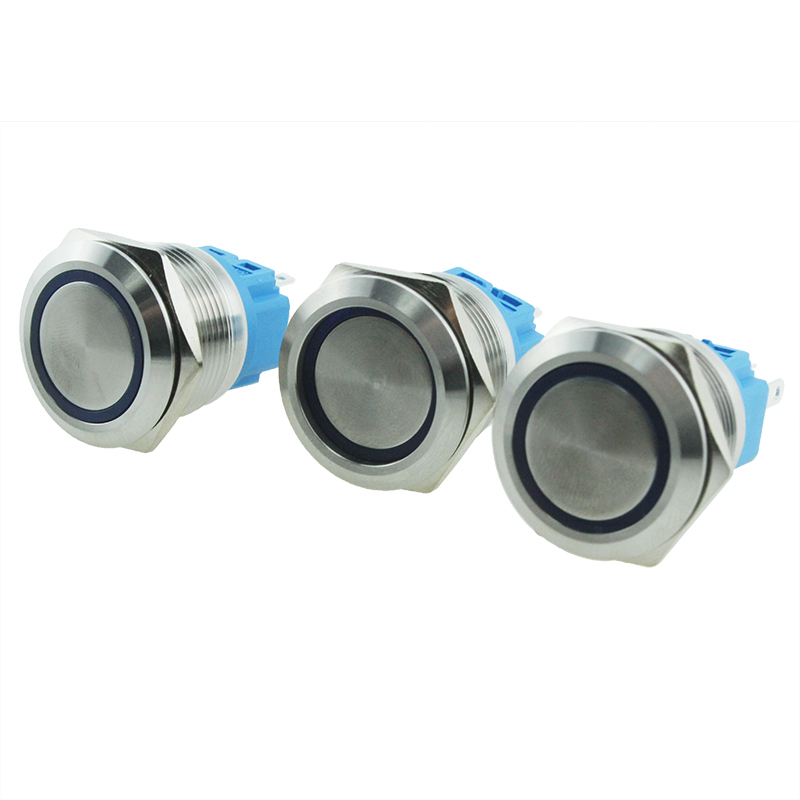

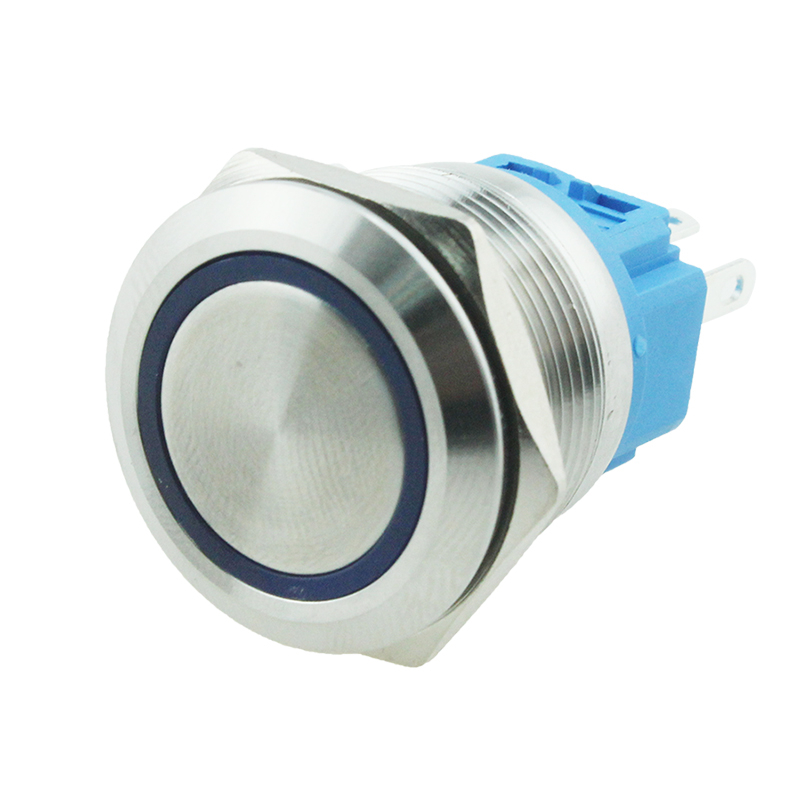

ABS22 IP67 22mm Stainless Steel Maintain Waterproof Ring Led Illuminated Metal Push Button Switch

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
Availability:
Inquire Add to Basket

  • ABS22S-P22-E-B-5Z

ABS

Size

Material

Head type

Connection mode

Lamp type

Lamp color

Lamp voltage

Metal Switch

06mm

C:Chromium plated brass

P:flat

11:1NO1NOC

D:Center point

R:Red

AC/DC

08mm

G:High

1:1NO/1NC (Welding)

G:Green

3V

12mm

Q:Ball

E:Ring lamp

Y:Yellow

6V

16mm

A:Zinc alloy plated chromium

M:Mushroom

0:Two bit terminal

B:Blue

12V

19mm

C:Power mark

W:White

24V

22mm

00:Four bit terminal

36V

25mm

S:Stainless steel

T:Custom patterm

48V




110V

P:Plastics



120V



Switching Operation

Type

Diagram

sign

Explanation

1NO

 metal push button (1) metal push button (2)

Double breakpoint slow moving contact switch with two terminals

1NO 1NC

 metal push button (1) metal push button (2)

Single breakpoint snap change contact switch with three terminals

1NO 1NC

  metal push button (3) metal push button (3)

Double breakpoint snap change contact switch with four terminals





 Parameter Dimensions(mm)
Diameter φ22mm ABS22S-P22-E-B-5Z
Color R G Y O B W P
Switch Rating 5A/250VAC
Contact Configuration 2NO 2NC
Operation Type Momentary/Maintained(Z)
The Front Shape Flat
Lamp type Ring Illuminated(LED)
The Crust Material Stainless steel
IP Degree IP67,IK10
