SRC022-6

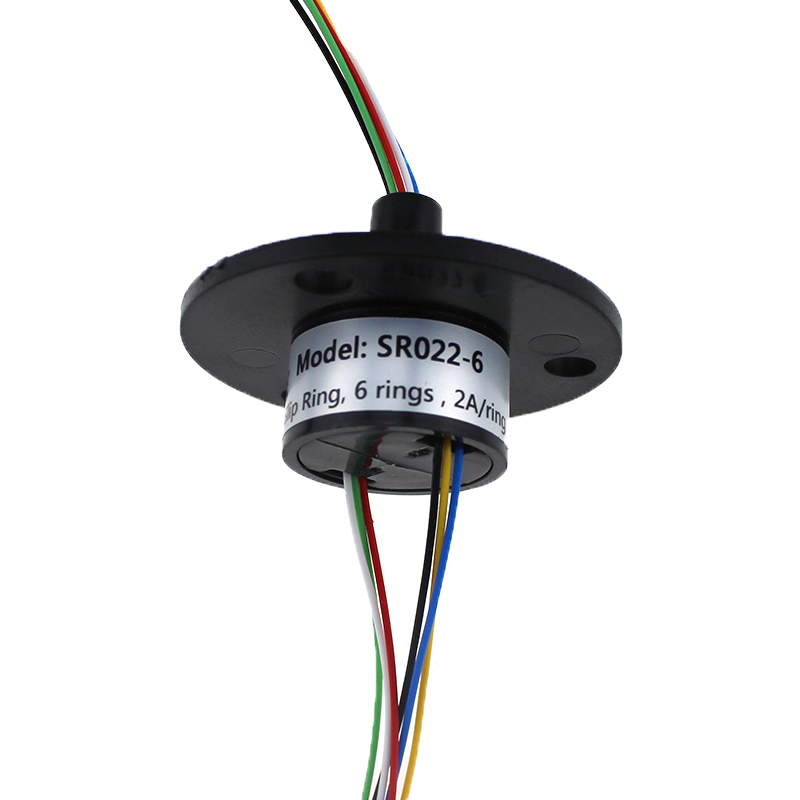

SRC022-6 Capsule Slip Ring
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
*Computer peripherals
*Display equipment Medical equipment
| Specification List | |||||
| Model | #Rings | Continous | DIA*LG | ||
| 2 | 6 | 10 | |||
| SR022 SERIES | |||||

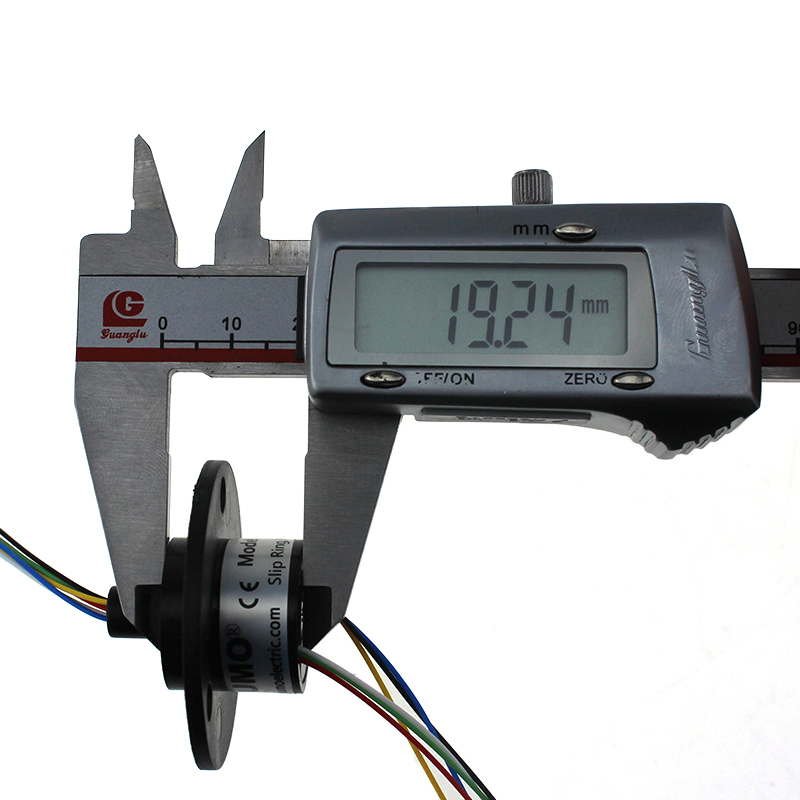

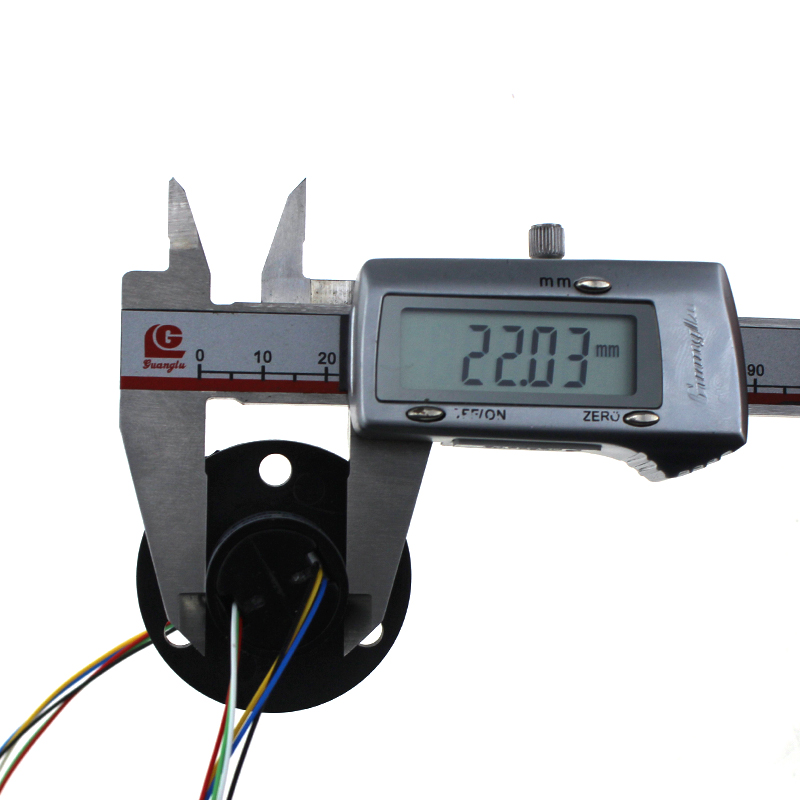

| SR022-6 | 6 | 6 | φ22*19 | ||
| SR022-12 | 12 | 12 | φ22*28 | ||
| SR022-12-2P/2S | 4 | 2 | 2 | φ22*28 | |
| SR022-15 | 15 | 2 | φ22*29.5 | ||
| SR022-18 | 18 | 18 | φ22*33.4 | ||
| SR022-18-3P | 3 | 3 | φ22*33.4 | ||
| SR022-24 | 24 | 24 | φ22*41.2 | ||
| SR-022-24-4P/6S | 10 | 6 | 4 | φ22*41.2 | |
| Mechanical data | |||||
| Specification | Unit | ||||
| Operate Speed | 250 rpm | ||||
| Temperature range | -20℃~+80℃ | ||||
| Contact material surface | Gold - gold | ||||
| The steel bearing | The precise small steel ball bearing | ||||
| Electric data | |||||
| Specification | Unit | ||||
| Voltage | 240VDC-240VAC | ||||
| Currrent | Standard 2A 2 rings per ring combined with 4A | ||||
| Lead size | Colour coded FPE insulated lead wires | ||||
| Standard Lead length | 250mm | ||||
| High pot | 500VAC@60Hz 60S | ||||
| Insulation Resistance | 1000MΩ/500VDC | ||||
| Dynamic contact Resistance | <0.01Ω | ||||
