Model explanation of proximity switch:

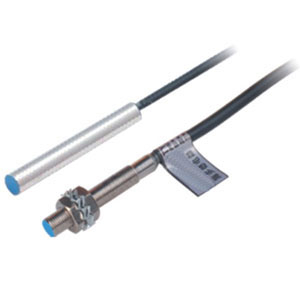

LM4/LM5 M4 M5 Proximity Switch Inductive Sensor

No.	Composition	Code and definition
1	Switch category	LM:inductance type CM:capacitance type SM:Hall type AM:safety explosion-proof type XM:mimic linear type HM:reed type


2	Outward appearance code	□：cylinder type F □：angular column type and plane installation type
3	Working voltage	30:6-36VDC 310:5-24VDC 320:12-60VDC 20:90-250VAC 210:24-250VAC 220:380VAC 40:12-240VDC/24-240AC 50:Special voltage


4	Detection distance	01:1mm 05:5mm 10:10mm
5	Output form	N:three-wire DC NPN output P:three-wire DC PNP output L:two-wire DC output □:AC two-wire output W:AC three-wire output J:Relay contact output NP:NPN+PNP double output
6	Output state	A:(ON)Normally open(NO) B:(NC)Normally close(NC) C:(NO+NC)normally open+normally close(NO+NC) MU:Mimic voltage MI:Mimic current
7	Subsidiary functions	T:with aviation connector Y:water proof,oil proof I:special requirement H:high temp resistane R:ring type

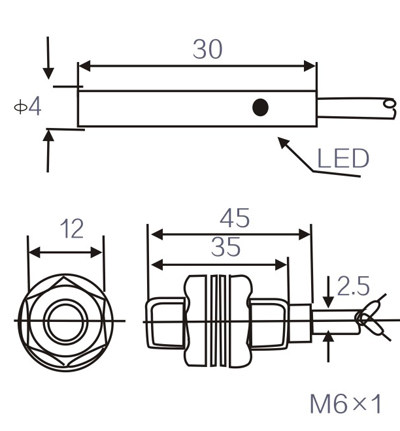

OVERALL DIMENSIONS
	DETECTION DISTANCE 0.8mm/lmm
F l u s h	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO	LM4-300.8NA/LM5-300INA
			NC
			NO+NC
		PNP	NO	LM4-300.8PA/LM5-300IPA
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE
F l u s h	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR Relay
Output voltagc dropDC/AC				(NPN PNP)<3V, 2wires system <3.9V; AC <10V
Consumption current				DC12<8mA, DC24V<15mA、AC<10mA
Standard detected object				6X6X1(A3 iron)
Repeated precision				0.01
DC/AC respond frequency				500Hz
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
