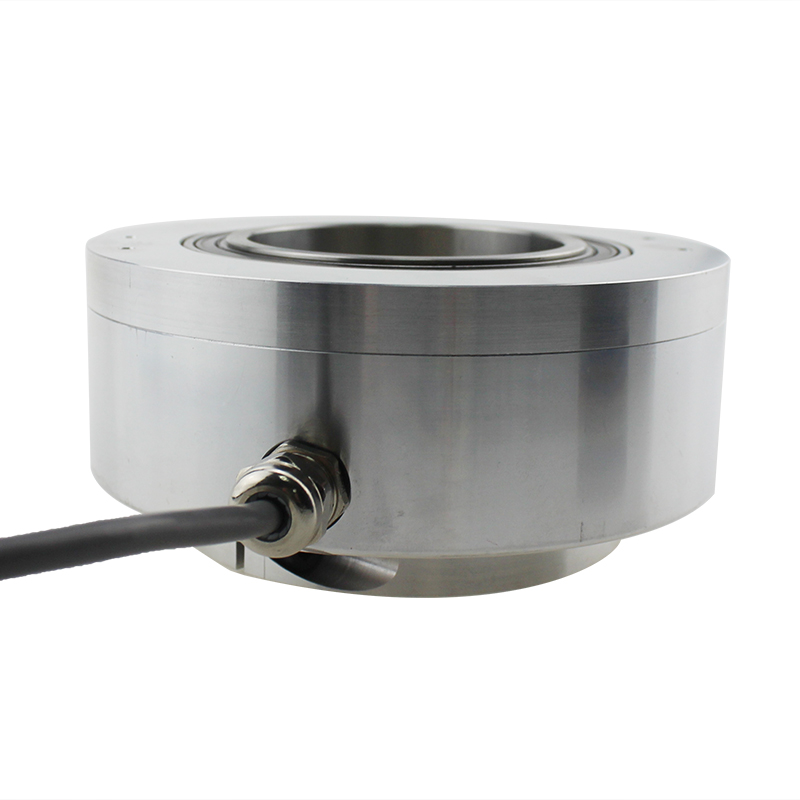

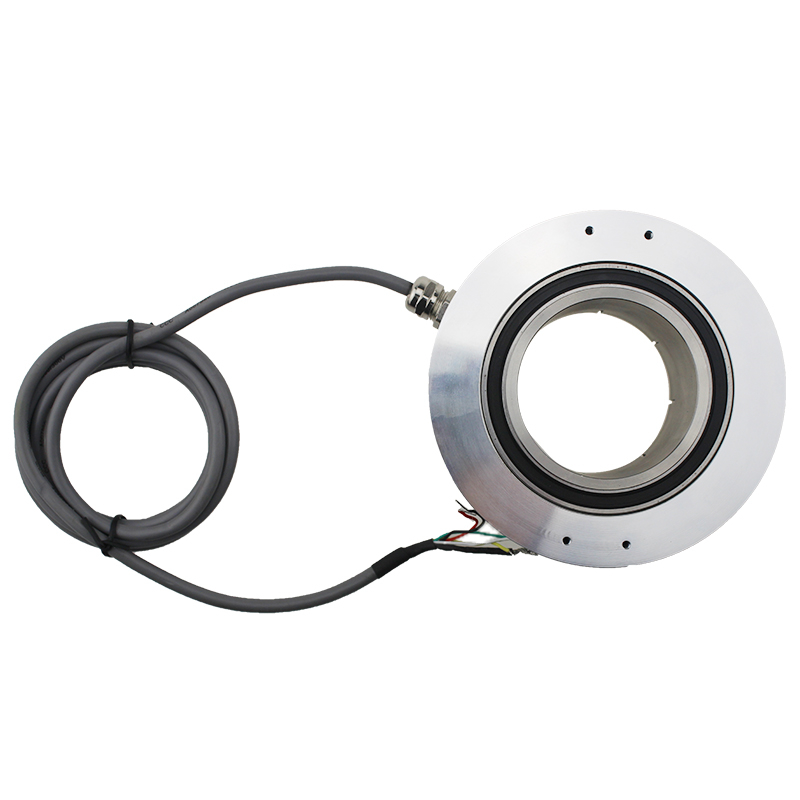

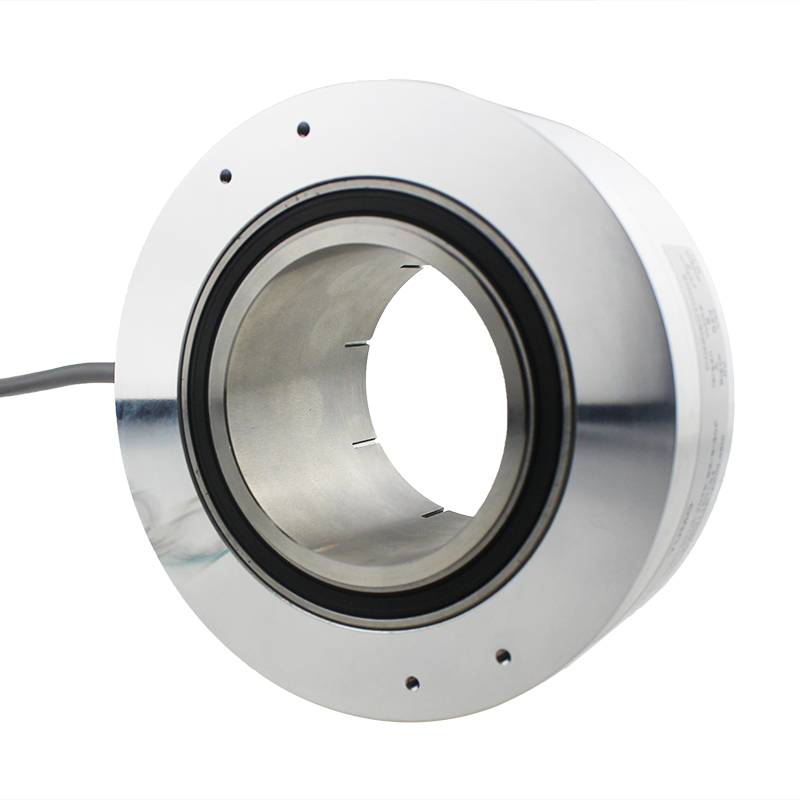

IHA12060-501G-2048-BZ-5-30F
Application
Used in area of automatic control, measurements, robotic X-Y labor and printing and packing.
Features
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Multiple ways of wiring connection.
Tchnical Specifications
| Model NO. | IHA12060-501G-2048-BZ-5-30F |
| Supply Voltage | 5-30VDC |
| Output form | Push-Pull NPN+PNP |
| Output singal | A,B,Zphase |
| Pulses | 2048P/R |
| Cable lead out | Rubber edge output |
| Protection grade | IP50 |
| Housing diameter | 120mm |
| Hollow diameter | 60mm |
Application
Used in area of automatic control, measurements, robotic X-Y labor and printing and packing.
Features
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Multiple ways of wiring connection.
Tchnical Specifications
| Model NO. | IHA12060-501G-2048-BZ-5-30F |
| Supply Voltage | 5-30VDC |
| Output form | Push-Pull NPN+PNP |
| Output singal | A,B,Zphase |
| Pulses | 2048P/R |
| Cable lead out | Rubber edge output |
| Protection grade | IP50 |
| Housing diameter | 120mm |
| Hollow diameter | 60mm |
