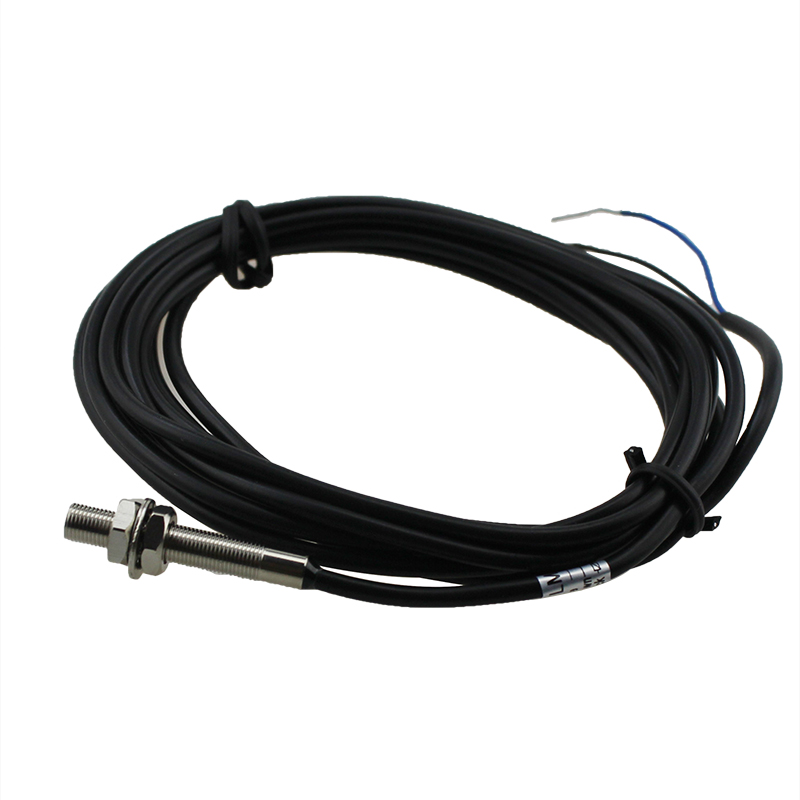

LM05-3001PA 1mm Detection Distance PNP NO Output Waterproof Proximity Sensor


compact volume
high precision repeated location
diversified exterior structures
good performance of anti-interference
many output forms
Availability:
Inquire Add to Basket

  • LM05-3001PA

                LM05-3001PA 1mm Detection Distance PNP NO Output Inductive Proximity Switch

Main Features

  • compact volume

  • high precision repeated location

  • diversified exterior structures

  • good performance of anti-interference

  • many output forms

  • high on-off frequency

  • wide voltage range

  • dust proof, vibtation proof, water proof and oil proof

  • with short-circuit protection and inverted connecting protection

  • long service life

 Technical Specifications

Structural category Connector type
Overall dimensions LM5
Outward Appearance code LM5
DETECTION DISTANCE 1mm
Flush

10-30 VDC

 PNP NO LM5-3001PA
Output current 200mA
Output voltage drop DC/AC DC≤3V  AC≤10V
Consumption current DC≤15mA AC≤10mA
Standard detected object 6*6*1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz
Working environment temperature –25℃~70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Insulation resistance 50MΩ
Shell material Metal
Protection grade IEC standard IP67
Altemative model at home and abroad
