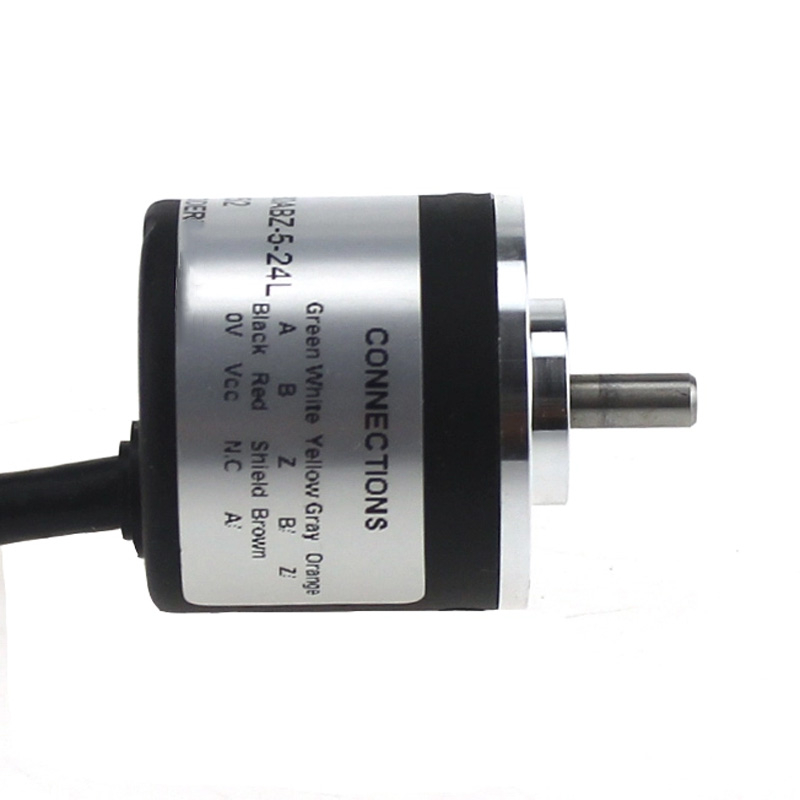

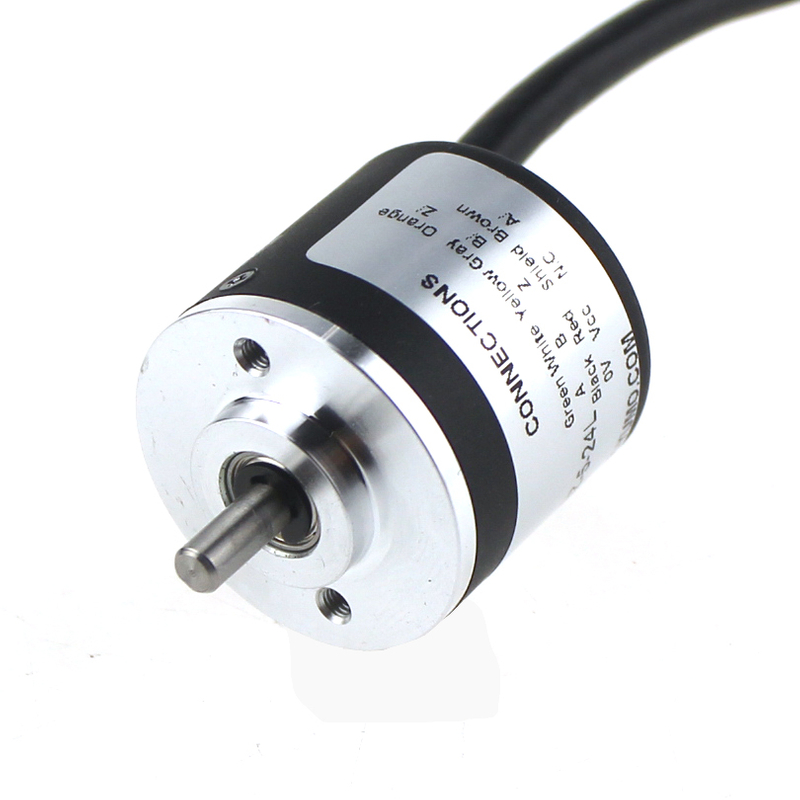

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder from China manufacturer

You are here: Home » Rotary Encoder » Shaft Encoders » ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

PRODUCTS CATEGORY

Model:
ISC2504

Product Description

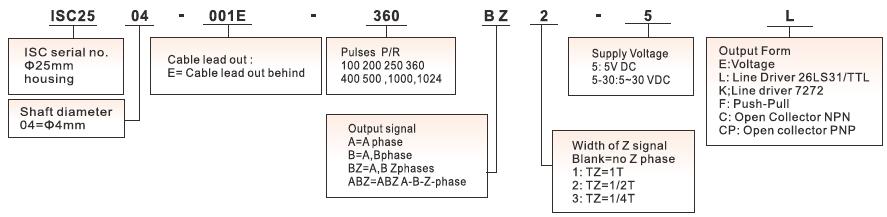

Ordering information

Note

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option

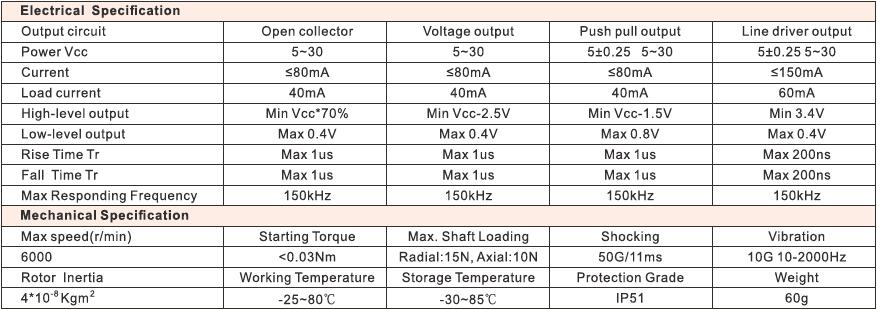

Technical Specification

Connection Table

Signal	A	B	Z	A(-)	B(-)	Z(-)	Vcc	GND
Color	Green	White	Yellow	Brown	Grey	Orange	Red	Black

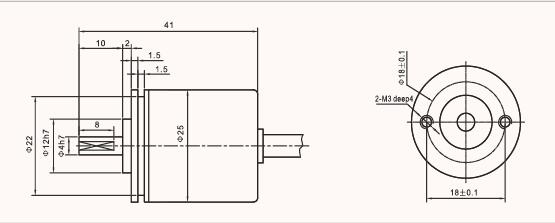

Dimension

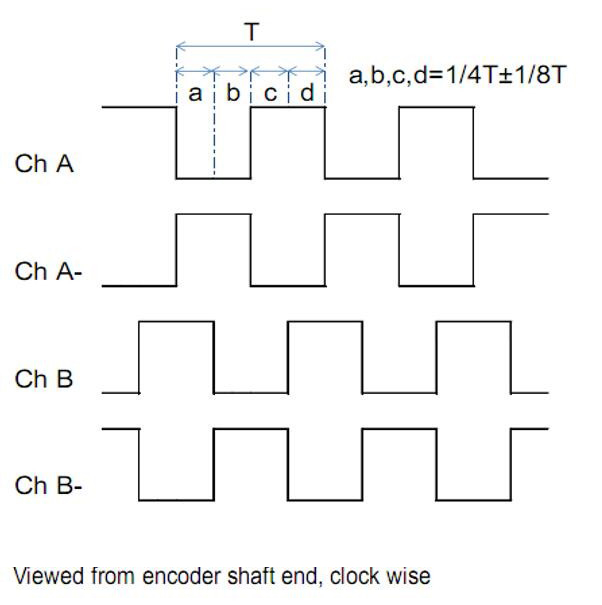

Output Waveform
