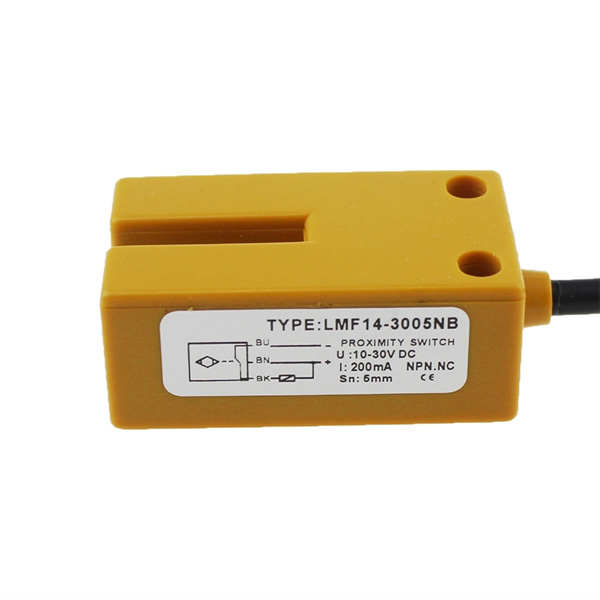

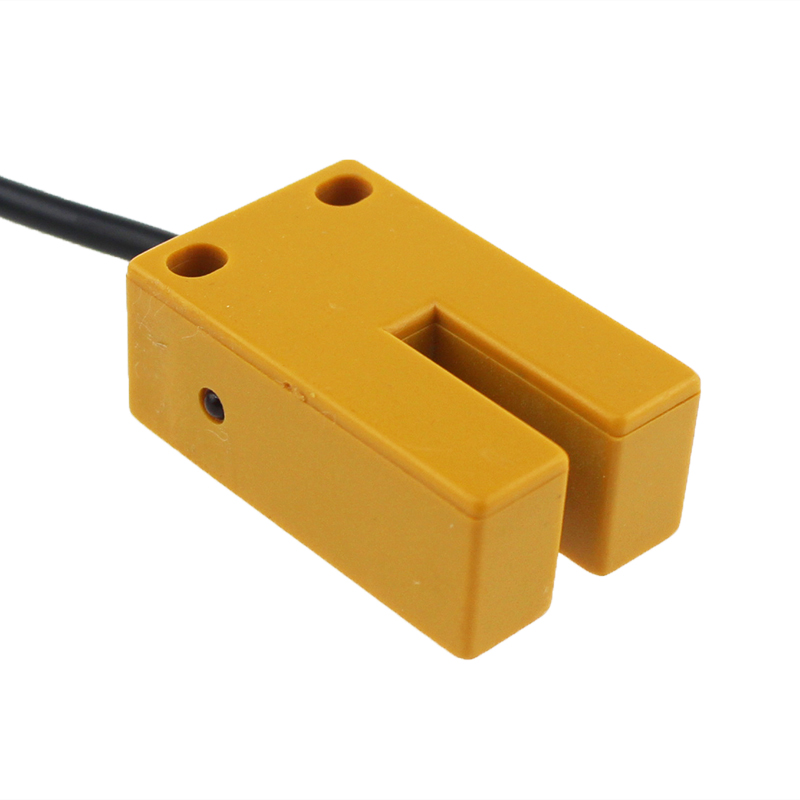

LMF14-3005NB
Applications
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dust proof, vibration proof, water proof and oil proof
With short-circuit protection and inverted connecting protection
Long service life
Datasheet
| Structural category | Angular column type | |||

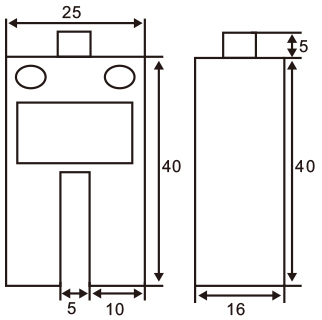

| Overall dimensions |  | |||
| Detection distance | 5MM | |||
| Non-Flush | DC10-30V
AC90-250V | NPN | NO | LMF14-3005NA |
| NC | LMF14-3005NB | |||
| NO+NC | LMF14-3005NC | |||
| PNP | NO | LMF14-3005PA | ||
| NC | LMF14-3005PB | |||
| NO+NC | LMF14-3005PC | |||
| two wire system | NO | LMF14-3005LA | ||
| NC | LMF14-3005LB | |||
| Controllable silicon | NO | LMF14-2005A | ||
| NC | LMF14-32005B | |||
| Output current | DC | 200mA | ||
| Relay | 300mA/1A | |||
| Output voltage drop | DC<3V , AC<10V | |||
| Consumption current | DC<15mA , AC<10mA | |||
| Standard detected object | 18*18*1(A3 Iron) | |||
| Repeated precision | 0.05 | |||
| Response Frequency | 500Hz/10Hz | |||
| Working environment temperature | -25℃ ~+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Plastic | |||
| Protection grade | IEC Standard IP67 | |||
