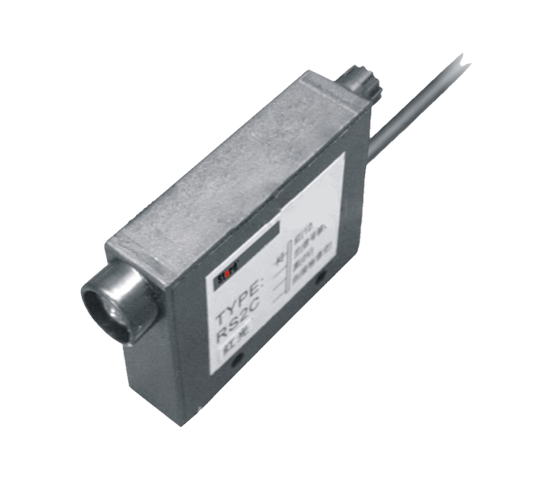

RS2C-N11 Color Mark Sensor

Small light sport,adapt to precise positioning in the case of defocusing and jittering. High working frequency,precise positioning for the fast moving marks. Use synchronic technology,strong ability to resist optical interference. With coaxial design,can be reliably used for aluminum foil and other reflective films. High sensitivity,color resolution is above gray scale of grade 16. With act on lighting/act on darken functions optical.
Availability:
Inquire Add to Basket

  • RG2C

RG2C series of color-sensor

Small light sport,adapt to precise positioning in the case of defocusing and jittering.
High working frequency,precise positioning for the fast moving marks.
Use synchronic technology,strong ability to resist optical interference.
With coaxial design,can be reliably used for aluminum foil and other reflective films.
High sensitivity,color resolution is above gray scale of grade 16.

With act on lighting/act on darken functions optical.


Technical Parameters
 Type                                      RS2C-N11
working frequency 2000Hz
detection range 9mm
power voltage 12-24V
source red,green,blue,and white
spot 1.5mm
power output NPN（output），100mA
circuit protection Power reverse connection protection,output short-circuit protection
the temperature （save)-30℃~100℃，（work）0~60℃
size 68*50*16mm

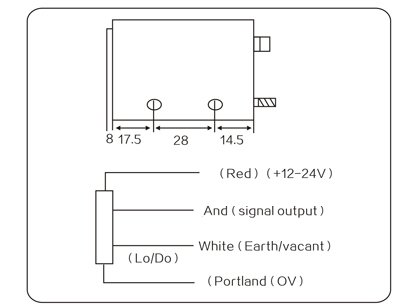

Size appearance






Previous:
Next:

RANDOM PRODUCTS

YMF6215 15mm 62mm flange Solid Shaft Incremental Rotary Encoder
YMF6215 15mm 62mm flange Solid Shaft Incremental Rotary Encoder
LMF37 Inductive proximity sensors
LMF37 Inductive proximity sensors
Single Disc LD2 encoder coupling
Single Disc LD2 encoder coupling
CM24 M24 capacitance proximity switch sensor
CM24 M24 capacitance proximity switch sensor
ISC3004-001G-200B-12-24C Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
ISC3004-001G-200B-12-24C Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
HKT5620 Servo Motor 1024ppr Encoder Dc Motor Optical Small Mini Rotary Encoder Rotary Shaft Encoder
HKT5620 Servo Motor 1024ppr Encoder Dc Motor Optical Small Mini Rotary Encoder Rotary Shaft Encoder
19mm 12V Green Led Waterproof Stainless Steel Metal Push Button
19mm 12V Green Led Waterproof Stainless Steel Metal Push Button
60mm 1000ppr 5-30V DC Hollow Shaft Incremental Rotary Encoder
60mm 1000ppr 5-30V DC Hollow Shaft Incremental Rotary Encoder
LR-D-D15L20 8*8 Hole Diameter Thread Type Flexible Shaft Rotary Encoder Clamp Elastic Coupling
LR-D-D15L20 8*8 Hole Diameter Thread Type Flexible Shaft Rotary Encoder Clamp Elastic Coupling
Control Box Push Buttons 2 Position stay put Standard handle Direct supply 220/240V Bule Bulb LAY5-BK2665
Control Box Push Buttons 2 Position stay put Standard handle Direct supply 220/240V Bule Bulb LAY5-BK2665
JS22F flat head white ring lamp stainless steel 22mm metal push button Blue metal button
JS22F flat head white ring lamp stainless steel 22mm metal push button Blue metal button
General Push Button Connector for 19mm Switch
General Push Button Connector for 19mm Switch
NP2-A OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR 40/63A 80~350VAC
NP2-A OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR 40/63A 80~350VAC
LM30-3015LA Detection Distance 15mm Proximity Switch Sensor
LM30-3015LA Detection Distance 15mm Proximity Switch Sensor

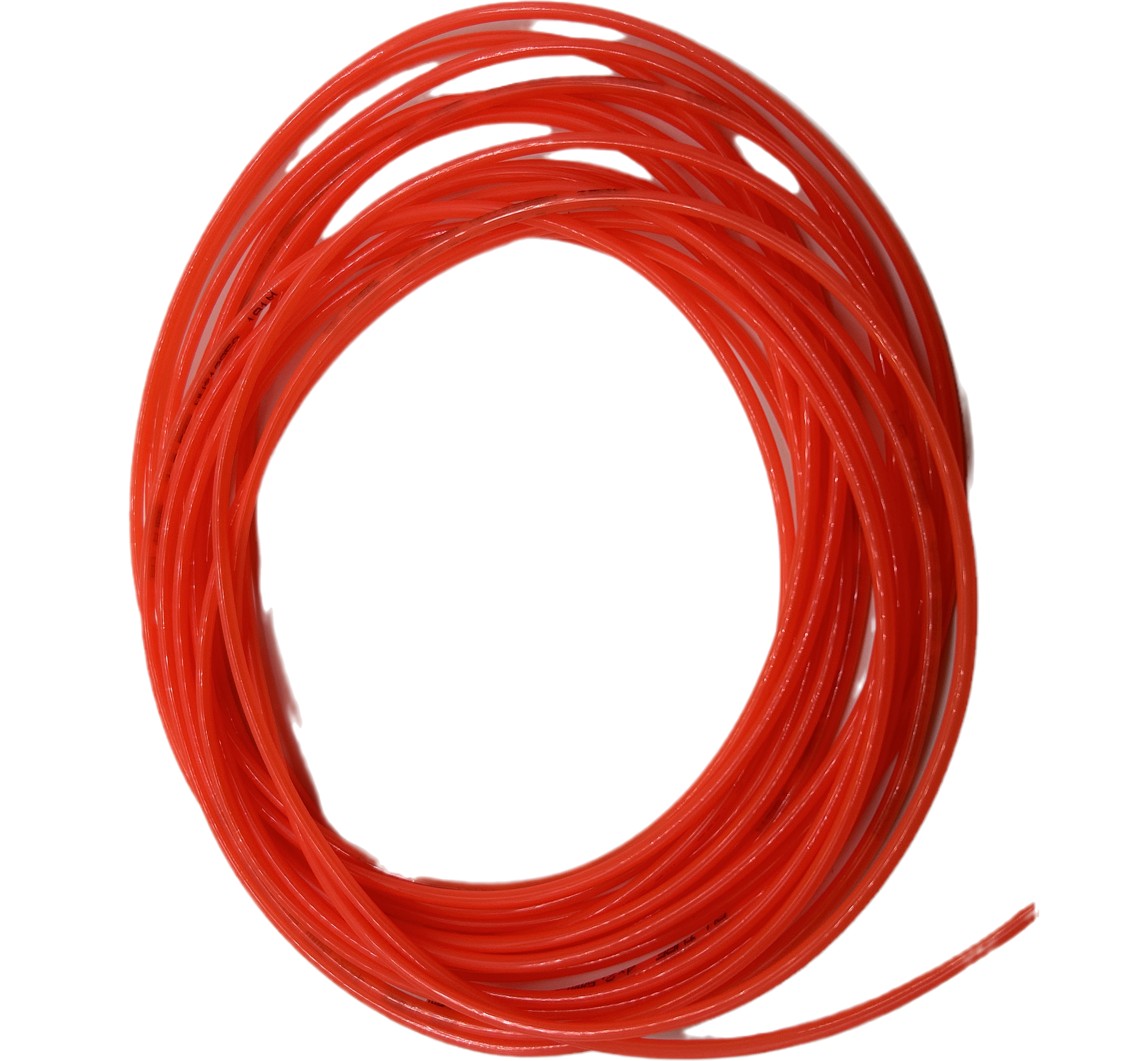

Polyurethane Tube Hose Pipe Pneumatic Pipe PU Hose Pu air hose 4 * 2.5 Orange 10 meters
