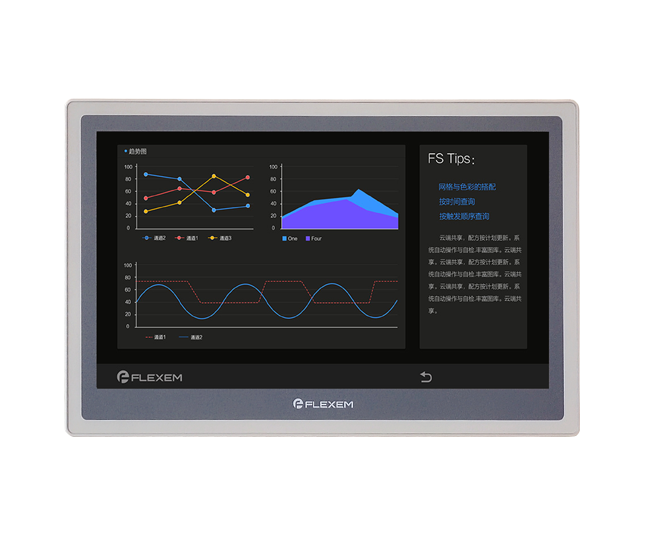

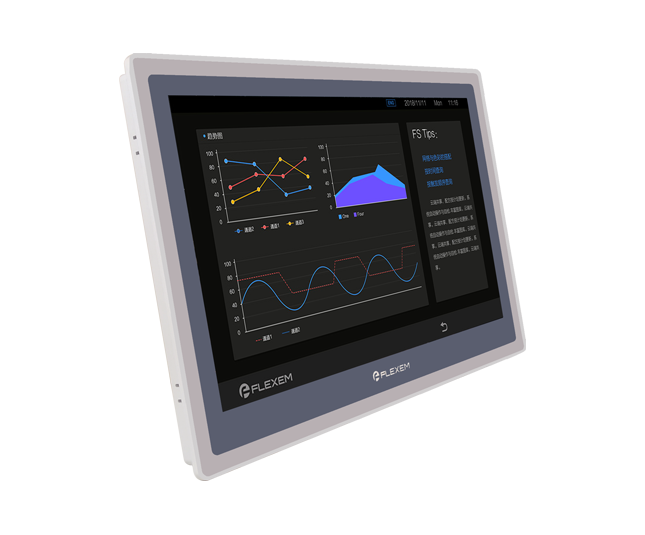

Flexem FE9156M HMI Human Machine Interface 15.6” 16:9 TFT LCD Resistive Touchscreen

Flexem FE9156M high-performance touchscreen, featuring a 15.6" resistive touchscreen, gray metal enclosure, high-definition high-brightness full-view display, 1920x1080 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 2 Ethernet ports, provides a high-performance touch-and-control solution.
Availability:
Inquire Add to Basket

  • FE9156M

  • FLEXEM

  • Hardware

  • Display 15.6” 16:9 TFT LCD
    LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85'
    Resolution 1920×1080
    Colors 16-bit
    Brightness 250 cd/m²
    Touch Panel 4-wire industrial resistive touchscreen
    CPU 4-core 1.2G Cortex-A53 processor
    Memory 8GB EMMC Flash + 1GB DDR3
    Ethernet Port 2* 10M/100M self-adaptive
    USB Port 1 USB slave 2.0 port, 1 USB host 2.0 port
    Program Download Method USB slave / Flash drive / Ethernet
    Serial Port COM1: RS232/RS485/RS422; COM2: RS485/RS422; COM3: RS232

  • Electrical

  • Rated Power < 18W
    Rated Voltage DC24V, operational range: DC 18V~28V
    Power Protection Power isolation module with lightning surge protection
    Power Interruption Tolerance < 5mS
    Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

  • Environmental

  • Operating Temperature 0~50℃
    Storage Temperature -20~60℃
    UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight)
    Environmental Humidity 10~90%RH (non-condensing)
    Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes)
    Cooling Method Natural air cooling

  • Mechanical

  • Protection Level IP65 (with flush panel cabinet installation), Rear: IP20
    Enclosure Material Aluminum alloy
    Cutout Dimensions 380mm×245mm
    Dimensions 394mm×256mm×36mm
    Weight About 2250g
  • Display 15” 4:3 TFT LCD
    LCD Viewing Angles (T/B/L/R) 80'/80'/80'/80'
    Resolution 1024×768
    Colors 65K
    Brightness 400 cd/m²
    Touch Panel 4-wire industrial resistive touchscreen
    CPU 4-core 1.2G Cortex-A53 processor
    Memory 8GB Flash + 1GB DDR3
    Ethernet Port 1* 10M/100M self-adaptive
    USB Port 1* USB slave 2.0 port, 1* USB host 2.0 port
    Program Download Method USB slave / Flash drive / Ethernet / SD Card
    Serial Port COM1/COM2: RS232/RS485/RS422; COM3/COM4: RS232

  • Electrical

  • Rated Power < 15W
    Rated Voltage DC24V, operational range: DC 18V~28V
    Power Protection Power isolation module with lightning surge protection
    Power Interruption Tolerance < 5mS
    Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

  • Environmental

  • Operating Temperature -20~70℃
    Storage Temperature -30~80℃
    UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight)
    Environmental Humidity 10~90%RH (non-condensing)
    Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes)
    Cooling Method Natural air cooling

  • Mechanical

  • Protection Level Front: IP65 (with flush panel cabinet installation), Rear: IP20
    Enclosure Material Aluminum alloy + Powder coated galvanized sheet
    Cutout Dimensions 360mm×272mm
    Dimensions 394mm×297mm×48.3mm
    Weight About 4300g
  • Display 12.1” 4:3 TFT LCD
    LCD Viewing Angles (T/B/L/R) 80'/80'/80'/80'
    Resolution 1024×768
    Colors 65K
    Brightness 370 cd/m²
    Touch Panel 4-wire industrial resistive touchscreen
    CPU 4-core 1.2G Cortex-A53 processor
    Memory 8GB Flash + 1GB DDR3
    Ethernet Port 1* 10M/100M self-adaptive
    USB Port 1 USB slave 2.0 port, 1 USB host 2.0 port
    Program Download Method USB slave / Flash drive / Ethernet / SD Card
    Serial Port COM1/COM2: RS232/RS485/RS422; COM3/COM: RS232

  • Electrical

  • Rated Power < 15W
    Rated Voltage DC24V, operational range: DC 18V~28V
    Power Protection Power isolation module with lightning surge protection
    Power Interruption Tolerance < 5mS
    Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

  • Environmental

  • Operating Temperature -20~70℃
    Storage Temperature -30~80℃
    UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight)
    Environmental Humidity 10~90%RH (non-condensing)
    Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes)
    Cooling Method Natural air cooling

  • Mechanical

  • Protection Level Front: IP65 (with flush panel cabinet installation), Rear: IP20
    Enclosure Material Aluminum alloy + Powder coated galvanized sheet
    Cutout Dimensions 291mm×219mm
    Dimensions 310mm×240mm×48.5mm
    Weight About 2710g
  • Display 10.1” 16:9 TFT LCD
    LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85'
    Resolution 1024×600
    Colors 16-bit
    Brightness 400 cd/m²
    Touch Panel 4-wire industrial resistive touchscreen
    CPU 4-core 1.2G Cortex-A53
    Memory 1GB DDR3 + 8GB Flash
    Ethernet Port 2* 10M/100M self-adaptive
    USB Port 1* USB slave 2.0 port, 1* USB host 2.0 port
    Program Download Method USB slave/ Flash drive / Ethernet
    Serial Port COM1: RS232/RS485/RS422; COM2: RS485/RS422; COM3:RS232

  • Electrical

  • Rated Power < 10W
    Rated Voltage DC24V, operational range: DC 9V~28V
    Power Protection Lightning surge protection
    Power Interruption Tolerance < 5mS
    Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

  • Environmental

  • Operating Temperature -10~60℃
    Storage Temperature -20~70℃
    UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight)
    Environmental Humidity 10~90%RH (non-condensing)
    Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes)
    Cooling Method Natural air cooling

  • Mechanical

  • Protection Level IP65 (with flush panel cabinet installation), Rear: IP20
    Enclosure Material Aluminum alloy
    Cutout Dimensions 260mm×202mm
    Dimensions 274mm×214mm×39mm
    Weight About 1450g

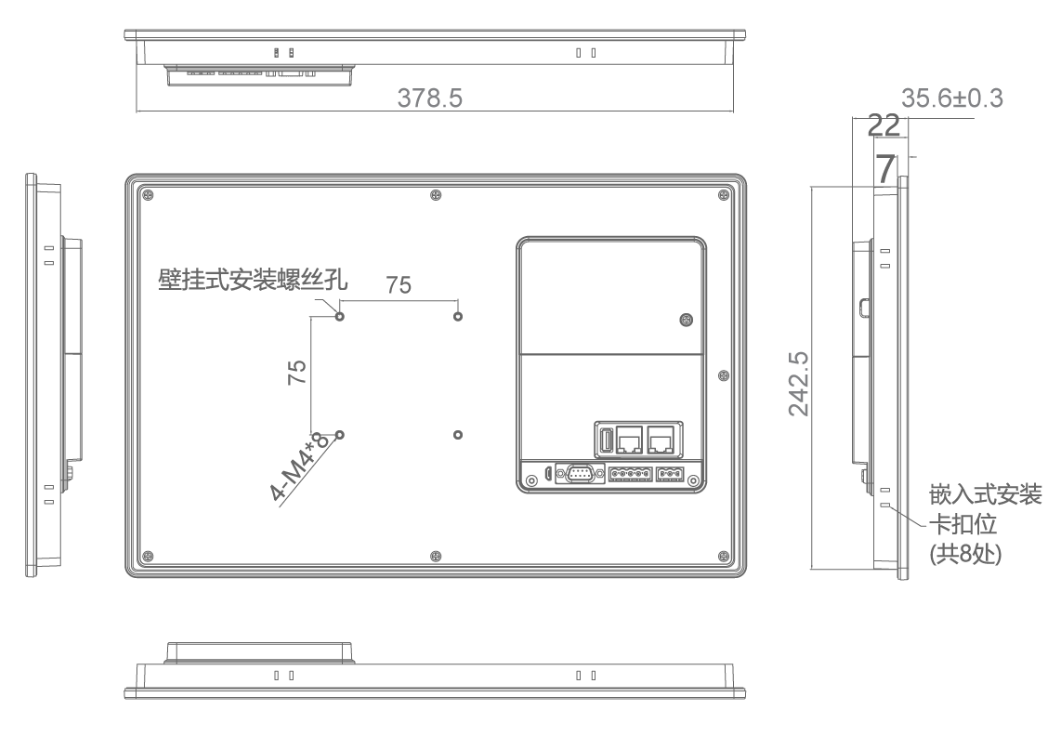

diameter
