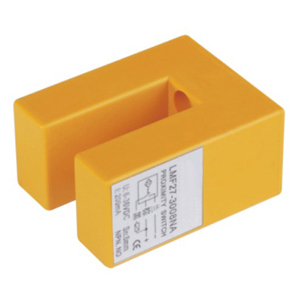

LMF27 Angular Column inductive sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
  • LMF27

LMF27 Angular Column inductive proximity switch

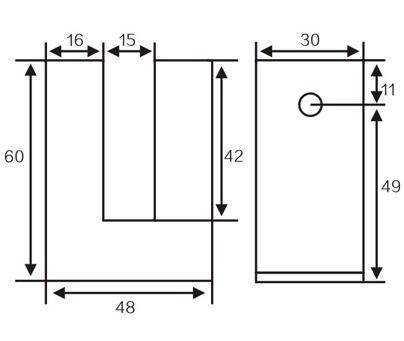

                         OVERALL DIMENSIONS


Non-flush Detection distance 8mm

NPN NO 3008NA

NC 3008NB
DC NO+NC 3008NC
6 PNP NO 3008PA
NC 3008PB
36 NO+NC 3008PC
V two wire system NO 3008LA

NC 3008LB
AC SRC Control label silicon  NO 2008A
90 NC 2008B
~250 NO+NC
V Relay output
Control output DC 200mA
SCR/Relay 300mA
Output voltage dropDC/AC DC<3V , DC(Two wire system)<3.9V , AC<10V
Consumption current DC < 15mA, AC < 10mA
Standard detected object 18×18×1(A3 iron)
Repeated precision 0.05
DC/AC Response frequency 500Hz/10Hz
Working environment temperature –25℃~70℃
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IEC standard IP67
Altemative model at home and abroad
