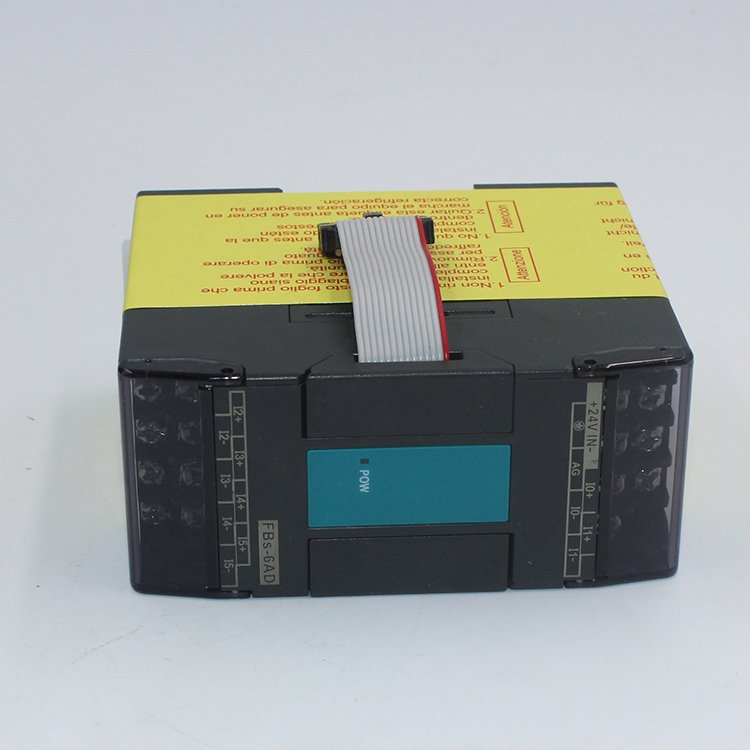

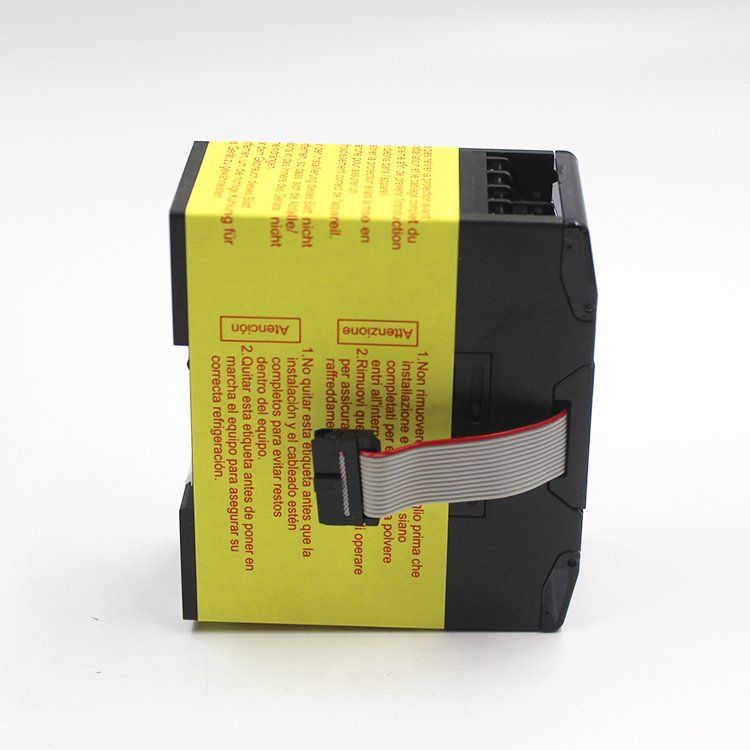

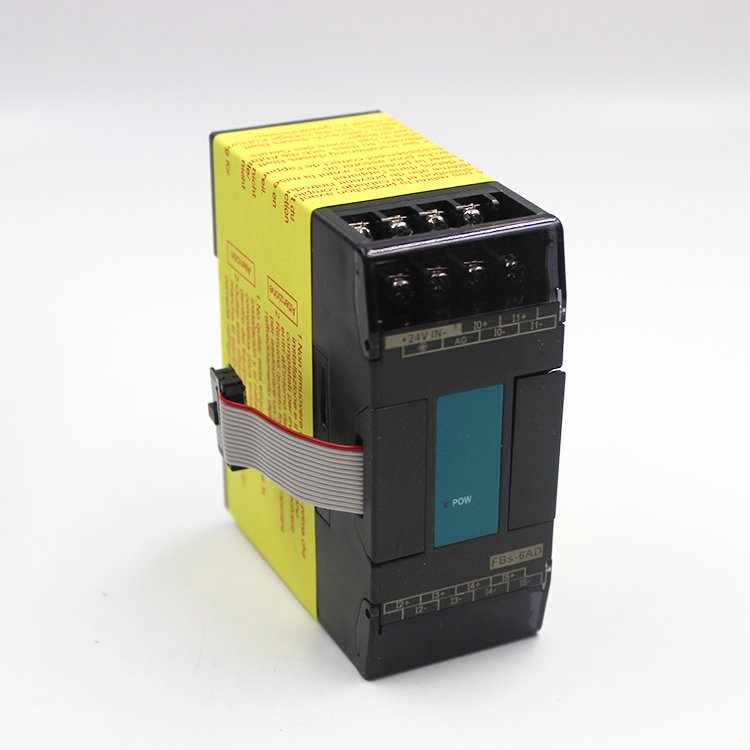

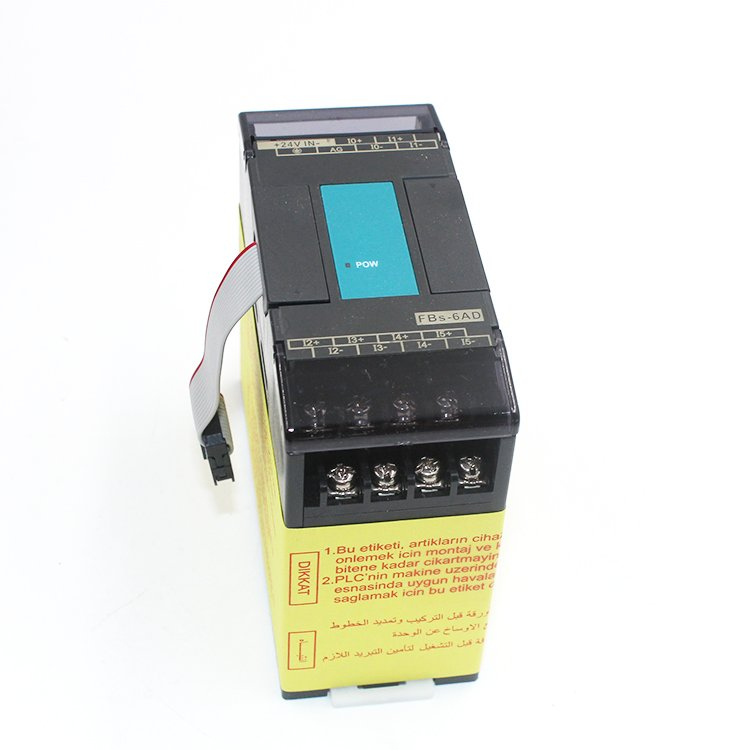

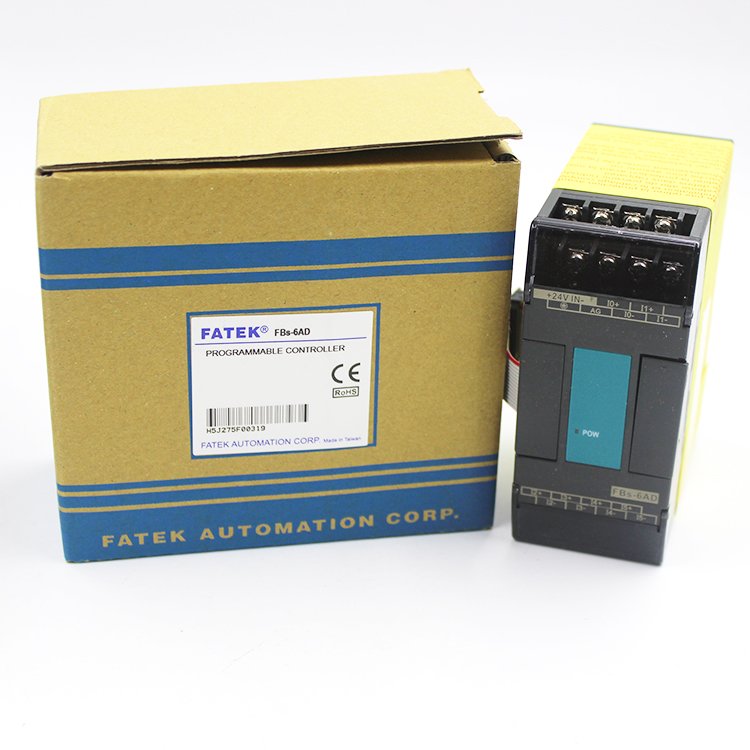

FBs-6AD
Technical Parameters:
Specification | FBs-6AD | |
Input point | 6 points | |
Output point | - | |
Input/Output value | -8192~8191 or 0~16383 (14-bit) | |
Input/output | Bipolar | Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA |
Signal range | Unipolar | Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA |
Maximum resolution | Voltage: 0.3mV (5V/16384) Current: 0.61μA (10mA/16384) | |
Accuracy | ±1% | |
Conversion time | Conversion once for each scan | |
Maximum input signal | Input voltage: ±15V Input current: ±30mA | |
Allowable load range | - | |
Input impedance | Input voltage: 63.2KΩ Input current: 250Ω | |
Isolation method | Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel | |
Power consumptio | 24VDC -15%/+20%, 3.2W max. | |
Wiring mechanism | 7.62 mm fixed terminal block | |
Model
FBs-2DA | 2 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20m |
FBs-4A2D | 4 channels, 14-bit analog input (same specification as 6AD)+2 channels, 14-bit analog output (same specification as 2DA) combo module |
FBs-6AD | 6 channels, 14-bit analog input module (-10~10V, 0~10V or -20~20mA, 0~20m |
FBs-6RTD | 6 channels, RTD temperature input module with 0.1°C resolution. |
FBs-8X | 8 points 24 VDC digital input |
FBs-8YR | 8 points relay output |
