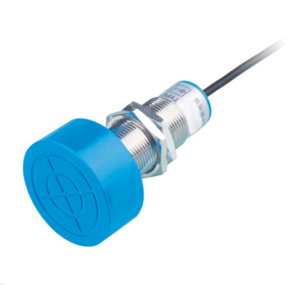

LM40

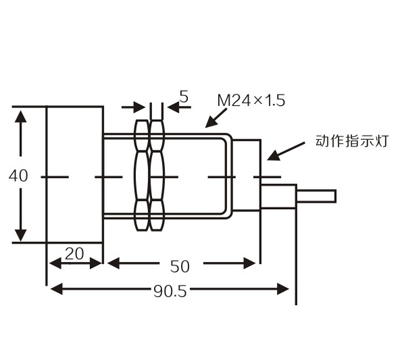

OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 20mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LM40-3020NA |
| NC | LM40-3020NB | |||
| NO+NC | LM40-3020NC | |||
| PNP | NO | LM40-3020PA | ||
| NC | LM40-3020PB | |||
| NO+NC | LM40-3020PC | |||
two wire system | NO | LM40-3020LA | ||
| NC | LM40-3020LB | |||
| SCR Control- lable silicon | NO | LM40-2020A | ||
| NC | LM40-2020B | |||
| NO+NC | LM40-2020C | |||
| Relay output | LM40-2020JC | |||
Control output | DC | 200mA | ||
| SCR/ Relay | 300mA/1A | |||
| Output voltage dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 45X45X1(A3 iron) | |||
| Repeated precision | 0.1 | |||
| DC/AC | 100Hz/25Hz | |||
| Working environment temperature | -25℃～+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | SC-口口 | |||
OVERALL DIMENSIONS | | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 20mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LM40-3020NA |
| NC | LM40-3020NB | |||
| NO+NC | LM40-3020NC | |||
| PNP | NO | LM40-3020PA | ||
| NC | LM40-3020PB | |||
| NO+NC | LM40-3020PC | |||
two wire system | NO | LM40-3020LA | ||
| NC | LM40-3020LB | |||
| SCR Control- lable silicon | NO | LM40-2020A | ||
| NC | LM40-2020B | |||
| NO+NC | LM40-2020C | |||
| Relay output | LM40-2020JC | |||
Control output | DC | 200mA | ||
| SCR/ Relay | 300mA/1A | |||
| Output voltage dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 45X45X1(A3 iron) | |||
| Repeated precision | 0.1 | |||
| DC/AC | 100Hz/25Hz | |||
| Working environment temperature | -25℃～+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | SC-口口 | |||
