LMF33 Angular Column inductive sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
Inquire Add to Basket

  • LMF33

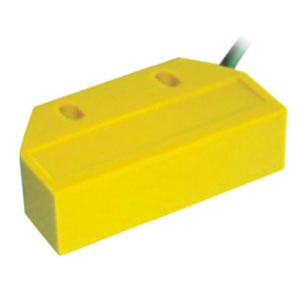

LMF33 Angular Column inductive proximity switch

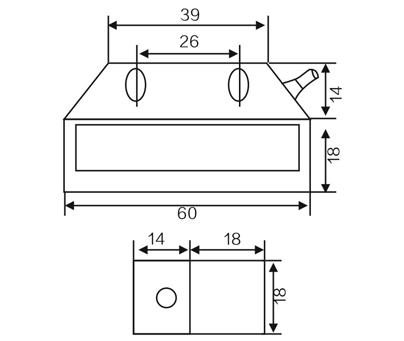

OVERALL DIMENSIONS

LMF33



   DETECTION DISTANCE                             5mm


Flush


DC10-30
VDC


AC90-250
VAC

NPN

NO

LMF33-3005NA

NC

LMF33-3005NB

NO+NC

LMF33-3005NC

PNP

NO

LMF33-3005PA

NC

LMF33-3005PB

NO+NC

LMF33-3005PC


two wire
system

NO

LMF33-3005LA

NC

LMF33-3005LB

SCR
Control-
lable
silicon

NO

LMF33-3005A

NC

LMF33-3005B

NO+NC

Relay output

 DETECTION DISTANCE                           8mm







Non-

flush


DC10-30
VDC


AC90-250
VAC

NPN

NO

LMF33-3008NA

NC

LMF33-3008NB

NO+NC

LMF33-3008NC

PNP

NO

LMF33-3008PA

NC

LMF33-3008PB

NO+NC

LMF33-3008PC

two wire
system

NO

LMF33-3008LA

NC

LMF33-3008LB

SCR
Control-
lable
silicon

NO

LMF33-3008A

NC

LMF33-3008B

NO+NC

Relay output

Controloutput

DC

SCR/ Relay

Output voltagc dropDC/AC

 DC<3V、AC<10V

Consumption current

DC<15mA、AC<10mA
