LJ8A3-2-Z/BY detection distance 2mm inductive proximity switch from China manufacturer

Model:
LJ8A3-2-Z/BY

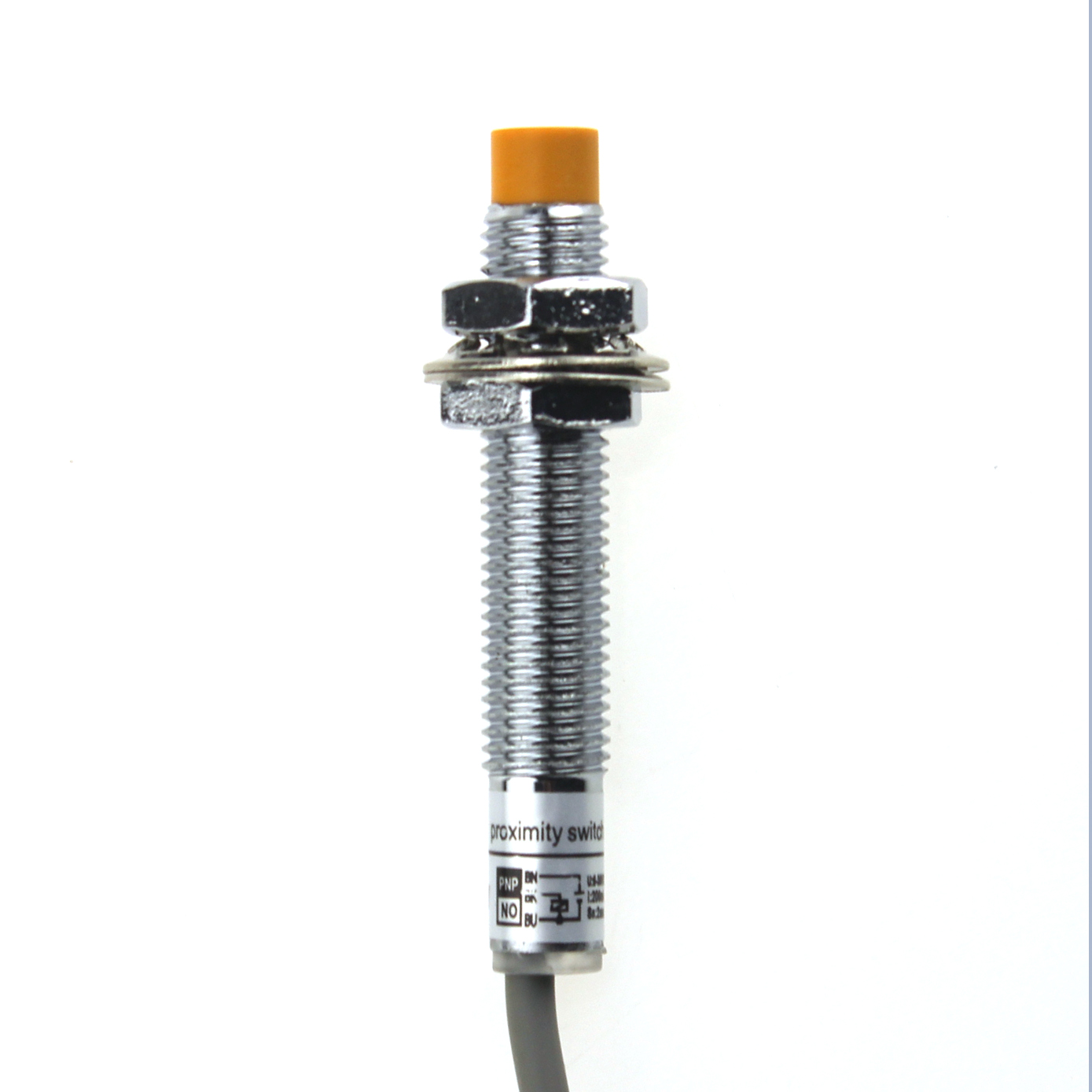

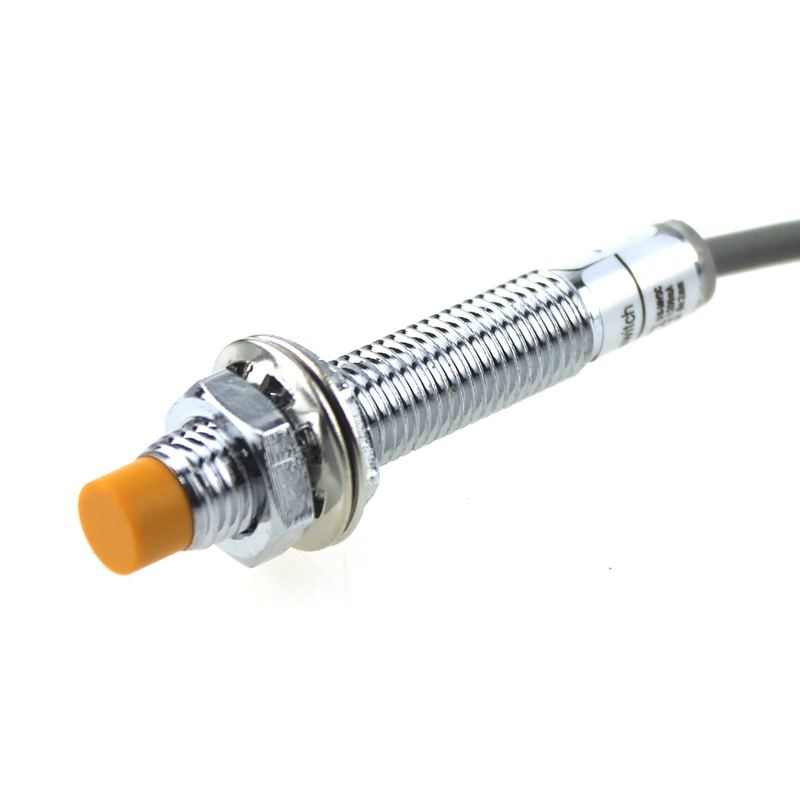

LJ8A3-2-Z/BY detection distance 2mm inductive proximity switch
Diameter 8mm cylinder inductive proximity switch , sensing range from 1mm~2mm . Also offer customized design .

Detecting rang 1mm				part no.	other part no.	Omron part no.
Flush	DC	NPN	NO	LM8-3001NA	LJ8A3-1-Z/BX	E2E-X1R5E1
	6~ 36V		NC	LM8-3001NB	LJ8A3-1-Z/AX	E2E-X1R5E2
			NO+NC	-	-
		PNP	NO	LM8-3001PA	LJ8A3-1-Z/BY	E2E-X1R5F1
			NC	LM8-3001PB	LJ8A3-1-Z/AY	E2E-X1R5F2
			NO+NC	-	-
		2 Wires	NO	LM8-3001LA	LJ8A3-1-Z/EX
		2 Wires	NC	LM8-3001LB	LJ8A3-1-Z/DX
	AC	SCR	NO	LM8-2001A	LJ8A3-1-J/EZ	E2E-X1R5Y1
		SCR	NC	LM8-2001B	LJ8A3-1-J/DZ	E2E-X1R5Y2
			NO+NC
		Relay output
Detecting rang 1.5/2mm
Non-flush	DC	NPN	NO	LM8-3002NA	LJ8A3-2-Z/BX	E2E-X2ME1
	6~ 36V		NC	LM8-3002NB	LJ8A3-2-Z/AX	E2E-X2ME2
			NO+NC	-
		PNP	NO	LM8-3002PA	LJ8A3-2-Z/BY	E2E-X2MF1
			NC	LM8-3002PB	LJ8A3-2-Z/AY	E2E-X2MF2
			NO+NC	-
		2 Wires	NO	LM8-3002LA	LJ8A3-2-Z/EX	E2E-X1D1
		2 Wires	NC	LM8-3002LB	LJ8A3-2-Z/DX	E2E-X2MD1
	AC	SCR	NO	LM8-2002A	LJ8A3-2-J/EZ	E2E-X2MY1
		SCR	NC	LM8-2002B	LJ8A3-2-J/DZ	E2E-X2MY2
	90~250V		NO+NC
		Relay output
Sensor Characteristics
Output current	DC	150mA
Output current	SCR/relay
Output voltage drop		DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V
Consumption current		DC(NPN;PNP) DC 12V 8mA;24V15mA;AC type: AC<10mA
Standard detected object		8×8×1(A3 Iron)
Repeated precision		0.01
Response Frequency		500Hz/25Hz
Working environment temperature		-25℃ ~+75℃
Insulation resistance		≥50MΩ
Shell material		Metal
Protection grade		IP67
Alternative model		E2E-X1R5
