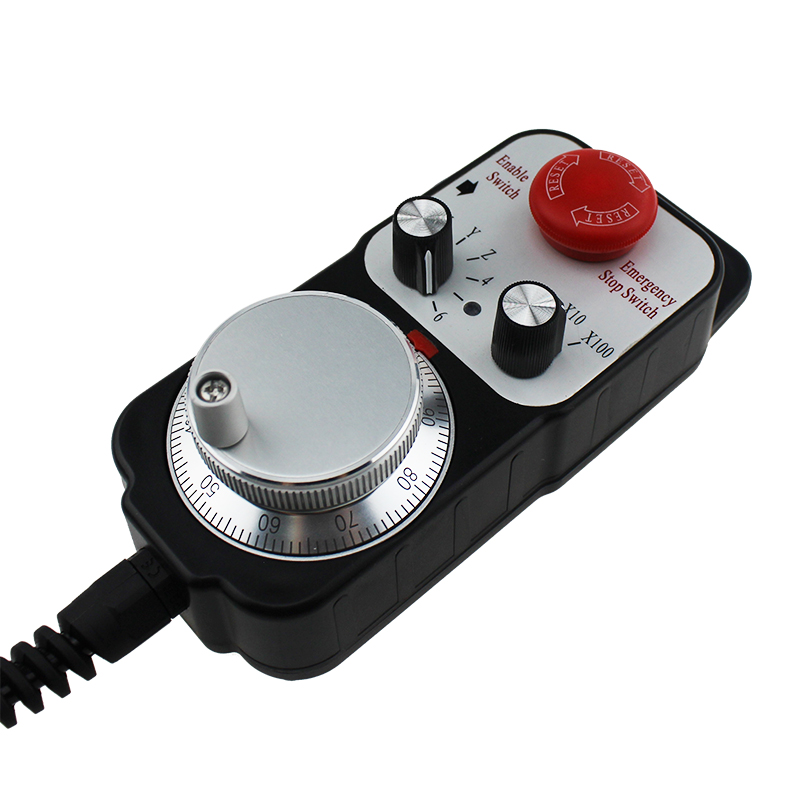

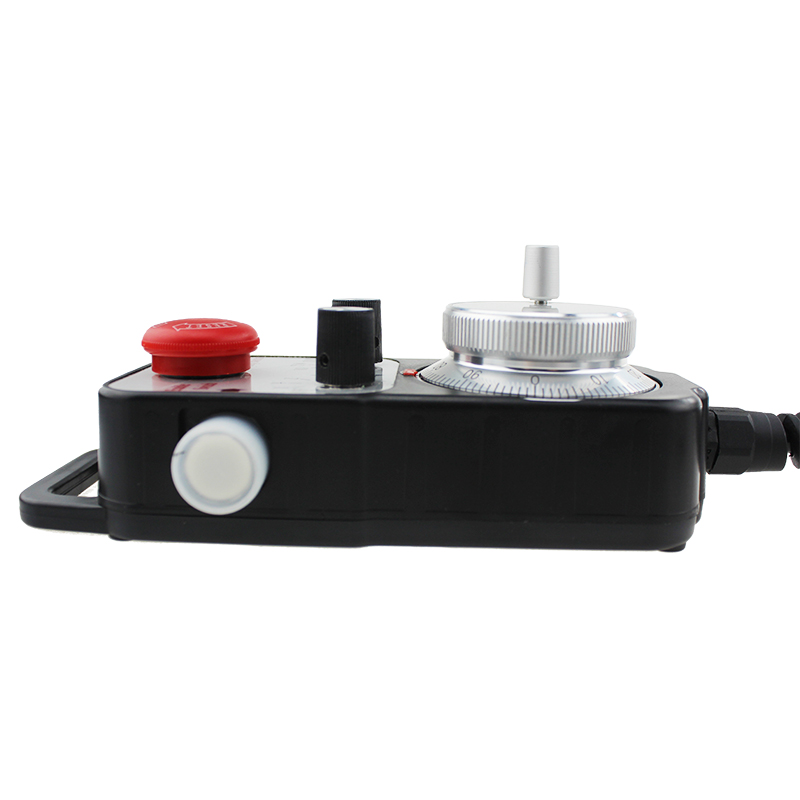

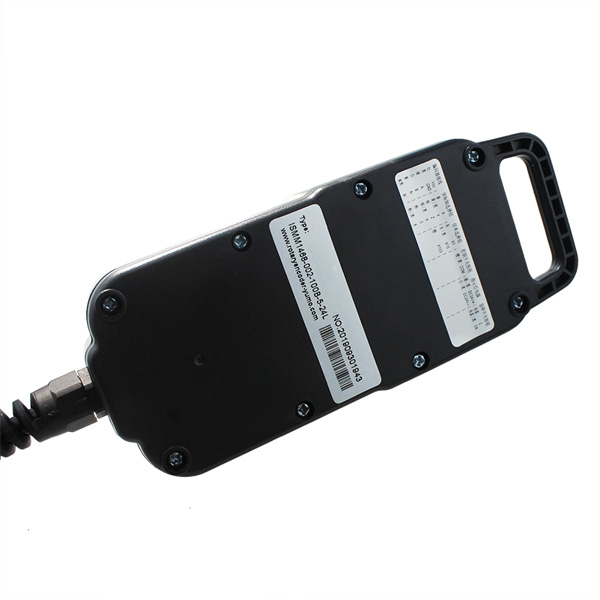

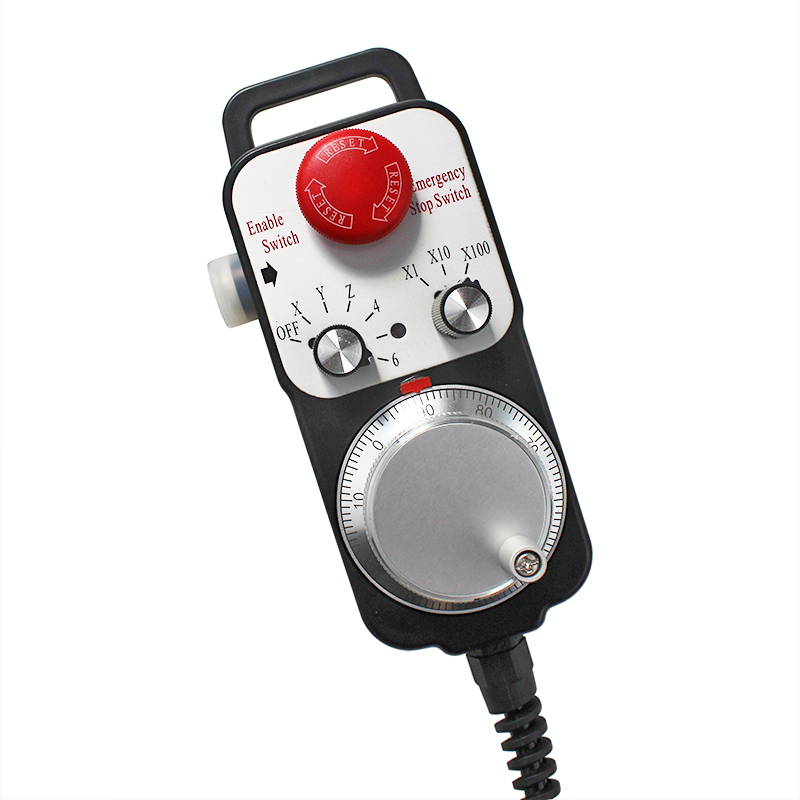

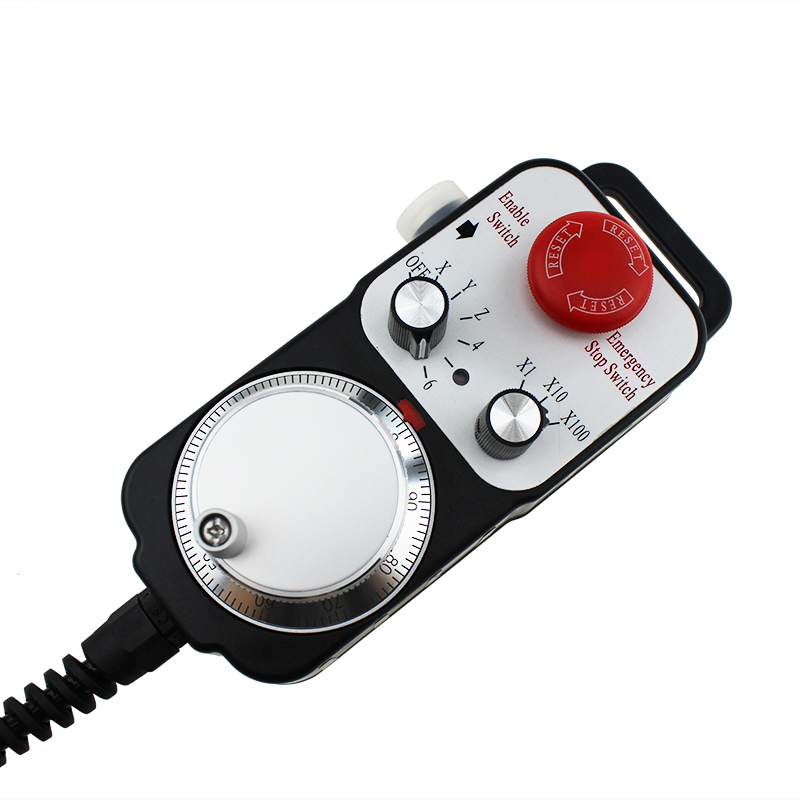

ISMM1468-002-100B-5-24L
Application
Industrial tolling machinery, zero correction of printing machinery or signal cutting , numerical control machine and etc
Features
Suitable for manual pulses input type such as CNC or milling machine

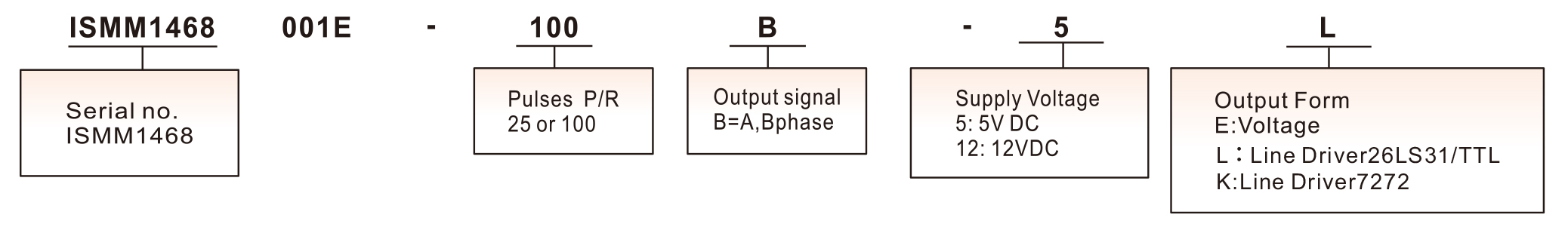

Ordering Information
Note:
1:Please contact sales representative to confirm the correctness and availability of the part number
2:Line Drive is only available with 5V DC,12VDC option
Technical Specifications:
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.2512V |
Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
Mechanical Specification | ||||
Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
600 | -25~70℃ | -25~85℃ | IP50 | 750g |
Dimensions(mm)
Connection Table
Item | Wire color | Signal | Note | |
| 1 | Red | +5v | Pulses generator MPG |
2 | Black | 0v | ||
3 | Green | A | ||
4 | White | B | ||
3*(or 17) | Purple | A- | When Line driver | |
4*(or 18) | Purple/black | B- | ||
5 | Green/black | + | Indicator | |
6 | White/black | - | ||
OFF | Axis selection | |||
7 | Yellow | X | ||
8 | Yellow/black | Y | ||
9 | Brown | Z | ||
10 | Brown/black | 4 | ||
9*(or 15) | Pink | 5 | select the 5th, 6th axis | |
10*(or 16) | Pink/black | 6 | ||
11 | Grey | X1 | Select multiple | |
12 | Grey/black | X10 | ||
13 | Orange | X100 | ||
14 | Orange/black | COM | Control switch | |
19 | Light Blue | C | Emergency button | |
20 | Light blue/black | CN | ||
Shielding |
