MT6050i
HMI (Human Machine Interface) is a medium for information exchange and mutual communication between electromechanical system's and the user. It allows the user to complete settings through touchable images or keys on the user-friendly window. This not only offer's fast and convenient control of manufacturing automation, but also has replaced traditional controlling panel's which needextensive wiring.

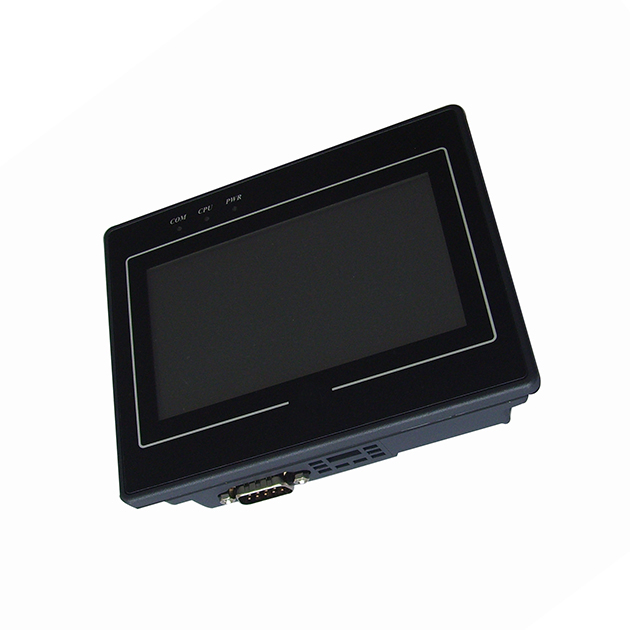

4.3inch MT6050i touch screen
Specifications
Display | 4.3" TFT |
Resolution | 480x272 |
Brightness cd/m² | 450 cd/m2 |
Contrast Ratio | 500:1 |
Back Light | LED |
Life Time t;/p> | 30,000 hr |
Touch Panel Type | 4 wires resistive type |
Storage(MB) | 128 |
RAM(MB) | 64 |
Processor | 32 bit RISC CPU 400 MHz |
CF Card Slot | N/A |
SD Card Slot | N/A |
USB Client | USB 2.0 x 1 |
Ethernet Port | N/A |
PS2 Ports | N/A |
Mini PCI | N/A |
VGA Port | N/A |
COM Port | RS232 / RS485 2W/4W |
Audio | N/A |
RTC | N/A |
Input Power | 24± 20% VDC |
Power Consumption | 250mA@24VDC |
Panel Cutout (mm) | 119x93mm |
Weight(Kg) | Approx 0.3kg |
