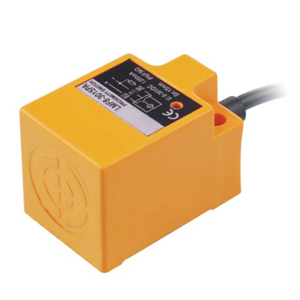

LMF8
Tecnical Parameter:
| DETECTION DISTANCE | 10MM | |||
| Flush | DC 10-30V | NPN | NO | LMF8-3010NA |
| NC | LMF8-3010NB | |||
| NO+NC | LMF8-3010NC | |||
| PNP | NO | LMF8-3010PA | ||
| NC | LMF8-3010PB | |||
| NO+NC | LMF8-3010PC | |||
| two wire system | NO | LMF8-3010LA | ||
| NC | LMF8-3010LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LMF8-2010A | |
| NC | LMF8-2010B | |||
| NO+NC | LMF8-2010C | |||
| Relay output | ||||
| DETECTION DISTANCE 15MM | ||||
| Non-Flush | DC 10-30V | NPN | NO | LMF8-3015NA |
| NC | LMF8-3015NB | |||
| NO+NC | LMF8-3015NC | |||
| PNP | NO | LMF8-3015PA | ||
| NC | LMF8-3015PB | |||
| NO+NC | LMF8-3015PC | |||
| two wire system | NO | LMF8-3015LA | ||
| NC | LMF8-3015LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LMF8-2015A | |
| NC | LMF8-2015B | |||
| NO+NC | LMF8-2015C | |||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | 500mA | |||
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V | |||
| Consumption current | DC< 15mA, AC< 10mA | |||
| Standard detected object | 45*45*1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 100HZ/15HZ | |||
| Working environment temperature | -25~+70º C | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | ||||

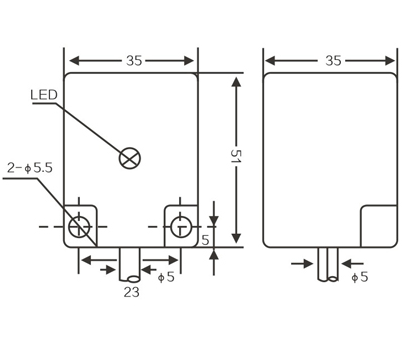

Dimension:
