TZ-93B
Tend
Technical Specifications
| Operating speed | 0.1m-0.5m/s |
| Contact resistance | 25mΩ or less |
| Applied edge resistance | Above 100MΩ (under 500VDC) |
| Insulation voltage | 400V |
| Withstand voltage | AC2500V/Umip 4KV |
| vibration | Maloperation durability:10-50Hz, 0.65mm amplitude |
| Shock | Mechanical durability :1.000m / s 2 ~ above (above 100G) |
| Maloperation durability:300m / s ~ or more (about 30G or more) | |
| Use week temperature | -30 ° C- + 70 * C |
| humidity | 95% RH |
| Service life | Machinery: 1 million times or more |
| Electrical: more than 150,000 times | |
| waterproof level | IP65 (EN60947-5-1) |
| Short circuit protection | Fuse 10A |

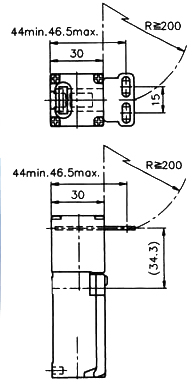

Dimensions(mm)
Technical Specifications
| Operating speed | 0.1m-0.5m/s |
| Contact resistance | 25mΩ or less |
| Applied edge resistance | Above 100MΩ (under 500VDC) |
| Insulation voltage | 400V |
| Withstand voltage | AC2500V/Umip 4KV |
| vibration | Maloperation durability:10-50Hz, 0.65mm amplitude |
| Shock | Mechanical durability :1.000m / s 2 ~ above (above 100G) |
| Maloperation durability:300m / s ~ or more (about 30G or more) | |
| Use week temperature | -30 ° C- + 70 * C |
| humidity | 95% RH |
| Service life | Machinery: 1 million times or more |
| Electrical: more than 150,000 times | |
| waterproof level | IP65 (EN60947-5-1) |
| Short circuit protection | Fuse 10A |
Dimensions(mm)
